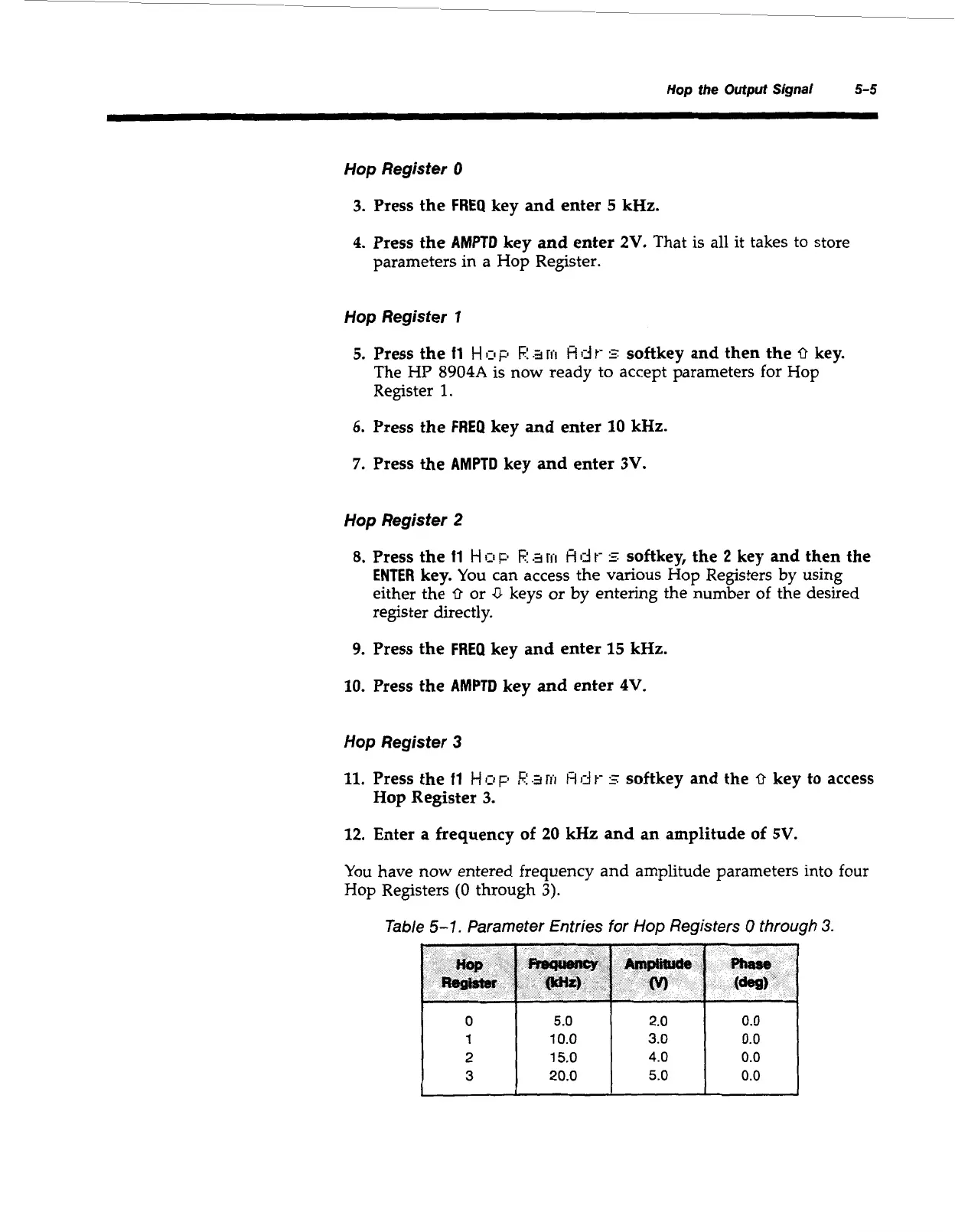

Hop the Output Signal
5-5
Hop Register
0
3.
Press the
FREQ
key and enter
5
kHz.
4.
Press the
AMPTD
key and enter
2V.
That is all it takes to store
parameters in a Hop Register.
Hop Register
7
5.
Press the
fl
H
111
p
F:
.a
rji
A
d
t-
5
softkey and then the
0
key.
The
HP
8904A
is now ready to accept parameters for Hop
Register
1.
6.
Press the
FREQ
key and enter
10
kHz.
7.
Press the
AMPTD
key and enter
3V.
Hop Register
2
8.
Press the
11
H
111
p
R
a
rji
t=l
IA
t-
5
softkey, the
2
key and then the
ENTER
key.
You can access the various Hop Registers by using
either the
f?
or
0
keys or by entering the number of the desired
register directly.
9.
Press the
FREQ
key and enter
15
kHz.
10.
Press
the
AMPTD
key and enter
4V.
Hop Register
3
11.
Press the
11
H
CI
p
E
.3
iii
RIA
t-
5
softkey and the
0
key to access
Hop
Register
3.
12.
Enter a frequency
of
20
kHz and an amplitude
of
5V.
You have now entered frequency and amplitude parameters into four
Hop Registers
(0
through
3).
Table
5-1.
Parameter Entries
for
Hop
Registers
0
through
3.
