C
HP-IB
Codes
~
Code
Listings
for
the
Hp
8904A

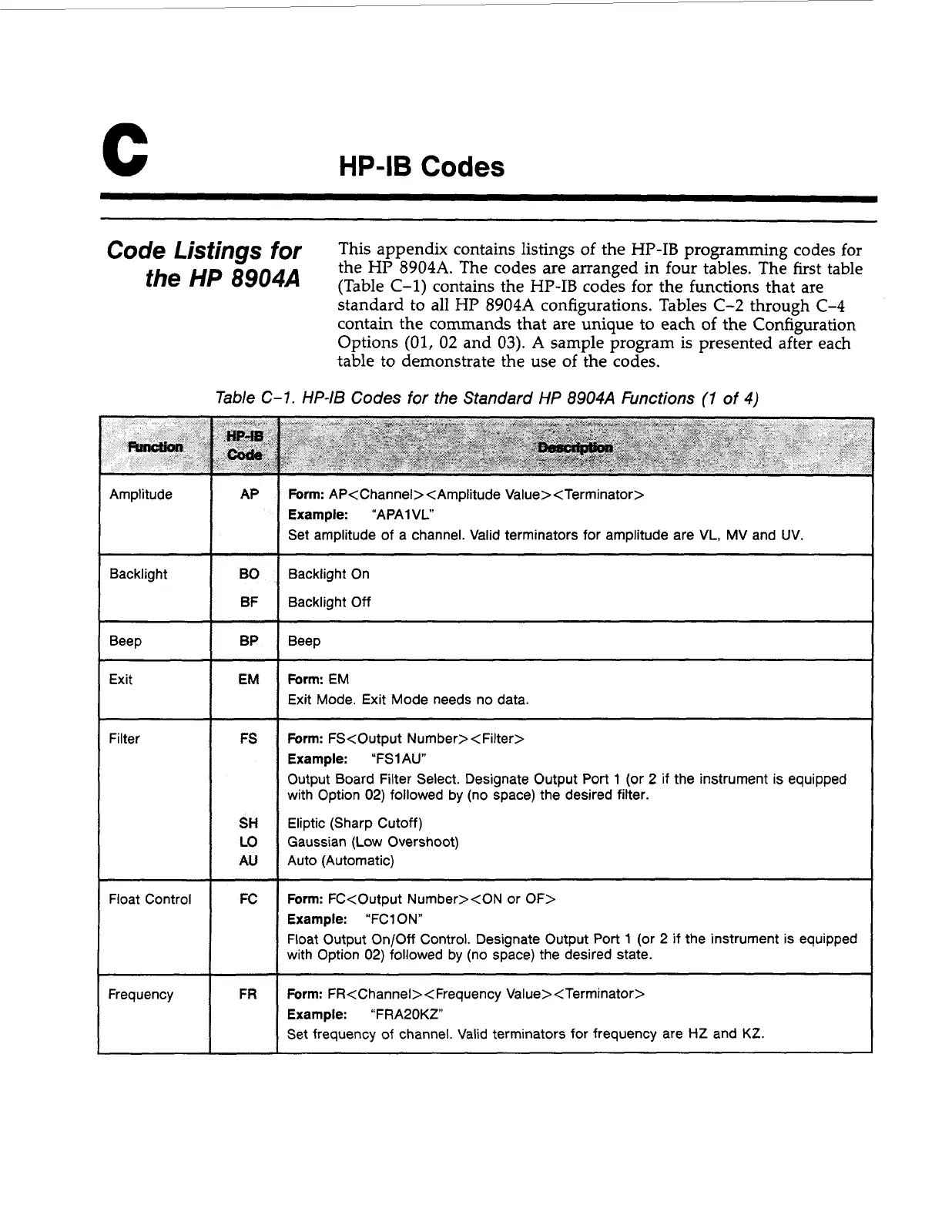

This appendix contains listings
of
the HP-IB programming codes for
the HP
8904A.
The codes are arranged in four tables. The first table
(Table
C-1)
contains the HP-IB codes
for
the functions that are
standard to all HP
8904A
configurations. Tables
C-2
through
C-4
contain the commands that are unique to each of the Configuration
Options
(01,
02
and
03).
A
sample program is presented after each
table to demonstrate the use
of
the codes.
Table C-7.
HP-IS
Codes
for
the Standard
HP
8904A Functions
(1
of
4)
E
Amplitude
Backlight
Exit
1
Filter
I
I-
Float Control
Frequency
k
BO
BF
BP
EM
FS
SH
Lo
AU
FC
FR
Form:
AP<Channel>
<Amplitude
Value> <Terminator>
Example:
“APA1
VL
Set amplitude of a channel. Valid terminators
for
amplitude are VL, MV and UV.
Backlight On
Backlight
Off
Beep
Form:
EM
Exit Mode. Exit Mode needs no data.
Form:
FS<Output Number><Filter>
Example:
“FS1 AU”
Output Board Filter Select. Designate Output
Port
1
(or
2
if the instrument is equipped
with Option 02) followed by (no space) the desired filter.
Eliptic (Sharp Cutoff)
Gaussian (Low Overshoot)
Auto (Automatic)
Form:
FC<Output Number><ON
or
OF>
Example:
“FCI ON”
Float Output On/Off Control. Designate Output
Port
1
(or 2 if the instrument is equipped
with Option 02) followed by (no space) the desired state.
Form:
FR<Channel><Frequency Value><Terminator>
Example:
“FRA20KZ”
Set frequency
of
channel. Valid terminators for frequency are
HZ
and
KZ.
