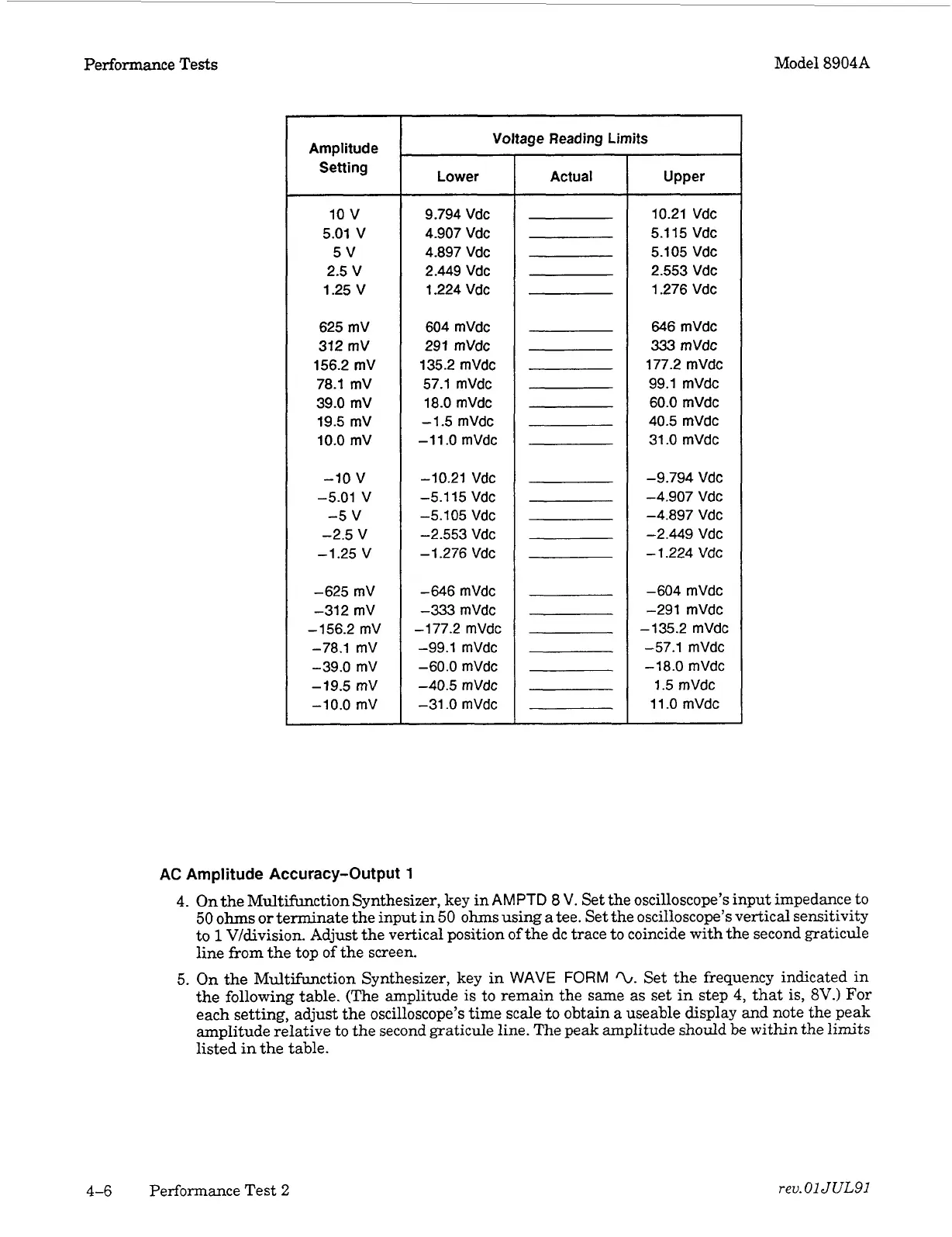

Performance Tests Model 8904A
Amplitude
Setting
10 v
5.01 V
5v
2.5 V
1.25 V
625 mV
312 mV
156.2 mV
78.1 mV
39.0 mV
19.5 mV
10.0 mV
-10 v
-5.01 V
-5 v
-2.5 V
-1.25 V
-625 mV
-312 mV
-156.2 mV
-78.1 mV
-39.0 mV
-19.5 mV
-10.0 mV
Voltage Reading Limits
~
Lower Actual
9.794 Vdc
4.907 Vdc
4.897 Vdc
2.449 Vdc
1.224 Vdc
604 mVdc
135.2 mVdc
57.1 mVdc
291 mVdc
18.0 mVdc
-1.5 mVdc
-1 1 .O mVdc
-10.21 VdC
-5.115 VdC
-5.105 VdC
-2.553 VdC
-1.276 VdC
-646 mVdc
-333 mVdc
-177.2 mVdc
-99.1 mVdc
-60.0 mVdc
-40.5 mVdc
-31
.O mVdc
10.21 Vdc
5.115 Vdc
5.105 Vdc
2.553 Vdc
1.276 Vdc
646 mVdc
333 mVdc
177.2 mVdc
99.1 mVdc
60.0 mVdc
31.0 mVdc
40.5 mVdc
-9.794 VdC
-4.907 VdC
-4.897 VdC
-2.449 VdC
-1.224
Vdc
-604 mVdc
-291 mVdc
-135.2 mVdc
-57.1 mVdc
-18.0 mVdc
1.5 mVdc
11.0 mVdc
AC Amplitude Accuracy-Output 1
4. On the Multifunction Synthesizer, key in AMPTD 8 V. Set the oscilloscope’s input impedance to
50 ohms or terminate the input in 50 ohms using a tee. Set the oscilloscope’s vertical sensitivity
to 1 V/division. Adjust the vertical position of the dc trace to coincide with the second graticule
line from the top
of the screen.
5. On the Multifunction Synthesizer, key in WAVE FORM ’L. Set the frequency indicated in
the following table. (The amplitude is
to remain the same as set in step 4, that is, 8V.) For
each setting, adjust the oscilloscope’s time scale to obtain a useable display and note the peak
amplitude relative
to the second graticule line. The peak amplitude should be within the limits
listed in the table.
4-6 Performance Test 2
rev. 01 JUL91
