HP 9030 User Manual

5-4 Replaceable Parts

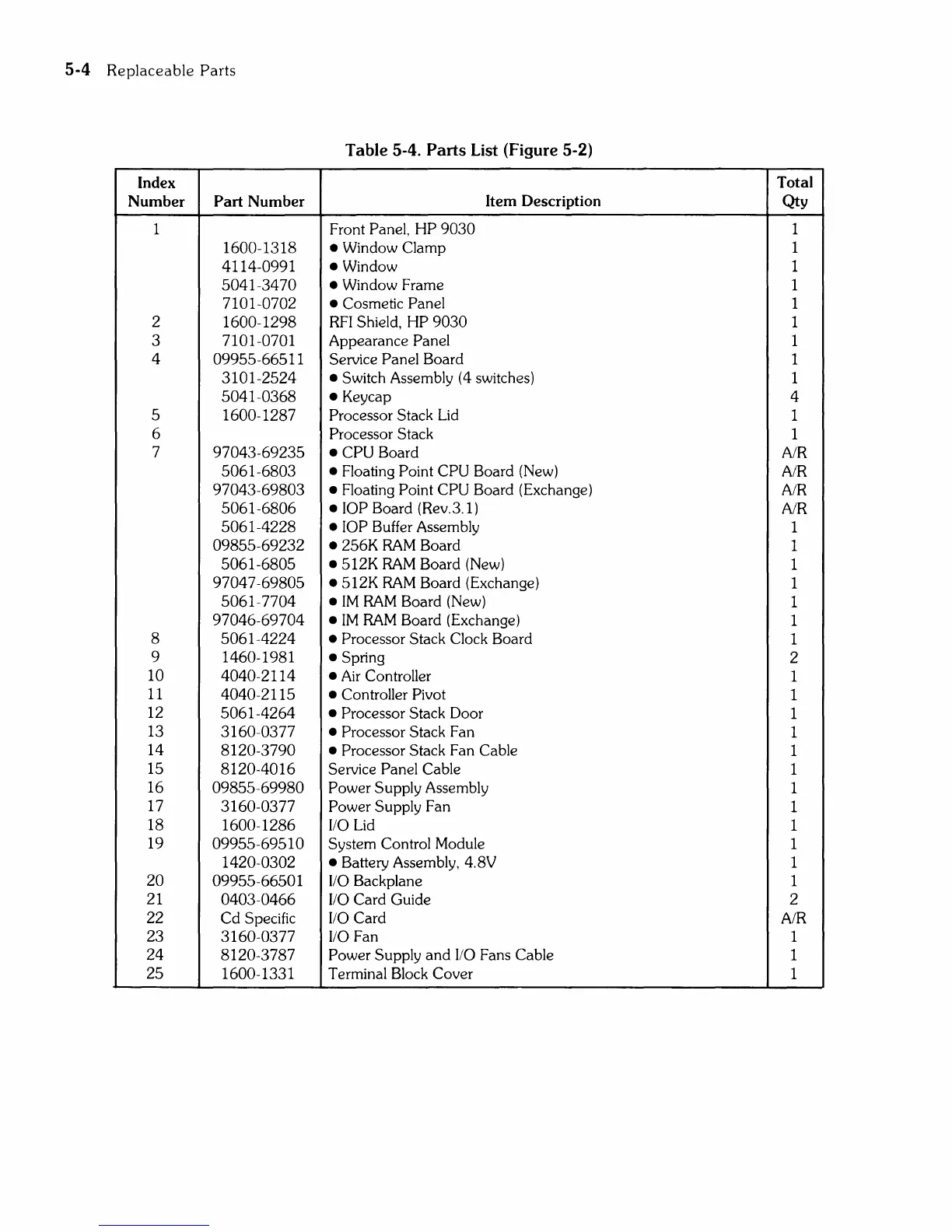

Table 5-4. Parts List (Figure 5-2)
Index
Total
Number Part Number
Item Description
Qty
1 Front Panel, HP 9030 1
1600-1318
•
Window Clamp
1
4114-0991
• Window
1
5041-3470
•
Window Frame
1
7101-0702
•
Cosmetic Panel
1
2
1600-1298
RFI Shield, HP 9030
1
3
7101-0701 Appearance Panel
1
4
09955-66511
Service
Panel Board
1
3101-2524
• Switch Assembly (4 switches)
1
5041-0368
•
Keycap
4
5
1600-1287
Processor Stack Lid
1
6 Processor Stack
1
7 97043-69235
• CPU Board
AIR
5061-6803
•
Floating Point CPU Board (New)
AIR
97043-69803
•
Floating Point CPU Board (Exchange)
AIR
5061-6806
• lOP
Board (Rev.3.1)
AIR
5061-4228
• lOP Buffer Assembly
1
09855-69232
• 256K RAM Board
1
5061-6805
•
512K RAM Board (New)
1
97047-69805
•
512K RAM Board (Exchange)
1
5061-7704
•
1M RAM Board (New)
1
97046-69704
•
1M RAM Board (Exchange)
1
8
5061-4224
• Processor Stack Clock Board
1
9
1460-1981
• Spring
2
10
4040-2114
•
Air Controller
1
11
4040-2115
•
Controller Pivot
1
12
5061-4264
• Processor Stack Door
1
13
3160-0377
•
Processor Stack Fan
1
14
8120-3790
•
Processor Stack Fan Cable
1
15
8120-4016 Service Panel Cable
1
16
09855-69980
Power
Supply Assembly
1
17
3160-0377
Power
Supply Fan
1
18
1600-1286 110 Lid
1
19
09955-69510
System Control Module
1
1420-0302
•
Battery Assembly, 4.8V
1
20
09955-66501 110 Backplane 1
21
0403-0466
110 Card Guide
2
22
Cd Specific 110 Card AIR
23
3160-0377
110 Fan
1
24
8120-3787
Power Supply and 110 Fans Cable
1
25
1600-1331 Terminal Block Cover
1
