Testing and Troubleshooting 3-17

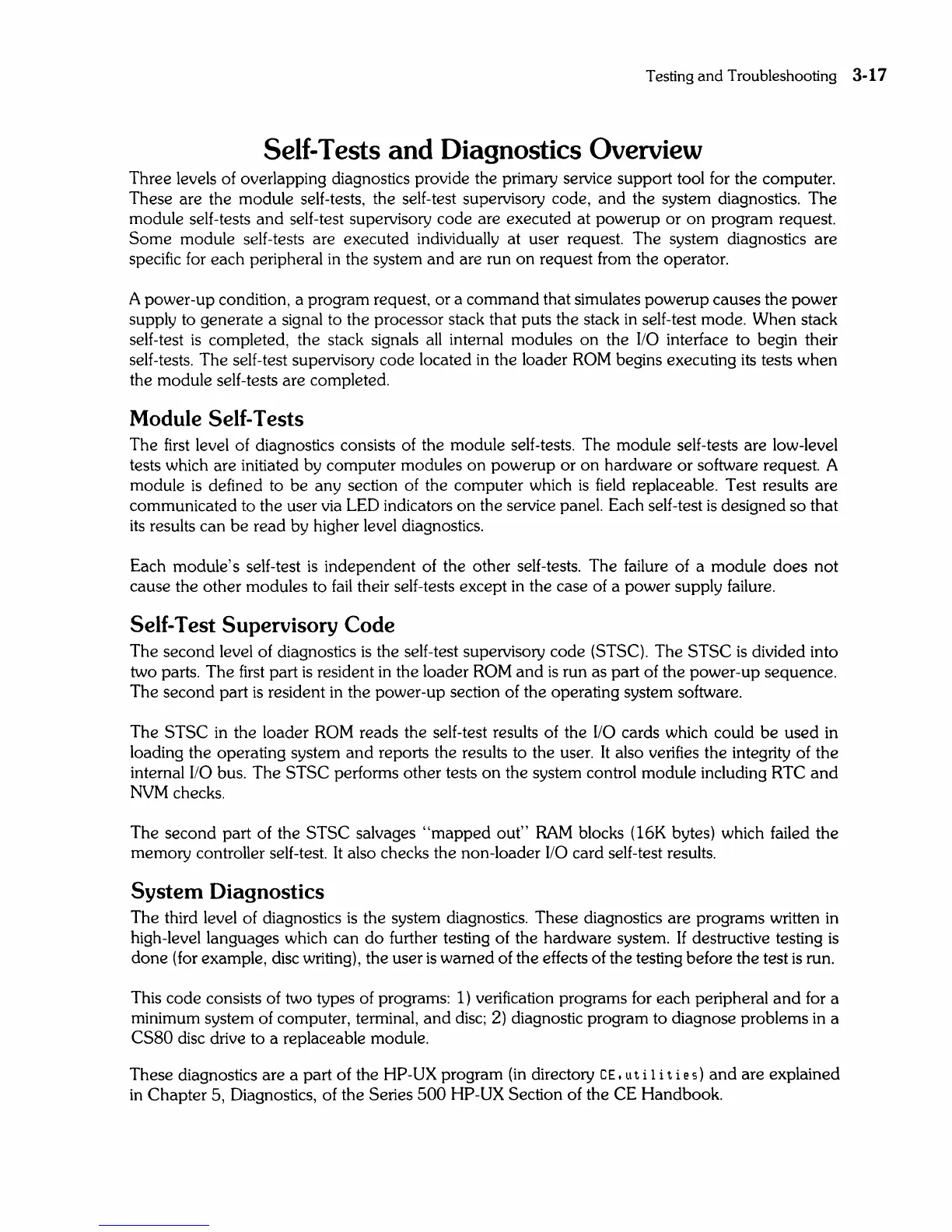

Self-Tests and Diagnostics Overview
Three levels of overlapping diagnostics provide the primary service support tool for the computer.
These are the module self-tests, the self-test supervisory code,
and the system diagnostics. The
module self-tests
and self-test supervisory code are executed at powerup or on program request.
Some module self-tests are executed individually at user request. The system diagnostics are
specific for each peripheral
in the system and are run on request from the operator.
A power-up condition, a program request, or a command that simulates powerup causes the power
supply to generate a signal to the processor stack that puts the stack
in self-test mode. When stack
self-test
is completed, the stack signals all internal modules on the 110 interface to begin their
self-tests. The self-test supervisory code located
in the loader ROM begins executing its tests when
the module self-tests are completed.
Module Self-Tests
The first level of diagnostics consists of the module self-tests. The module self-tests are low-level
tests which are initiated by computer modules
on powerup or on hardware or software request. A
module
is defined to be any section of the computer which is field replaceable. Test results are
communicated to the user via LED indicators
on the service panel. Each self-test is designed so that
its results can be read by higher level diagnostics.
Each module's self-test
is independent of the other self-tests. The failure of a module does not
cause the other modules to
fail their self-tests except in the case of a power supply failure.
Self-Test Supervisory Code
The second level of diagnostics is the self-test supervisory code (STSC). The STSC is divided into
two parts. The
first part is resident in the loader ROM and is run as part of the power-up sequence.
The second part
is resident in the power-up section of the operating system software.
The
STSC in the loader ROM reads the self-test results of the 110 cards which could be used in
loading the operating system
and reports the results to the user. It also verifies the integrity of the
internal
110 bus. The STSC performs other tests on the system control module including RTC and
NVM checks.
The second part of the STSC salvages "mapped out" RAM blocks (16K bytes) which failed the
memory controller self-test.
It also checks the non-loader 110 card self-test results.
System Diagnostics
The third level of diagnostics is the system diagnostics. These diagnostics are programs written in
high-level languages which can do further testing of the hardware system. If destructive testing is
done (for example, disc writing), the user is warned of the effects of the testing before the test is run.
This code consists of two types of programs: 1) verification programs for each peripheral and for a
minimum system of computer, terminal,
and disc; 2) diagnostic program to diagnose problems in a
CS80 disc drive to a replaceable module.
These diagnostics are a part of the
HP-UX program (in directory CE. II til it i e 5) and are explained
in Chapter 5, Diagnostics, of the Series
500 HP-UX Section of the CE Handbook.
