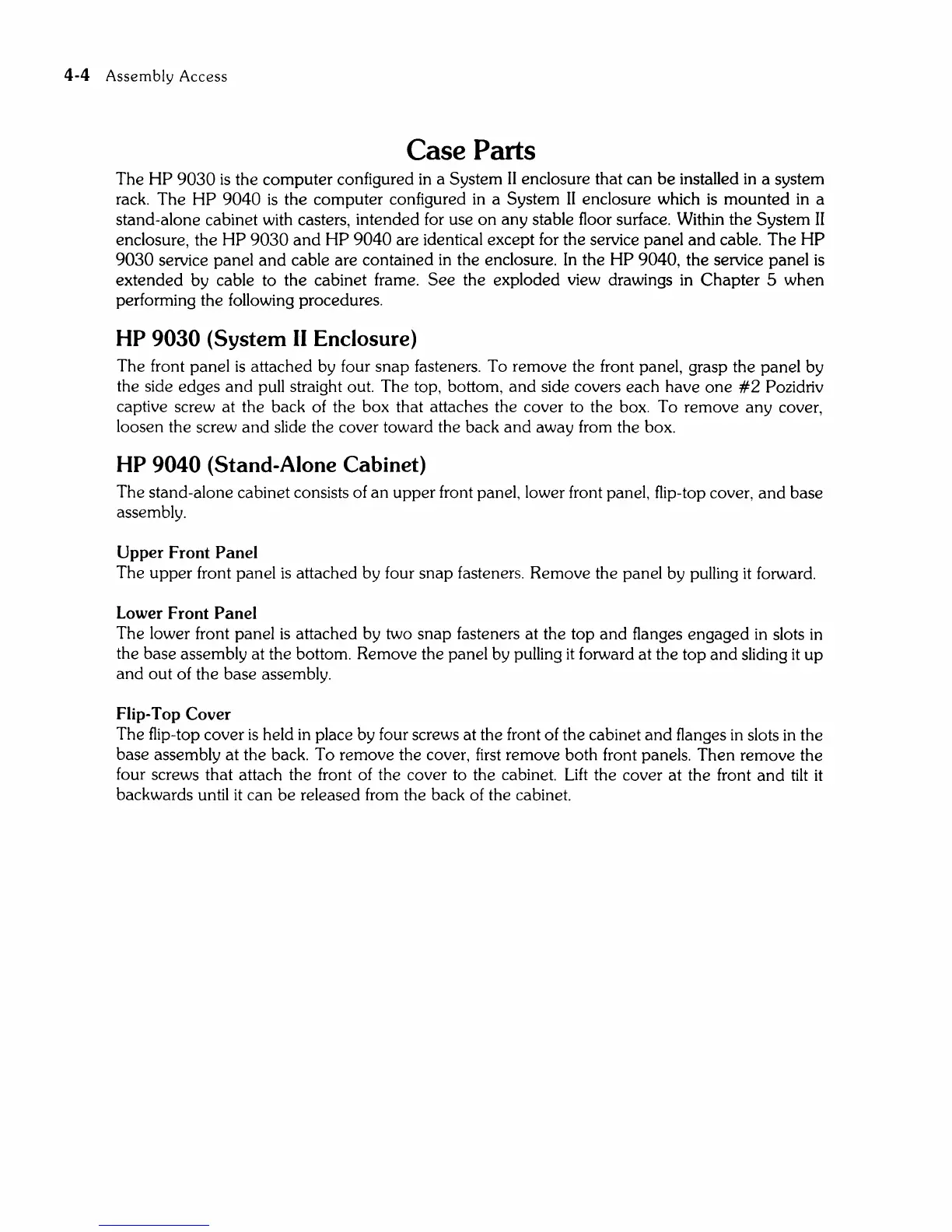

4-4 Assembly Access
Case Parts
The HP 9030 is the computer configured in a System II enclosure that can be installed in a system
rack. The
HP 9040 is the computer configured in a System II enclosure which is mounted in a
stand-alone cabinet with casters, intended for use
on any stable floor surface. Within the System II
enclosure, the HP 9030 and HP 9040 are identical except for the service panel and cable. The HP
9030 service panel and cable are contained in the enclosure. In the HP 9040, the service panel is
extended by cable to the cabinet frame. See the exploded view drawings in Chapter 5 when
performing the following procedures.
HP 9030 (System II Enclosure)
The front panel is attached by four snap fasteners. To remove the front panel, grasp the panel by
the side edges
and pull straight out. The top, bottom, and side covers each have one #2 Pozidriv
captive screw at the back of the box that attaches the cover to the box. To remove any cover,
loosen the screw
and slide the cover toward the back and away from the box.
HP 9040 (Stand-Alone Cabinet)
The stand-alone cabinet consists of an upper front panel, lower front panel, flip-top cover, and base
assembly.
Upper Front Panel
The upper front panel is attached by four snap fasteners. Remove the panel by pulling it forward.
Lower Front Panel
The lower front panel is attached by two snap fasteners at the top and flanges engaged in slots in
the base assembly at the bottom. Remove the panel by pulling it forward at the top and sliding it up
and out of the base assembly.
Flip-Top Cover
The flip-top cover is held in place by four screws at the front of the cabinet and flanges in slots in the
base assembly
at the back. To remove the cover, first remove both front panels. Then remove the
four screws that attach the front of the cover to the cabinet.
Lift the cover at the front and tilt it
backwards until it can be released from the back of the cabinet.
