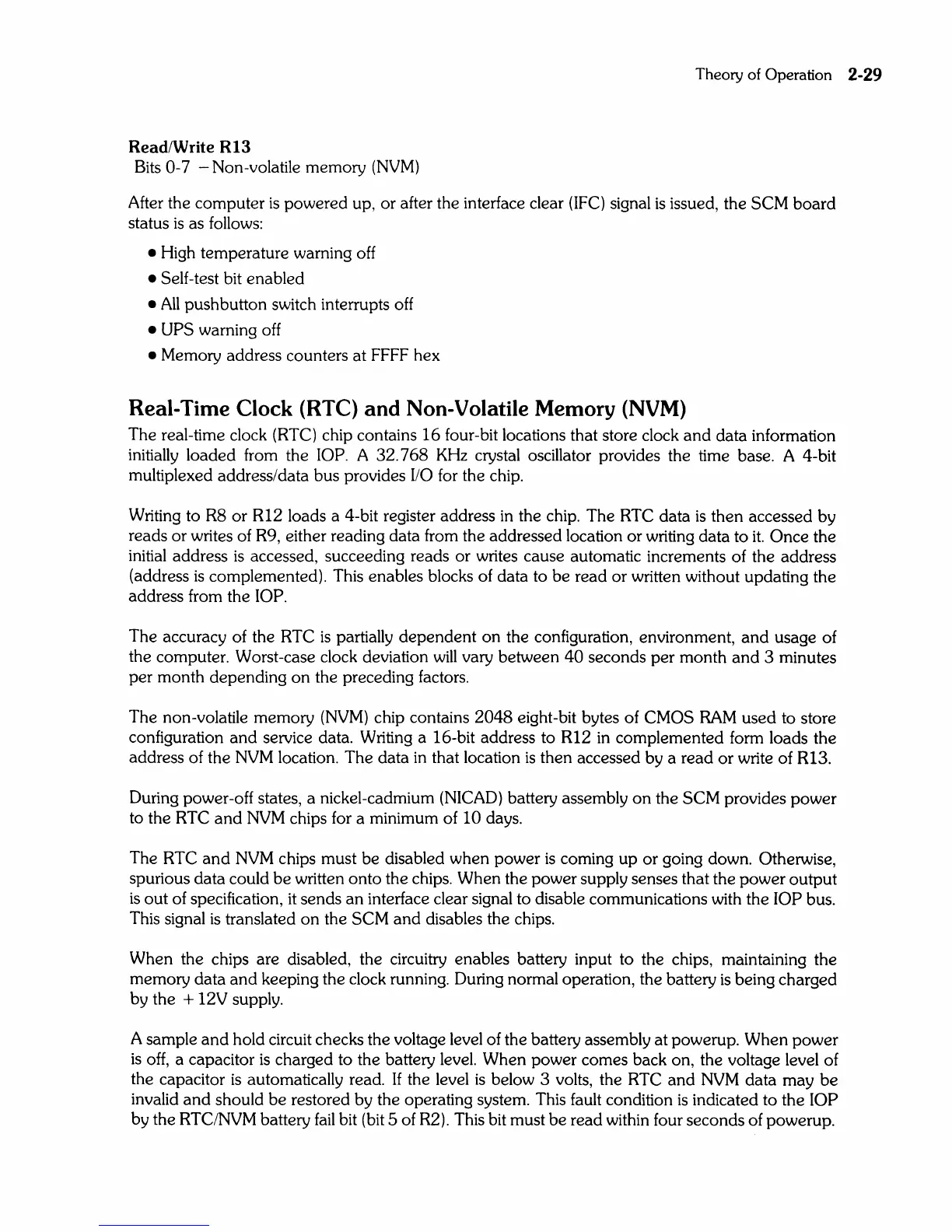

Theory
of
Operation 2-29
Read/Write R13
Bits 0-7 - Non-volatile memory
(NVM)
After the computer
is
powered up, or after the interface clear
(IFC)
signal
is
issued, the SCM
board
status
is
as follows:
• High temperature warning off
• Self-test bit enabled
•
All
pushbutton switch interrupts off
• UPS warning off
• Memory address counters at FFFF hex
Real-Time Clock (RTC) and Non-Volatile Memory (NVM)
The real-time clock (RTC) chip contains
16
four-bit locations that store clock
and
data information
initially loaded from the
lOP. A
32.768
KHz
crystal oscillator provides the time base. A 4-bit
multiplexed address/data bus provides
110
for the chip.
Writing to R8
or
R12 loads a 4-bit register address
in
the chip. The RTC data
is
then accessed by
reads or writes of R9, either reading data from the addressed location or writing data to
it.
Once the
initial address
is
accessed, succeeding reads or writes cause automatic increments of the address
(address
is
complemented). This enables blocks of data to be read or written without updating the
address from the
lOP.
The accuracy of the RTC
is
partially
dependent
on
the configuration, environment,
and
usage of
the computer. Worst-case clock deviation
will
vary between
40
seconds per month
and
3 minutes
per month depending
on
the preceding factors.
The non-volatile memory
(NVM)
chip contains
2048
eight-bit bytes of CMOS
RAM
used to store
configuration
and
service data. Writing a 16-bit address to R12
in
complemented form loads the
address of the
NVM
location. The data
in
that location
is
then accessed by a read
or
write of R13.
During power-off states, a nickel-cadmium
(NICAD)
battery assembly
on
the SCM provides power
to the RTC
and
NVM
chips for a minimum of
10
days.
The RTC
and
NVM
chips must be disabled when power
is
coming up
or
going down. Otherwise,
spurious data could
be
written onto the chips. When the power supply senses that the power output
is
out
of specification,
it
sends an interface clear signal to disable communications with the lOP bus.
This signal
is
translated
on
the SCM
and
disables the chips.
When the chips are disabled, the circuitry enables battery input to the chips, maintaining the
memory data
and
keeping the clock running. During normal operation, the battery
is
being charged
by the
+ 12V supply.
A sample
and
hold circuit checks the voltage level of the battery assembly at powerup. When power
is
off,
a capacitor
is
charged to the battery level. When power comes back on, the voltage level of
the capacitor
is
automatically read. If the level
is
below 3 volts, the RTC
and
NVM
data may
be
invalid
and
should
be
restored by the operating system. This fault condition
is
indicated to the lOP
by the RTC/NVM battery
fail
bit (bit 5 of R2). This bit must be read within four seconds of powerup.
