Theory of Operation
2-21
As
in
the 256K
RAM,
the
MC
uses
27
bits of the
MPB
logical address to locate the physical memory
address
on
the
RAM
board (Figure 2-11). 12 bits of the
MPB
address are used as part of the X
and
Yaddresses. The other 15 bits select a mapper Content-Addressable Memory
(CAM)
register. The
mapper
CAM
register output
is
used to provide Chip Select (CS) lines
and
3 more Y address bits for
block selection.
One
of four chip select lines
is
input to the multiplexer where
it
is
further modified
by the most significant bit of the
Y address to select
one
of four rows of odd, or
one
of four rows of
even numbered
RAM.
Each row of
RAM
has four 4K word blocks of memory, for a total of 16K
words (four 8 bit bytes per word). The row
is
actually comprised of
five
16K by 8 bit
RAM
chips.
Each word has
32
data bits
and
7 check bits for error detection
and
correction. Data
and
check bits
are transmitted
on
the Memory Data Bus.
The 8-line Memory Address Bus multiplexes 15 address bits. The lower 8 bits comprise the X
address
and
are transmitted from the
MC
first.
The next 7 bits make up the Y address
and
are
transmitted next.
a
\.
r
LOGICAL
MEMORY
ADDRESS
~
(27
BITS)
I
2 3
17
18
29
30
31
15
BITS
12
BITS
15
4
8
{
MAPPER
CAM
2
MSD
OF
Y
!
!
EVEN
CS
ROWS
ODD
CS
ROWS
Y
ADDRESS
X
ADDRESS
y
J
PHYSICAL
MEMORY
ADDRESS
17 18
31
LOGICAL
PAGE
NUMBER
Ix----xl
MAPPER
CAM
DATA
FORMAT

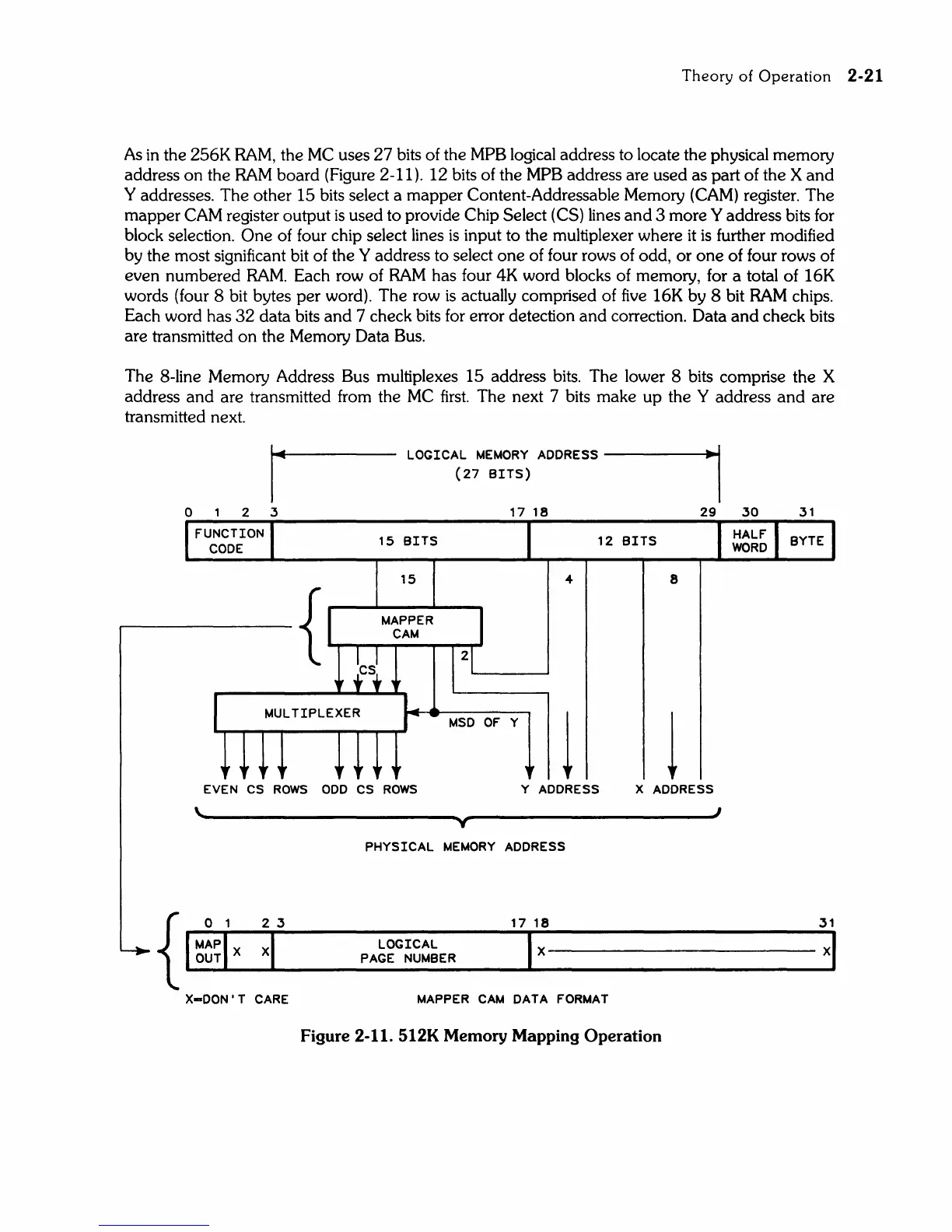

Figure 2-11.
512K
Memory Mapping Operation
