12

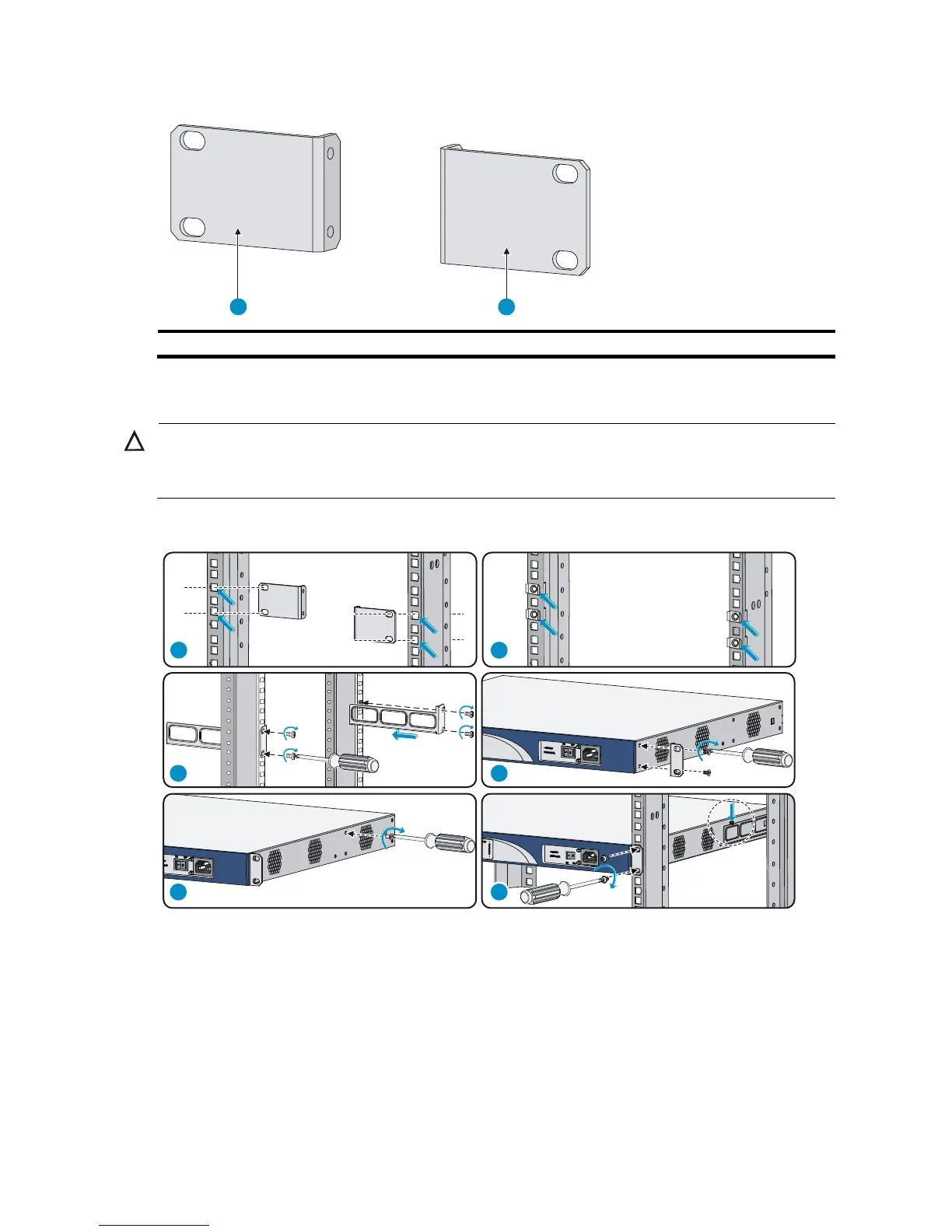

Figure 10 A-MSR20-20/A-MSR20-21 mounting brackets
1 2
(1) Left front mounting bracket
(2) Right front mounting bracket
A-MSR20-40 router
CAUTION
Mounting brackets can support only the weight of the router. To avoid damaging the router, do not
place any objects on it.
Figure 11 Rack-mounting the A-MSR20-40 router
21
3 4
65
To install the router in a 19-inch rack, as shown in Figure 11:
1. Attach the rear mounting brackets, shown in Figure 12, to the rack.
a. Determine where to attach the cage nuts to match the mounting bracket holes.
b. Attach the cage nuts to the rack posts.
c. Attach the rear mounting brackets to the rack.
2. Attach the front mounting brackets, shown in Figure 12, to the sides of the router.
