HP A-MSR20 Installation Guide

15

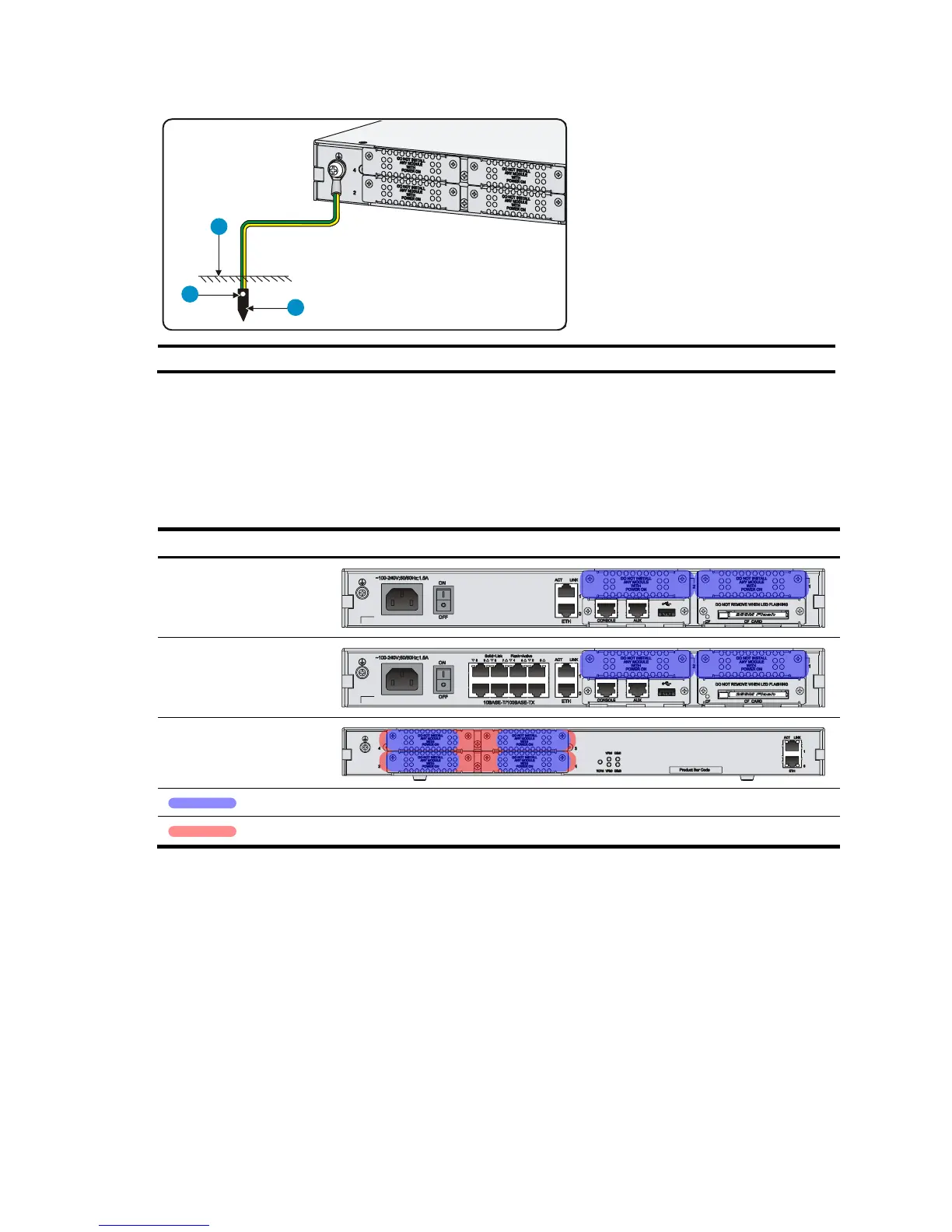

Figure 15 Grounding the router to a grounding conductor buried in the earth
1
2
3
(1) Earth
(2) Joint
(3) Angle iron
Installing interface modules
The router provides SIC slots. On some models, you can remove a slot divider to combine two side-by-
side SIC slots into one DSIC slot, as shown in Table 6.
Table 6 A-MSR20 SIC and DSIC slots
Model
Slot arrangement
A-MSR20-20
SIC 1SIC 2
A-MSR20-21
SIC 1SIC 2
A-MSR20-40
SIC 2 SIC 1DSIC 2
SIC 4 SIC 3DSIC 4
—SIC slot
—DSIC slot
