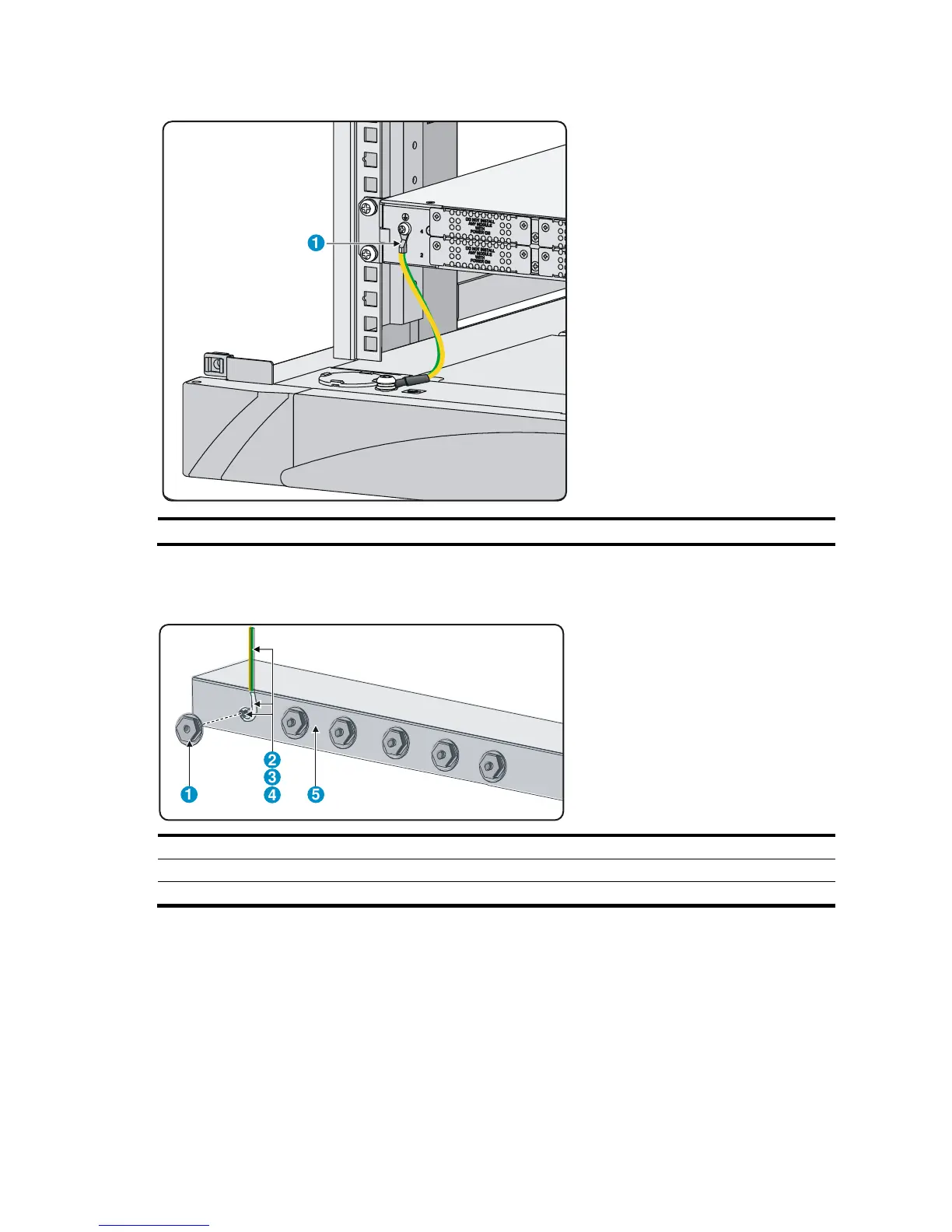

Figure 13 Connecting the grounding cable to the router chassis
4. Attach the other end of the grounding cable to the grounding strip, as shown in Figure 14.
Figure 14 Connecting the grounding cable to a grounding strip
Grounding the router to a buried grounding conductor
If the installation site has no grounding strips but offers the option of grounding to earth, hammer a 0.5 m
(1.64 ft) or longer angle iron or steel tube into the earth to serve as a grounding conductor, as shown in
Figure 15.
