2

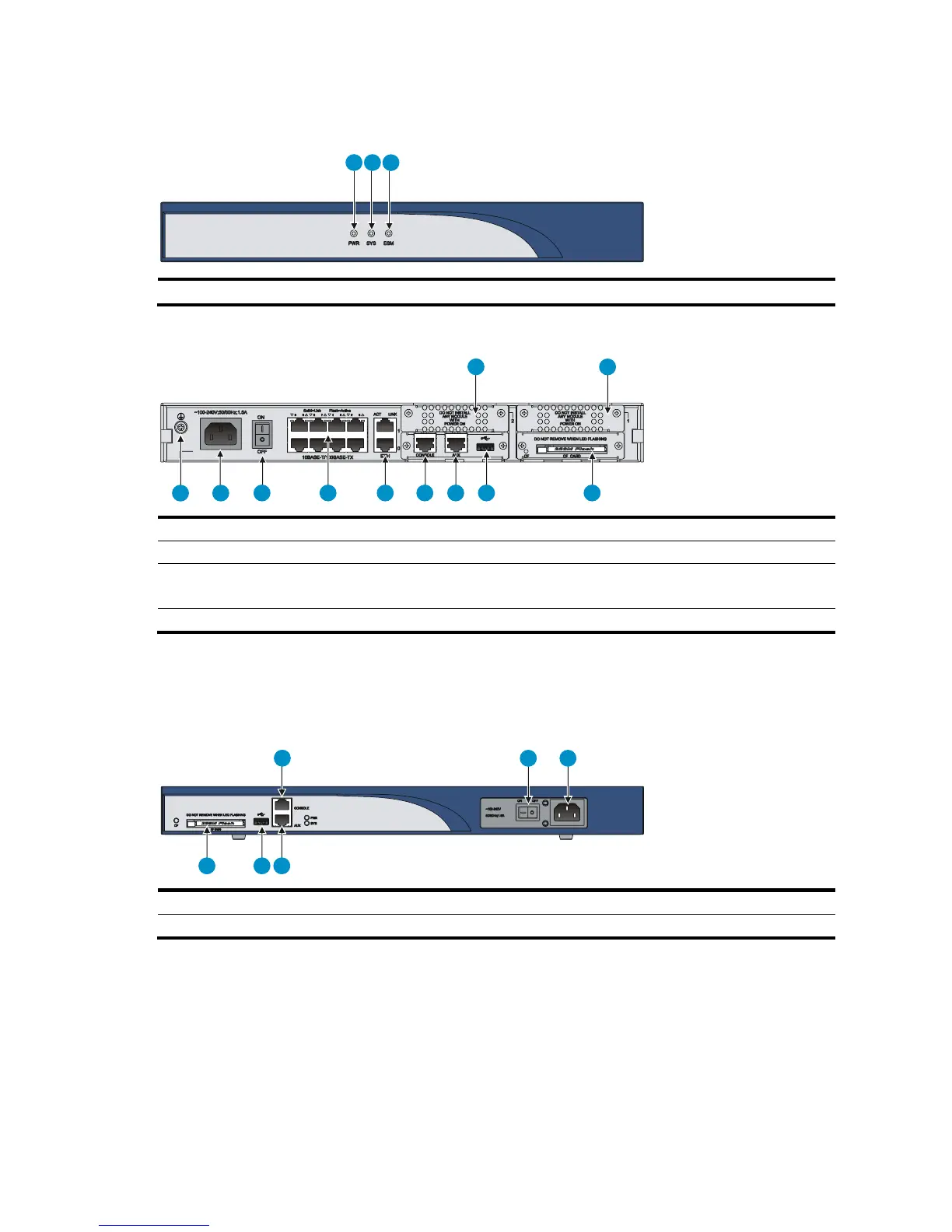

A-MSR20-21 panel views
Figure 3 A-MSR20-21 front panel
1
2
3
(1) PWR LED
(2) SYS LED
(3) ESM LED
Figure 4 A-MSR20-21 rear panel
1 2
3456789
1011
(1) SIC slot 2
(2) SIC slot 1
(3) CF card slot
(4) USB port
(5) AUX port
(6) Console port
(7) Ethernet WAN ports
(ETH0 and ETH1)
(8) Ethernet LAN ports
(ETH2 to ETH9)
(9) Power switch
(10) Power receptacle
(11) Grounding screw
A-MSR20-40 panel views
Figure 5 A-MSR20-40 front panel
1 2 3
456
(1) Console port
(2) Power switch
(3) Power receptacle
(4) AUX port
(5) USB port
(6) CF card slot
