Grounding through the AC power cord
If the installation site has no grounding strips or earth ground, you can ground an AC-powered switch
through the PE wire of the power cord, as shown in Figure 23.
You must make sure:
 The power cord has a PE terminal.
 The ground contact in the power outlet is securely connected to the ground in the power distribution
room or on the AC transformer side.
 The power cord is securely connected to the power outlet.
NOTE:
If the ground contact in the power outlet is not properly grounded, report the problem and reconstruct
the grounding system.

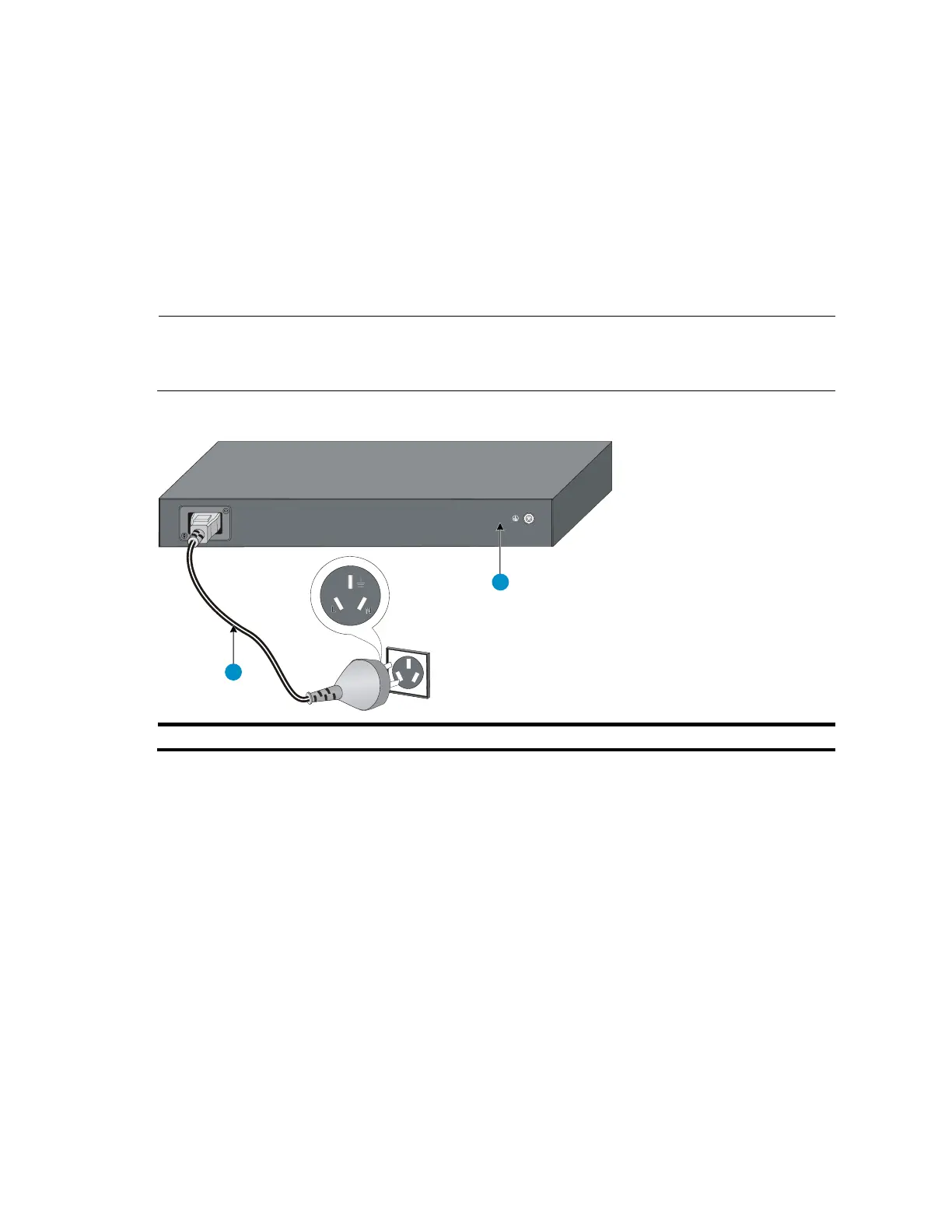

Figure 23 Grounding through the PE wire of the AC power cord
1
2
(1) Three-wire AC power cable
(2) Chassis rear panel
