HP A5120 EI Series

54
A5120-24G EI
CAUTION:
The A5120-24G EI switch does not support interface cards. To ensure good ventilation, do not remove
the interface card slot filler panels.

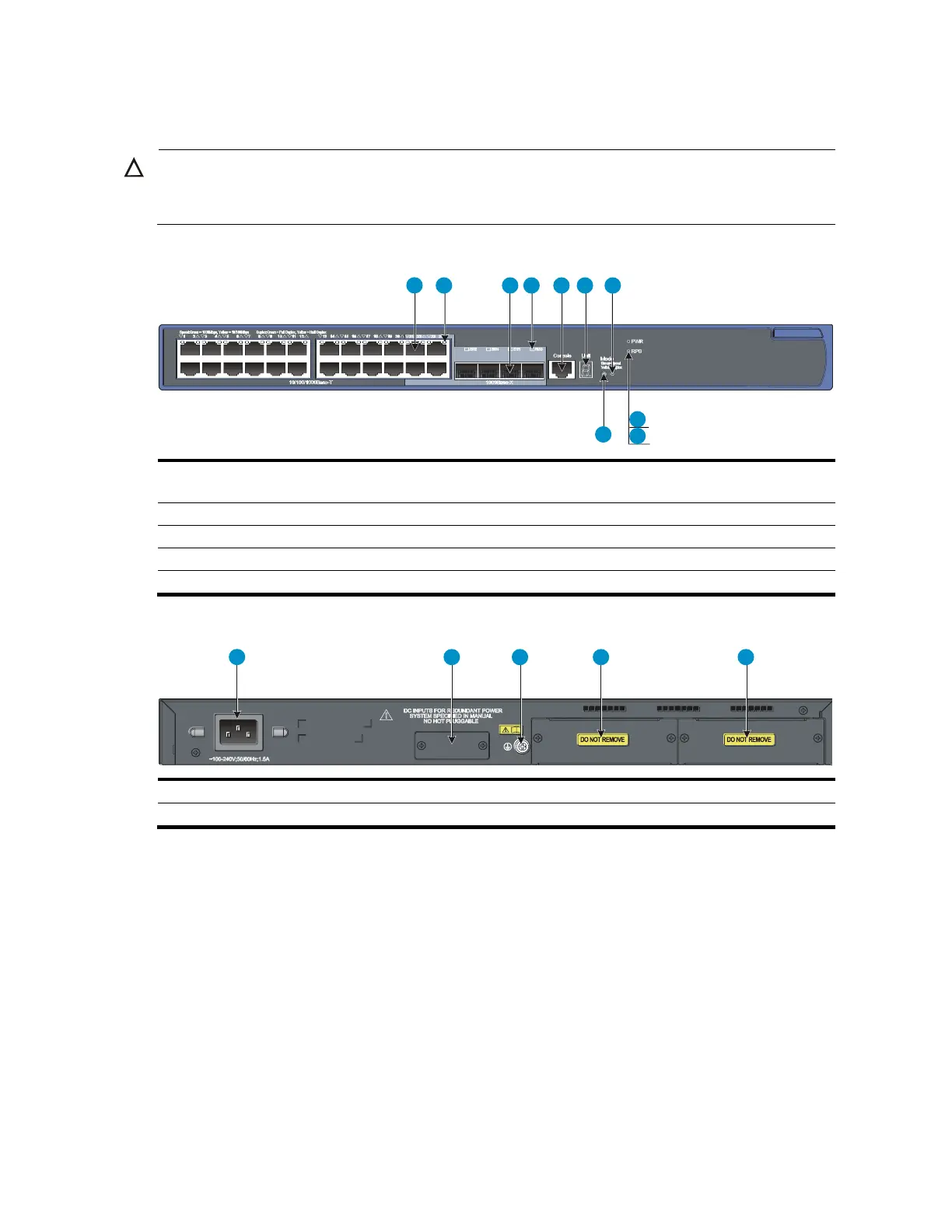

Figure 52 Front panel
1 2 3 4 5 6 7
8
9
10
(1) 10/100/1000Base-T auto-sensing Ethernet
port
(2) 10/100/1000Base-T Ethernet port LED
(3) SFP port
(4) SFP port LED
(5) Console port
(6) Seven-segment LED (Unit)
(7) Port mode LED (Mode)
(8) System status LED (PWR)
(9) RPS status LED (RPS)
(10) Port LED mode switching button
Figure 53 Rear panel
1 2 3 4 4
(1) AC-input power receptacle
(2) RPS receptacle
(3) Grounding screw
(4) "DO NOT REMOVE" label
