Server Installation

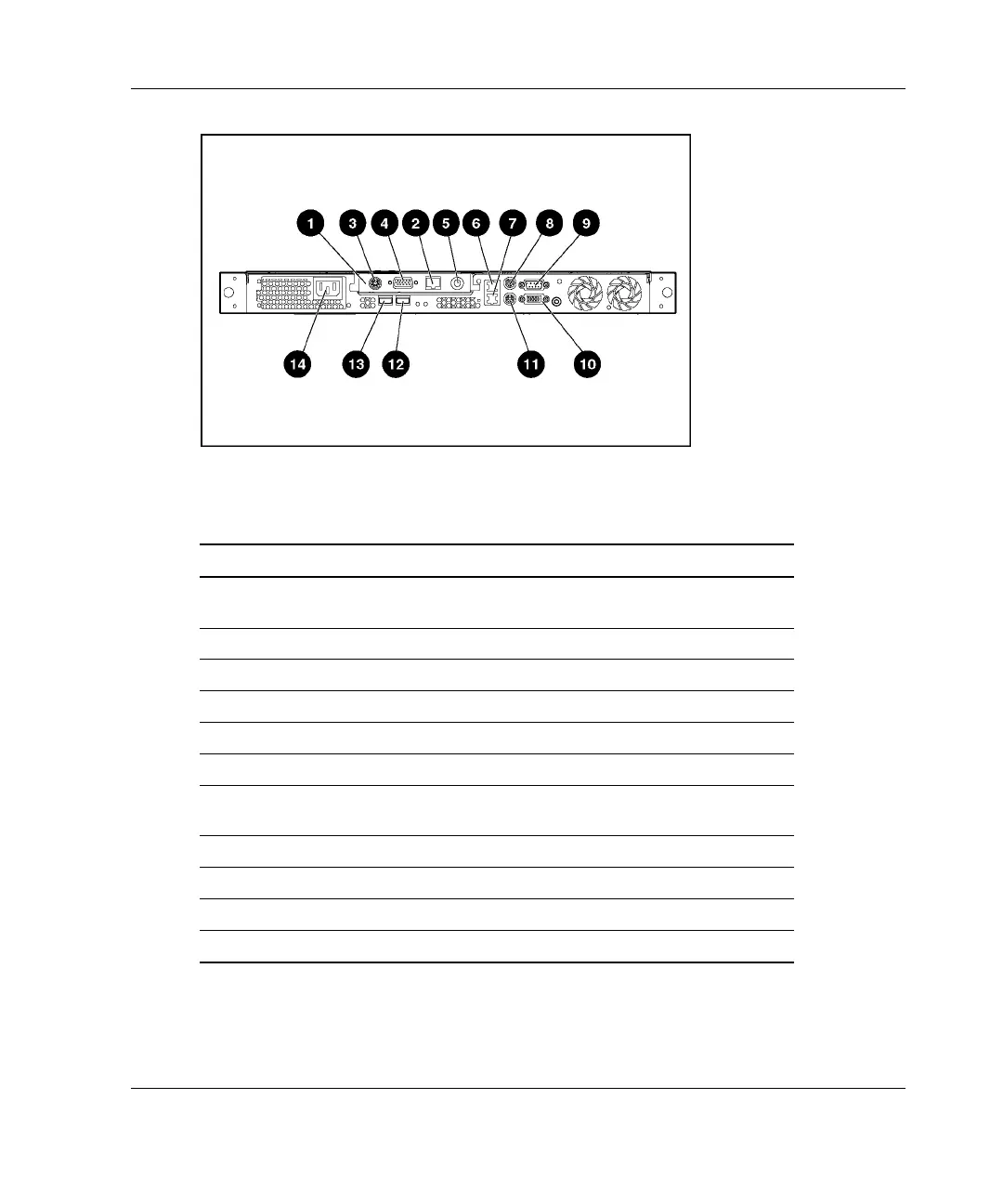

Figure 4-8: Rear panel connectors on the server
Table 4-1: Rear Panel Connectors and Connection Order
Location Connector
1 Expansion slot (shown with optional Remote Insight
Lights-Out Edition II (RILOE II) board installed)
2 RJ-45 connector (RILOE II)
3 Keyboard/mouse connector (RILOE II)
4 Video connector (RILOE II)
5 AC adapter connector (RILOE II)
6 RJ-45 Fast Ethernet connector for NIC 2
7 RJ-45 Fast Ethernet connector for NIC 1 (supports
PXE)
8 Mouse connector
9 Serial connector
10 Video connector *
11 Keyboard connector
continued
HP ProLiant DL320 Generation 2 Server Setup and Installation Guide 4-9
