Server Installation
To secure the cables in the fixed cable tray:
1. Loosen the clamp thumbscrews on both sides of the cable clamp (1) and open the
cable clamp (2).

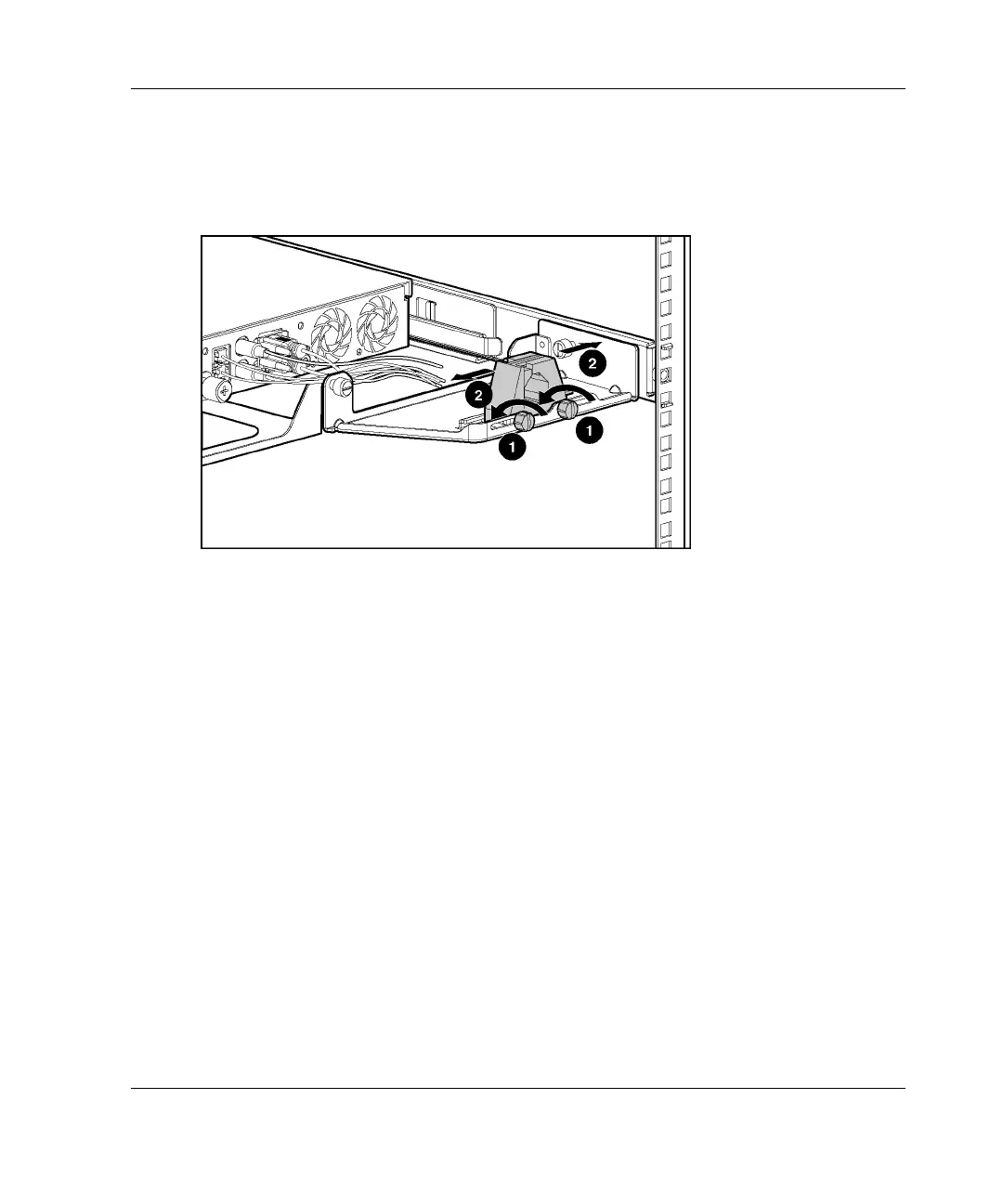

Figure 4-11: Opening the cable clamp (cables shortened
for clarity)
2. Starting with the peripheral device cables on the left, route all of the cables and
cords into the cable clamp.
HP ProLiant DL320 Generation 2 Server Setup and Installation Guide 4-13
