Serial Port
1. Prepare the computer for disassembly (Preparation for Disassembly on page 87).
2. Remove the access panel (
Access Panel on page 88).

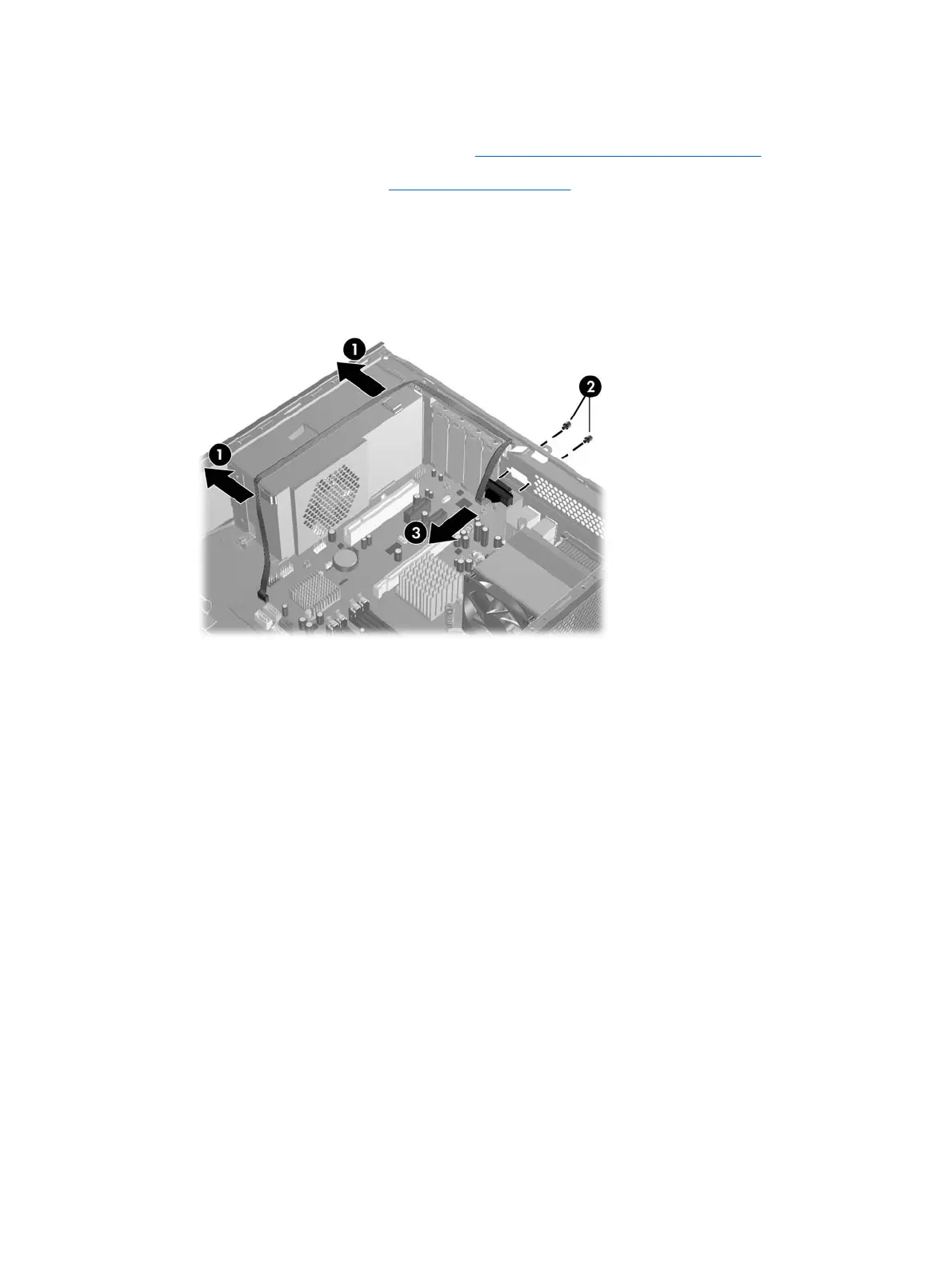

3. Remove the cable from the clips on top of the power supply (1).
4. Remove the two hex nuts that secure the port to the chassis (2), and then remove the serial port
from the chassis (3).
To install the serial port, reverse the removal procedures.
Serial Port 103
