Access Panel
1. Prepare the computer for disassembly (Preparation for Disassembly on page 87).

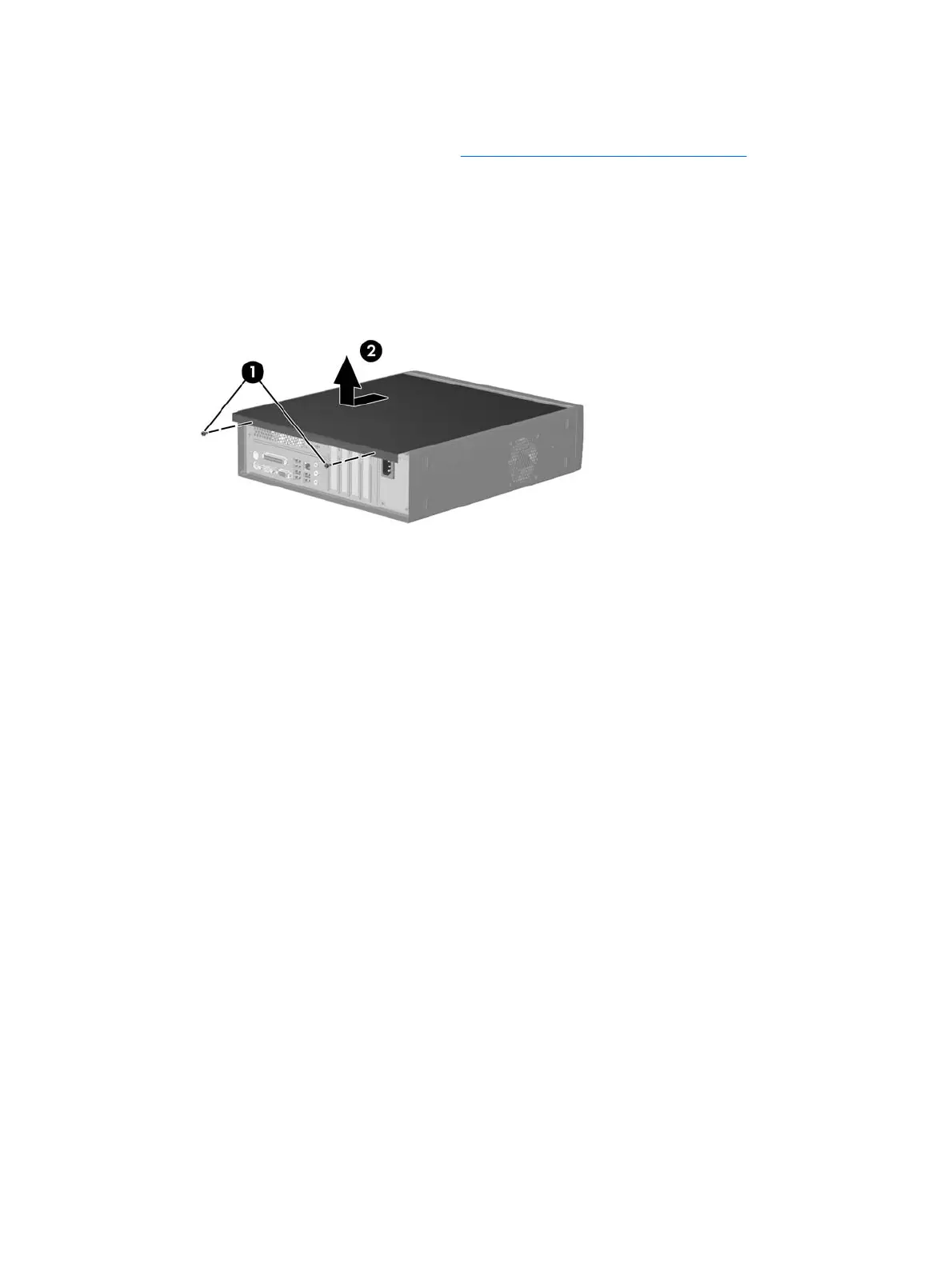

2. Remove the two screws that secure the access panel to the computer chassis (1).
3. Slide the access panel back about 1.25 cm (1/2 inch), then lift it away from and off the unit (2).
To install the access panel, reverse the removal procedure.
88 Chapter 8 Removal and Replacement Procedures Small Form Factor (SFF) Chassis
