Heatsink
1. Prepare the computer for disassembly (Preparation for Disassembly on page 87).
2. Remove the access panel (
Access Panel on page 88).
3. Unplug the fan wire from the system board.

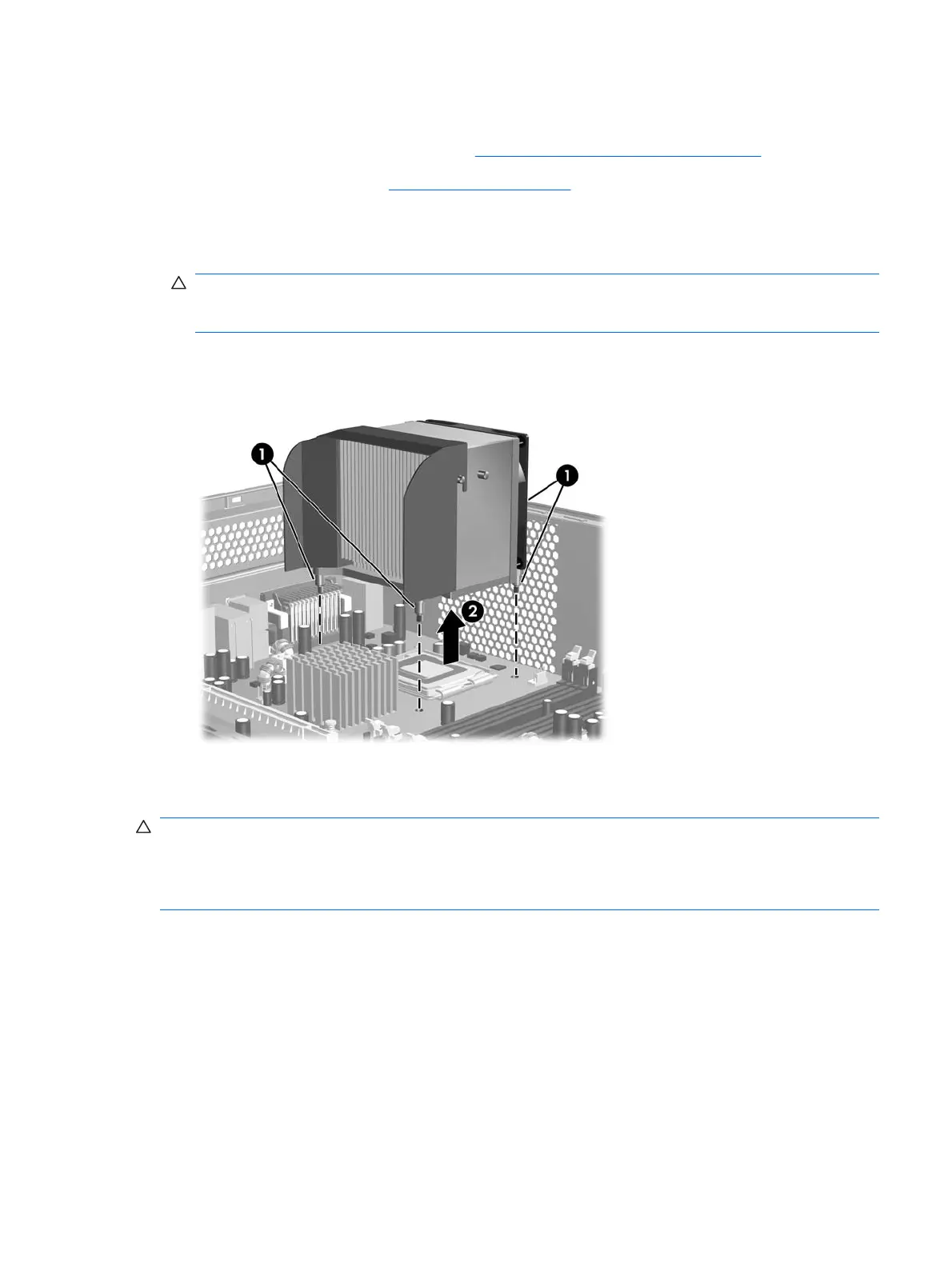

4. Loosen the four captive screws (1) that secure the heatsink to the system board tray.
CAUTION: Heatsink retaining screws should be removed in diagonally opposite pairs (as in an
X) to even the downward forces on the processor. This is especially important as the pins on the
socket are very fragile and any damage to them may require replacing the system board.
5. Lift the heatsink from atop the processor (2) and set it on its side to keep from contaminating the
work area with thermal grease.
When reinstalling the heatsink, make sure that its bottom has been cleaned with an alcohol wipe and
fresh thermal grease has been applied to the top of the processor.
CAUTION: Heatsink retaining screws should be tightened in diagonally opposite pairs (as in an X) to
evenly seat the heatsink on the processor. This is especially important as the pins on the socket are
very fragile and any damage to them may require replacing the system board.
Failure to install the fan shroud may cause the computer to overheat.
Heatsink 109
