HP dx7400 - Microtower PC - Drives

Access Panel
1. Prepare the computer for disassembly (Preparation for Disassembly on page 56).

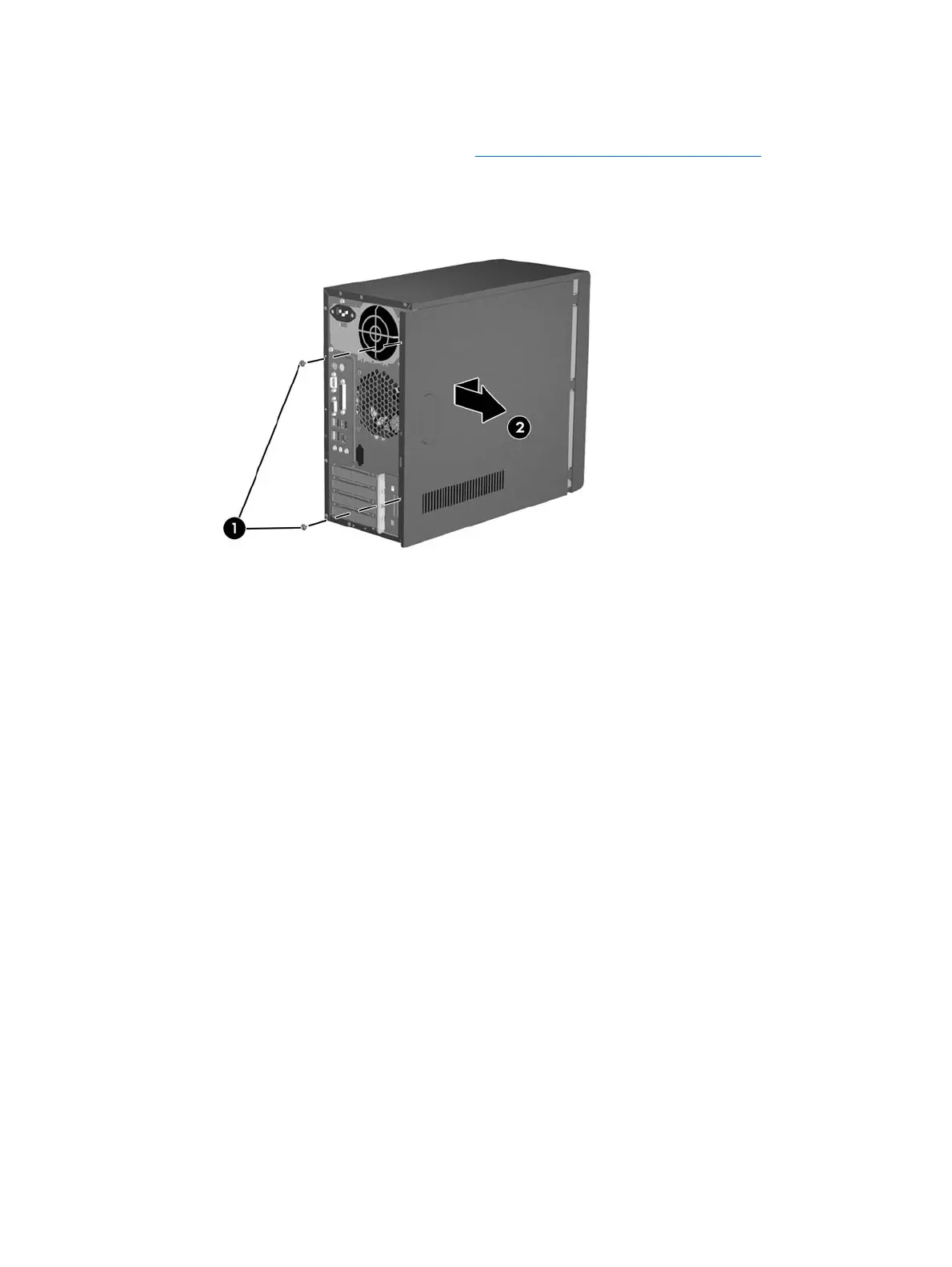

2. Remove the two screws that secure the access panel to the computer chassis (1).
3. Slide the access panel back about 1.25 cm (1/2 inch), and then lift it away from and off the unit (2).
To replace the access panel, reverse the removal steps.
Access Panel 57
