HP dx7400 - Microtower PC User Manual

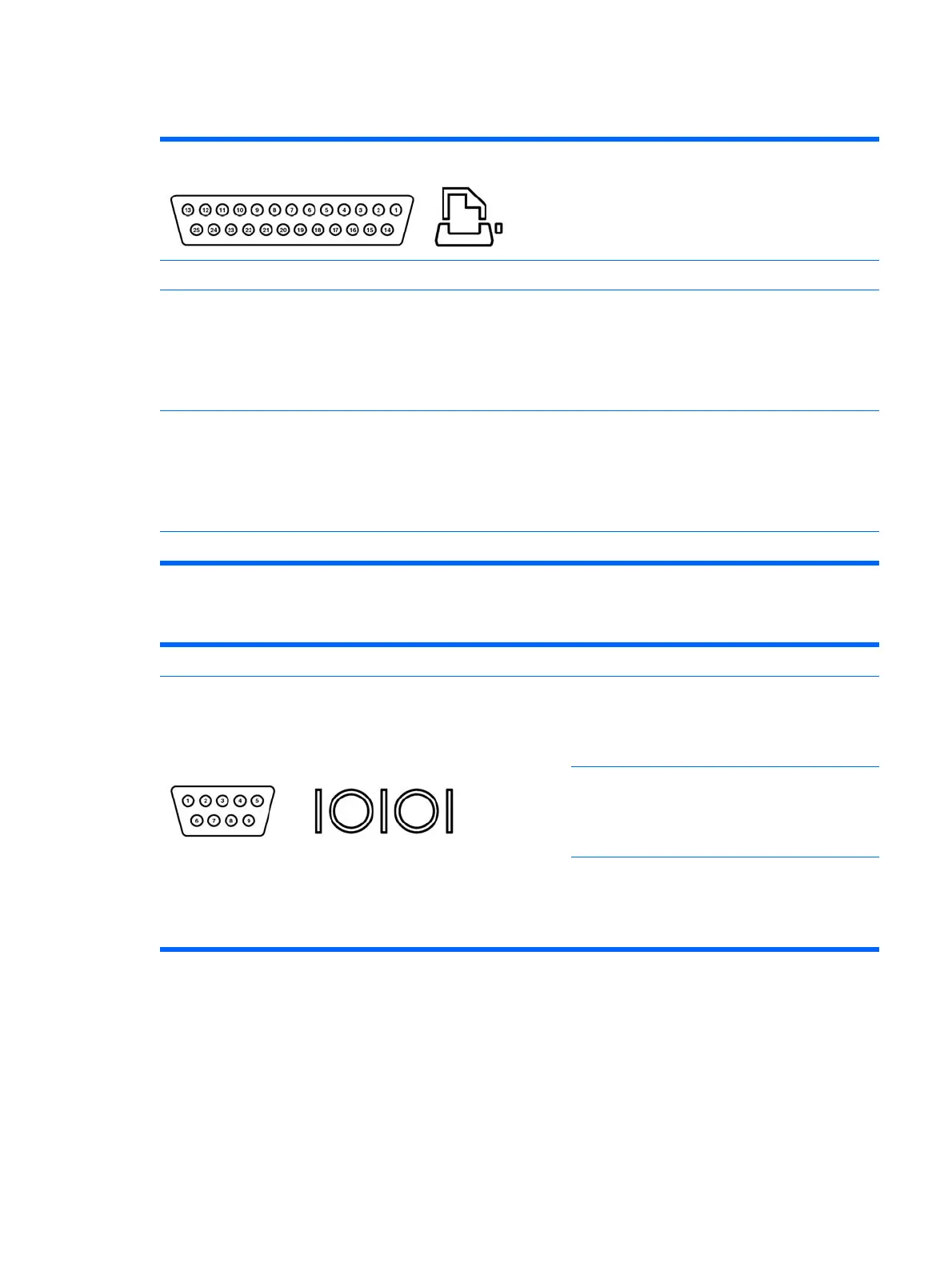

Parallel Interface
Connector and Icon
Pin Signal Pin Signal
1
2
3
4
Strobe
Data Bit 0
Data Bit 1
Data Bit 2
10
11
12
13
Acknowledge
Busy
Paper End
Select
5
6
7
8
Data Bit 3
Data Bit 4
Data Bit 5
Data Bit 6
14
15
16
17
Auto Linefeed
Error
Initialize Printer
Select IN
9 Data Bit 7 18–25 Signal Ground
Serial Interface, Powered and Non-Powered
Connector and Icon Pin Signal
1
2
3
Carrier Detect (12V if powered)
Receive Data
Transmit Data
4
5
6
Data Terminal Ready
Signal Ground
Data Set Ready
7
8
9
Request to Send
Clear to Send
Ring Indicator (5V if powered)
Parallel Interface 121

HP dx7400 - Microtower PC Specifications

General

Memory	Up to 8 GB DDR2 SDRAM
Audio	Integrated High Definition Audio
Power Supply	300W
Processor	Intel Core 2 Duo, Pentium Dual-Core, or Celeron
Storage	SATA Hard Drive
Optical Drive	DVD-ROM, DVD+/-RW
Graphics	Integrated Intel Graphics Media Accelerator 3100
Networking	Integrated Gigabit Ethernet
Expansion Slots	1 PCI Express x16
Ports	1 serial, 1 parallel, audio in/out
Operating System	Windows XP Professional
