A Connector Pin Assignments
This appendix contains the pin assignments for many computer and workstation connectors. Some of
these connectors may not be used on the product being serviced.

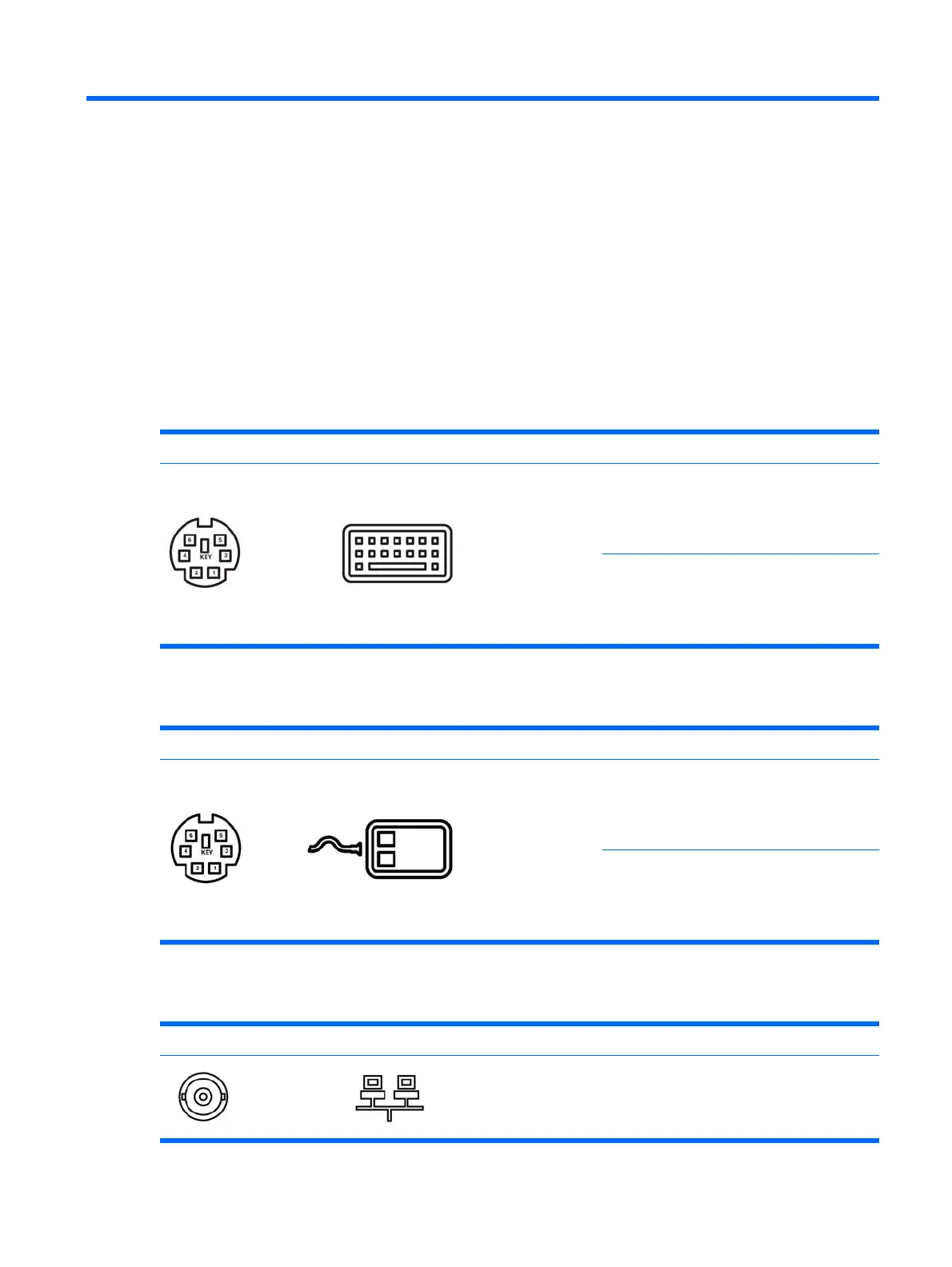

Keyboard
Connector and Icon Pin Signal
1
2
3
Data
Unused
Ground
4
5
6
+5 VDC
Clock
Unused
Mouse
Connector and Icon Pin Signal
1
2
3
Data
Unused
Ground
4
5
6
+5 VDC
Clock
Unused
Ethernet BNC
Connector and Icon Pin Signal
1
2
Data
Ground
Keyboard 119

HP dx7400 - Microtower PC Specifications

General

Memory	Up to 8 GB DDR2 SDRAM
Audio	Integrated High Definition Audio
Power Supply	300W
Processor	Intel Core 2 Duo, Pentium Dual-Core, or Celeron
Storage	SATA Hard Drive
Optical Drive	DVD-ROM, DVD+/-RW
Graphics	Integrated Intel Graphics Media Accelerator 3100
Networking	Integrated Gigabit Ethernet
Expansion Slots	1 PCI Express x16
Ports	1 serial, 1 parallel, audio in/out
Operating System	Windows XP Professional
