4. Insert the hard drive into the bay as follows:
CAUTION: Make sure the guide screws line up with the guide slots in the drive cage. The use
of unnecessary force when installing any drive into the drive bay may result in damage to the
drive.
●
If you are installing a hard drive into one of the lower two bays (bays 5 and 6), slide the
hard drive into the drive bay until it locks. The drivelock automatically secures the drive in
the bay.

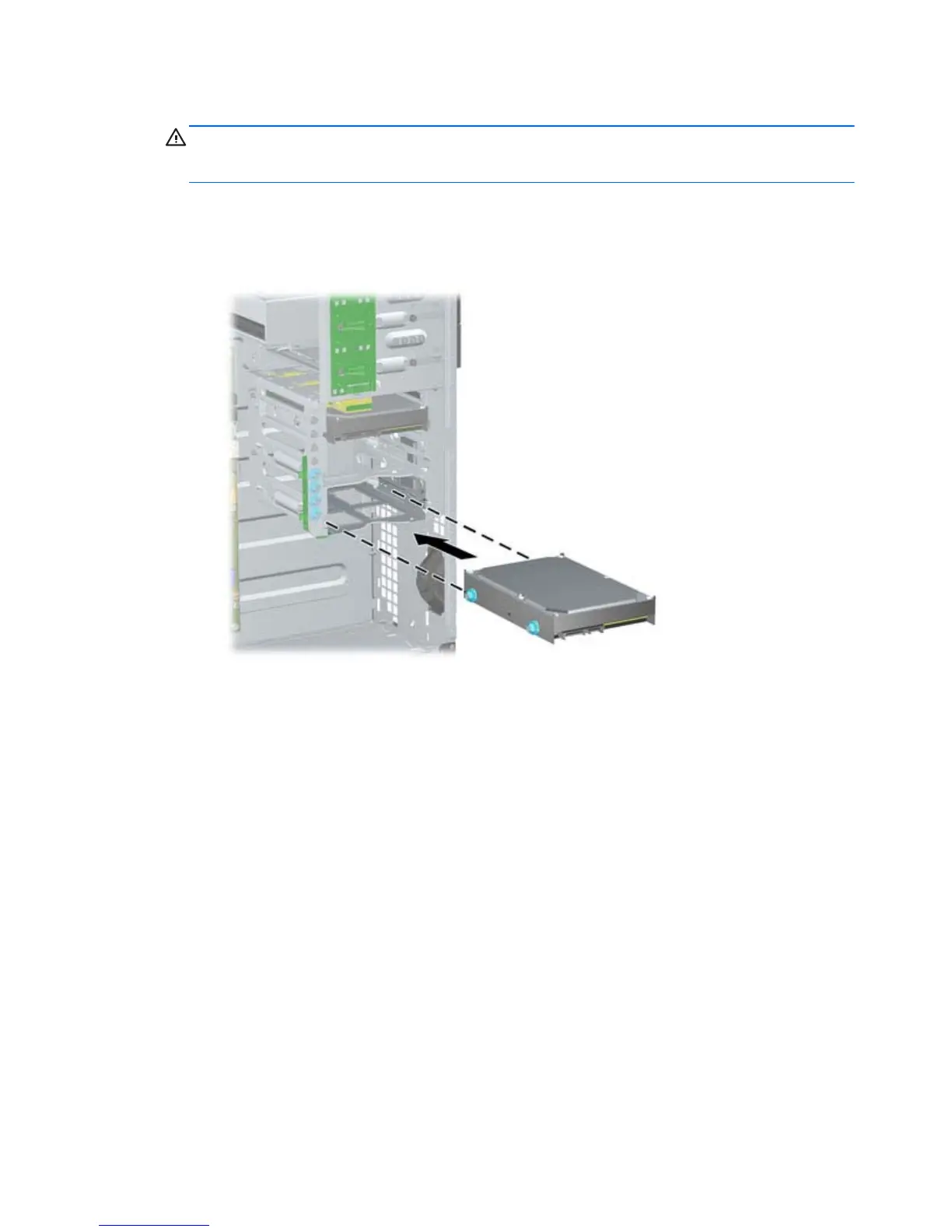

Figure 6-27 Installing a Hard Drive into the Lower Two Bays
102 Chapter 6 Removal and Replacement Procedures Convertible Minitower (CMT) Chassis
