WLAN Module
Description Spare part number
Intel Centrino Advanced-N 6205 (802.11a/b/g/n Wi-Fi wireless adapter) 652165-001
1. Prepare the computer for disassembly (Preparation for Disassembly on page 207).
2. Remove the computer access panel (
Access Panel on page 208).
3. Remove the optical drive (
Removing the Optical Drive on page 219).
4. Remove the hard drive (
Hard Drive on page 222).
5. Remove the optical drive rail (
Optical Drive Rail on page 227).
6. Remove the heat sink (
Heat sink on page 231).
7. Disconnect the two antenna cables from the connectors on the module (1).
8. Remove the two Torx T5 screws (2) that secure the module to the system board.

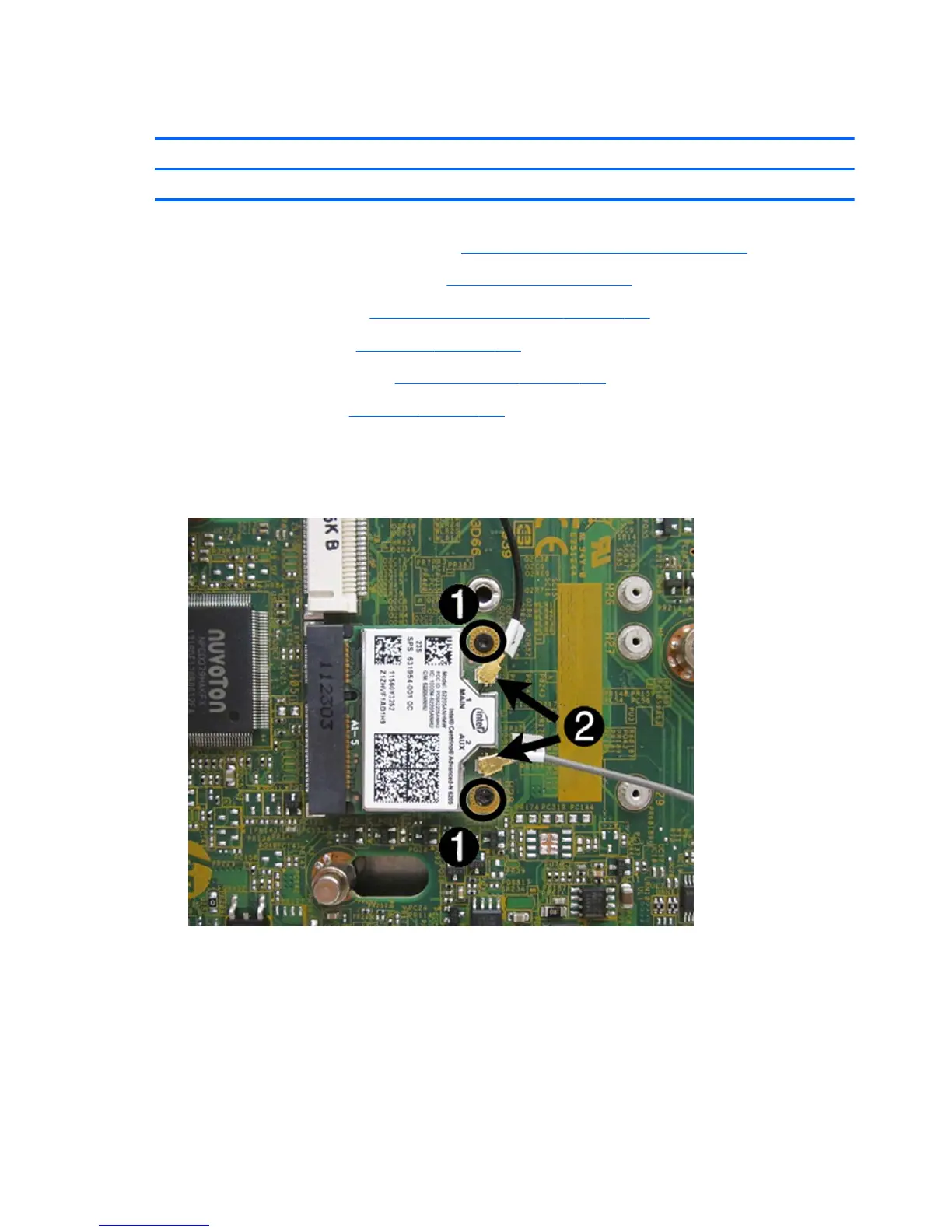

Figure 9-29 Removing the WLAN module
236 Chapter 9 Removal and Replacement Procedures Ultra-Slim Desktop (USDT) Chassis
