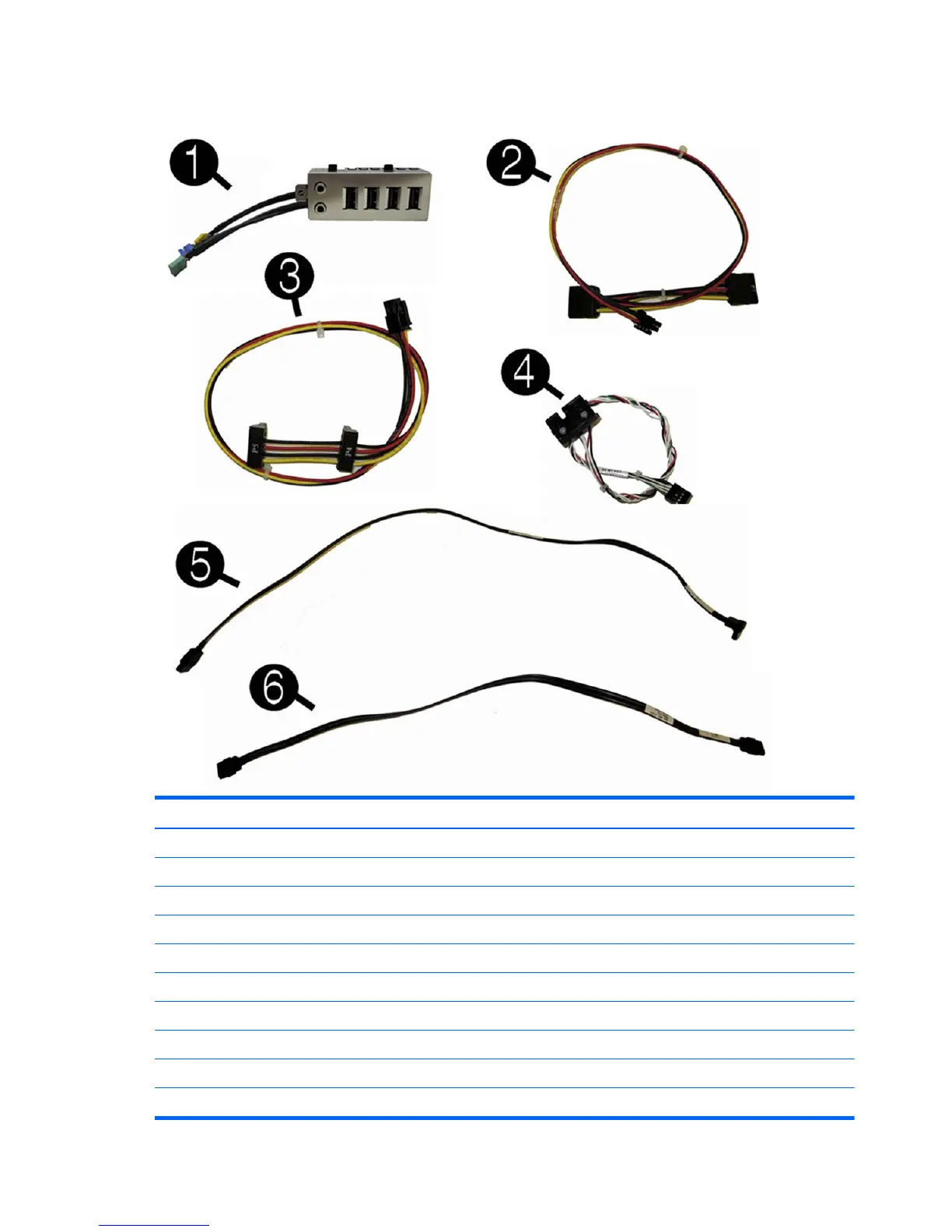

Cables

Item Description Spare part number

(1) Front I/O assembly 646827-001

(2) SATA optical drive power cable 646834-001

(3) SATA hard drive power cable 646833-001

(4) Power switch/LED assembly 646828-001

(5) SATA cable, 18 inch, 1 straight end, 1 angled end 639958-001

(6) SATA cable, 17.7 inch, 2 straight ends 639959-001

SATA cable, 18 inch, 1 straight end, 1 angled end (labeled; not illustrated) 646830-001

DMS-59 to dual VGA cable 463023-001

Adapter, DisplayPort to VGA 603250-001

Adapter, DisplayPort to DVI 484156-001

42 Chapter 4 Illustrated parts catalog
