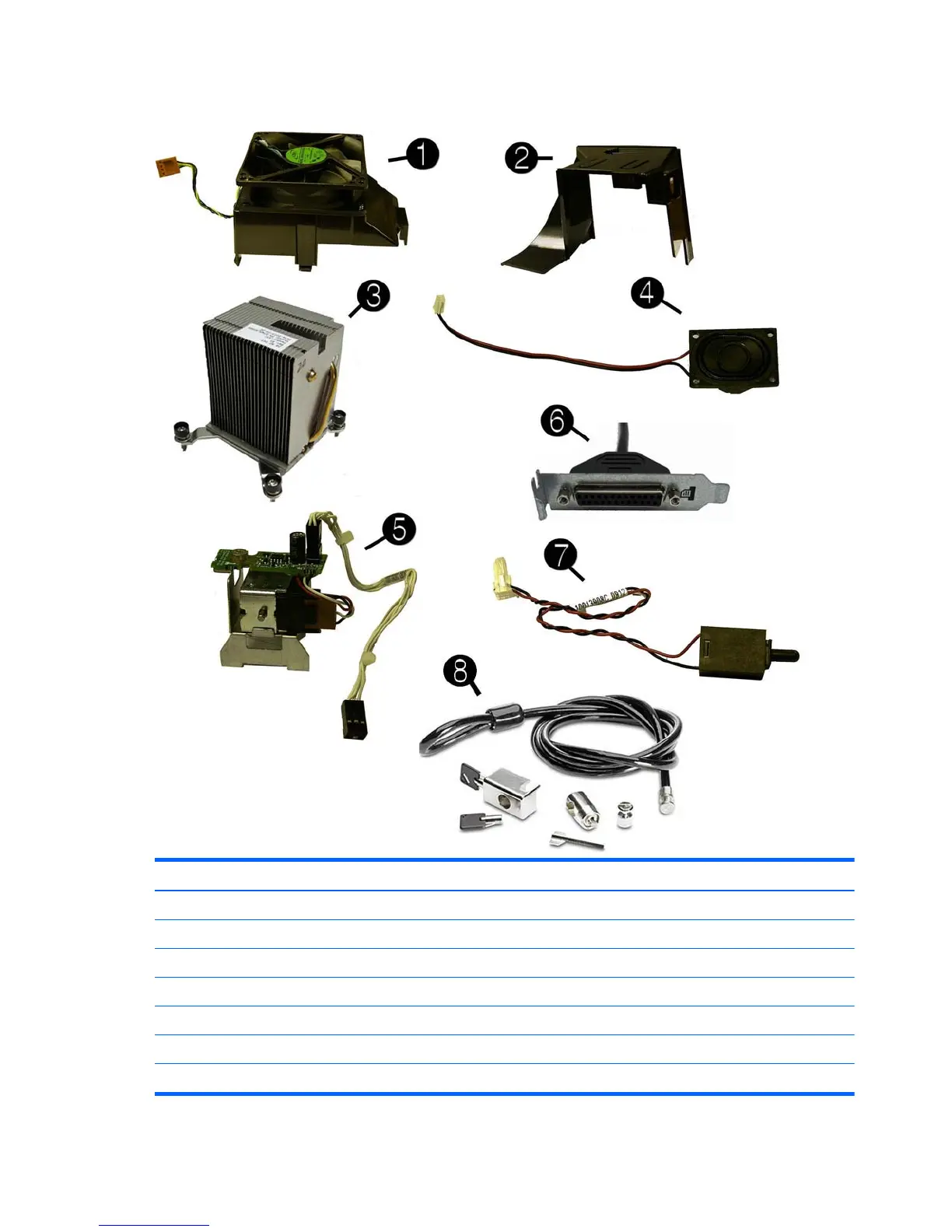

Misc parts

Item Description Spare part number

(1) Chassis fan 645327-001

(2) Fan duct (not illustrated) 636921-001

(3) Heat sink (includes replacement thermal material) 645326-001

(4) Speaker 636925-001

(5) Solenoid lock 641471-001

(6) Printer port, PCI card 638817-001

(7) Hood sensor 638816-001

52 Chapter 4 Illustrated parts catalog
