Front Fan Assembly

Description Spare part number

Front fan assembly 585884-001

1. Prepare the computer for disassembly (Preparation for Disassembly on page 75).

2. Remove the access panel (

Computer Access Panel on page 123).

3. Remove the cables from the clip on the top of the fan assembly.

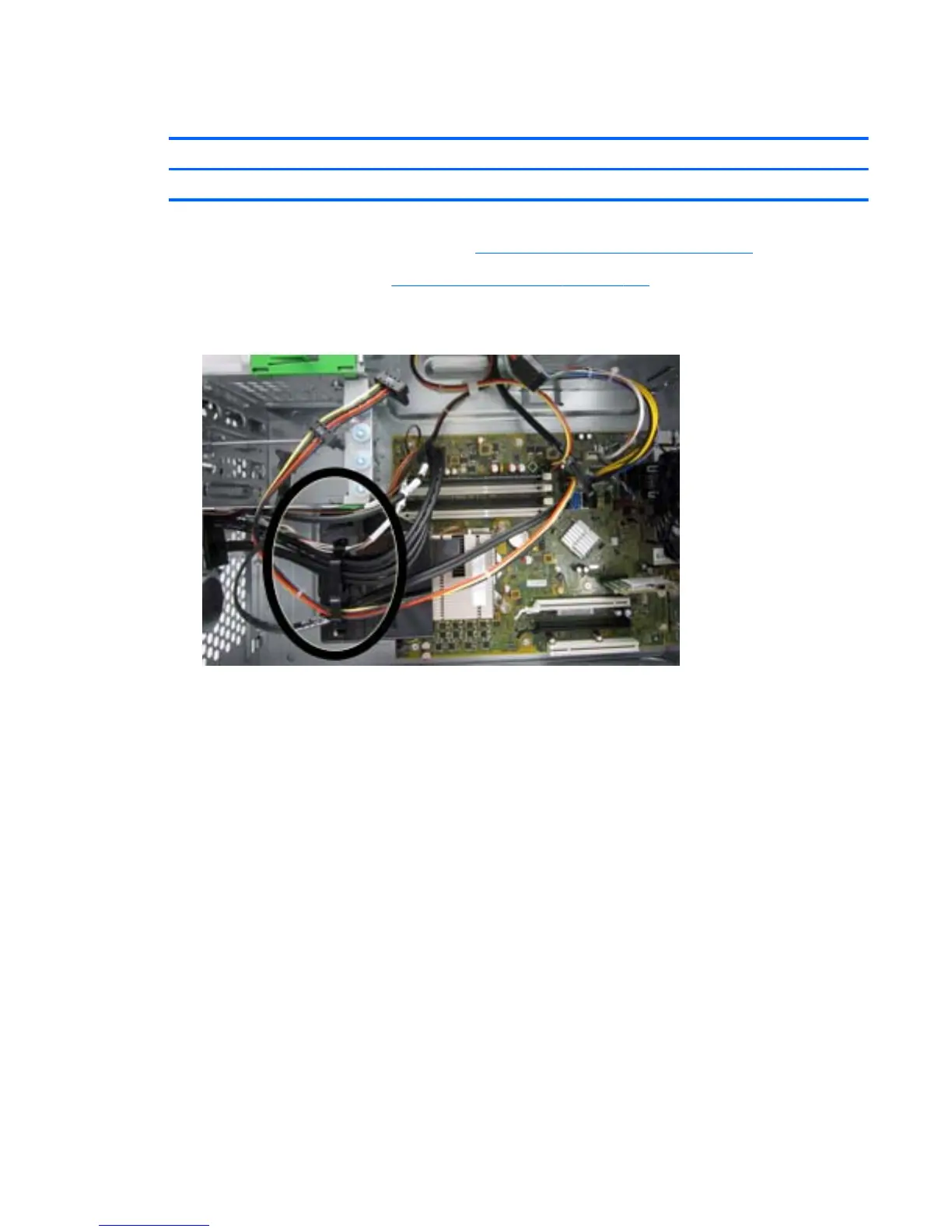

Figure 7-25 Removing the cables from atop the front fan assembly

4. Unplug the fan cable from the system board connector labeled CHFAN.

Front Fan Assembly 147
