HP Elite 8300 Series Convertible Minitower

To Next Page

To Previous Page

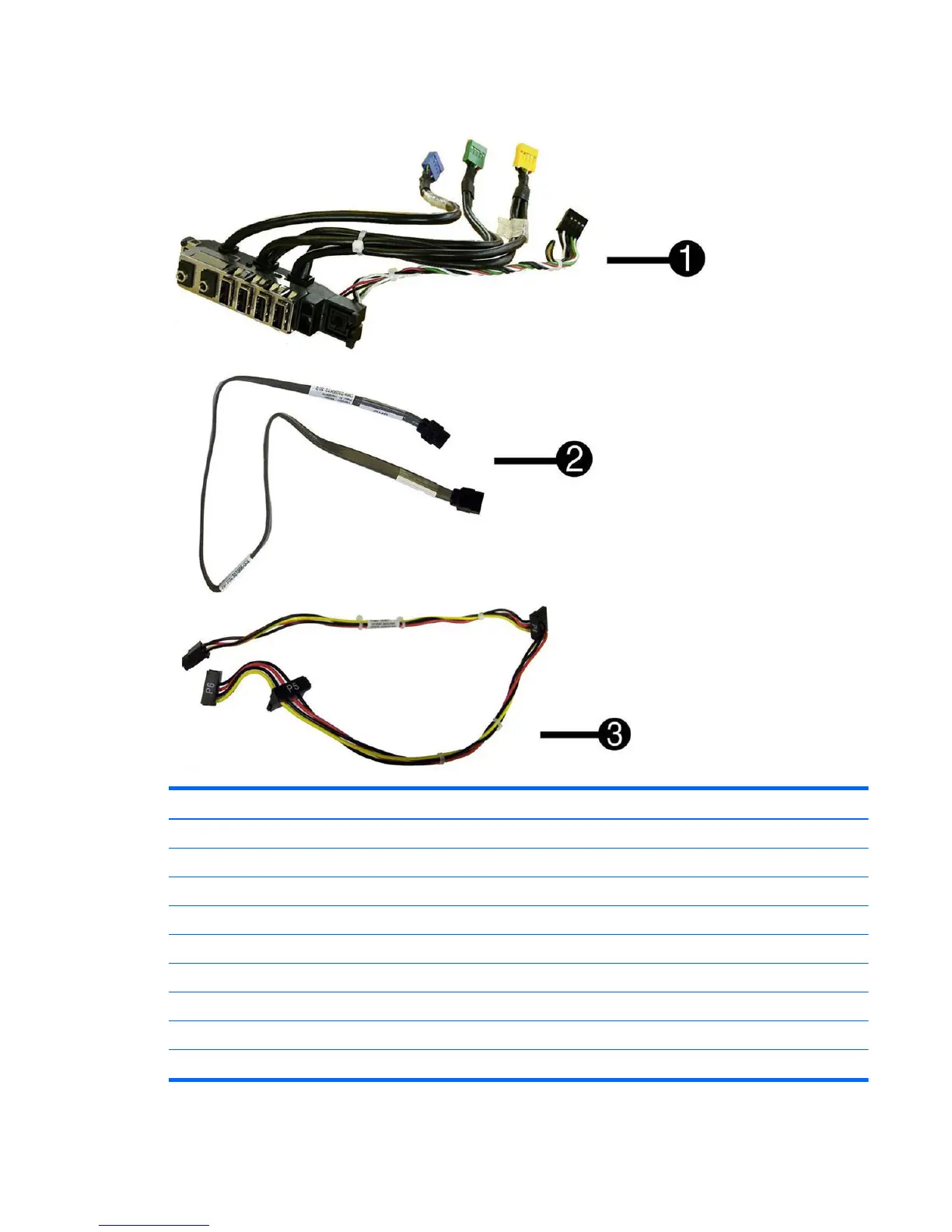

Cables

Item Description Spare part number

(1) Front I/O and power switch assembly 636926-001

(2) SATA cable, 19.5 inch, 2 straight ends 638813-001

(3) SATA drive power cable 636923-001

SATA cable, 25.2 inch, 1 straight end, 1 angled end (not illustrated) 638814-001

DMS-59 to dual VGA cable 463023-001

Adapter, DisplayPort to VGA 603250-001

Adapter, DisplayPort to DVI 484156-001

Adapter, DisplayPort to HDMI 617450-001

DisplayPort cable 487562-001
