Speaker
Description Spare part number
Speaker 645330-001
The speaker is mounted to the inside front of the chassis with two screws.
1. Prepare the computer for disassembly (
Preparation for Disassembly on page 75).
2. Remove the computer access panel (
Access Panel on page 76).
3. Disconnect the speaker wire from the white system board connector labeled SPKR (1).
4. From the inside of the unit, remove the two Torx T15 screws (2) that secure the speaker to the
front of the chassis.
5. Rotate the top of the speaker downward slightly, and then remove it from the chassis (3).

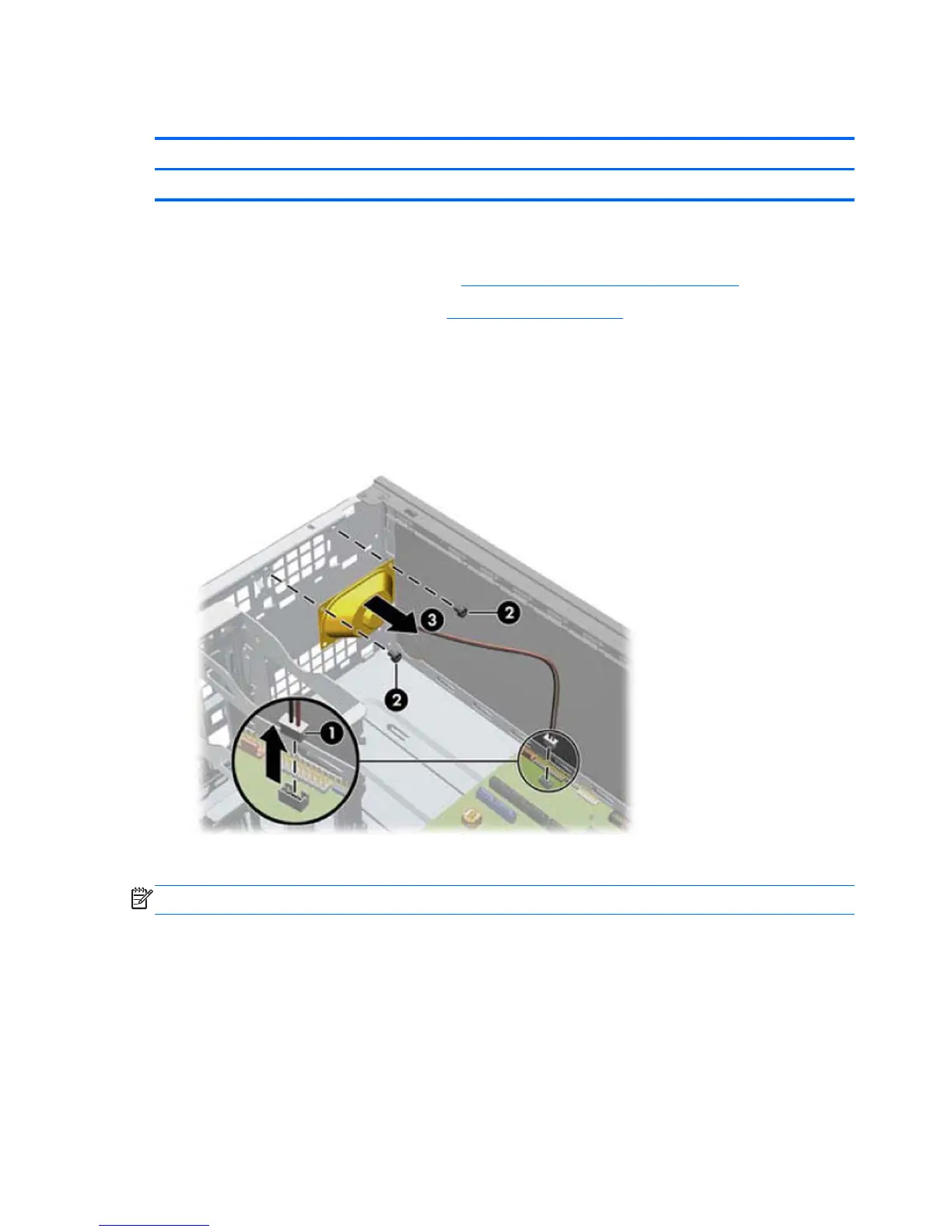

Figure 6-32 Removing the speaker
To install the speaker, reverse the removal procedures.
NOTE: When installing a speaker, place the wire on the side toward the side of the computer.
108 Chapter 6 Removal and Replacement Procedures Convertible Minitower (CMT) Chassis
