Item Description Spare part number

Adapter, DisplayPort to HDMI 617450-001

DisplayPort cable 487562-001

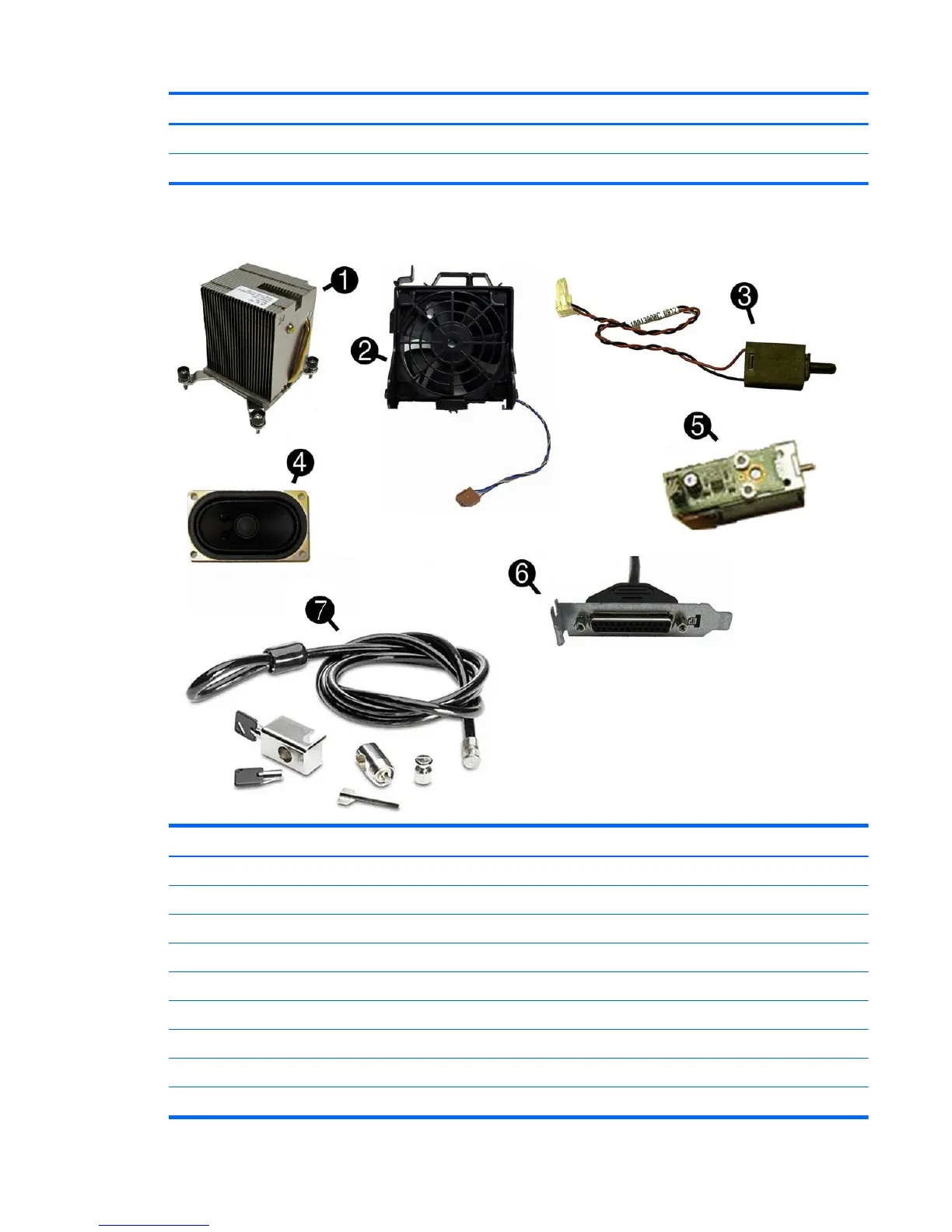

Misc parts

Item Description Spare part number

(1) Heat sink (includes replacement thermal material) 645326-001

(2) Fan with guard 585884-001

(3) Hood sensor 638816-001

(4) Speaker 645330-001

(5) Solenoid lock 641498-001

(6) Printer port, PCI card (not illustrated) 638817-001

(7) Clamp lock, includes universal cable (plate not included; not illustrated) 508987-001

Rear chassis fan 636922-001

Hard drive conversion bracket (not illustrated) 397117-001

Microtower (MT) chassis spare parts 43
