Fan duct
Description Spare part number
Fan duct 636921-001
The fan duct sits between the front fan and the heat sink.
1. Prepare the computer for disassembly (
Preparation for Disassembly on page 163).
2. Remove the access panel (
Access Panel on page 164).
3. Lift the fan duct straight up out of the chassis.

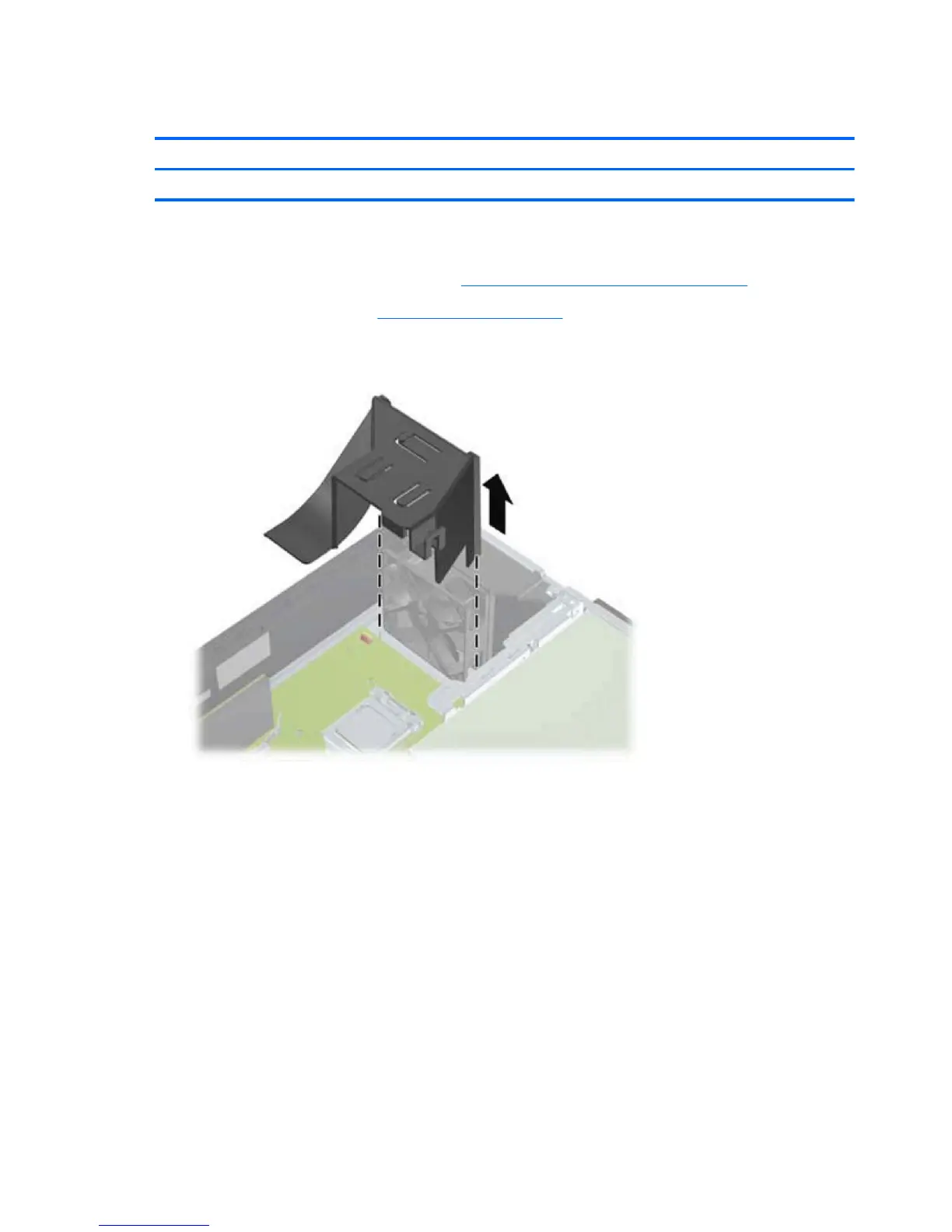

Figure 8-28 Removing the fan duct
To install the fan duct, reverse the removal procedure.
190 Chapter 8 Removal and Replacement Procedures Small Form Factor (SFF) Chassis
