Optical Drive Rail
Description Spare part number
Optical drive rail (green plastic piece on drive) 594219-001
The optical drive rail sits behind the USB ports on the front of the chassis.
1. Prepare the computer for disassembly (
Preparation for Disassembly on page 207).
2. Remove the computer access panel (
Access Panel on page 208).
3. Remove the optical drive (
Removing the Optical Drive on page 219).
4. Remove the hard drive (
Hard Drive on page 222).
5. Remove the two Torx screws that secure the rail to the chassis (1), lift the tab (2) on the rail,
slide the rail toward the rear of the unit (3), and then pull the rail up and out of the chassis.

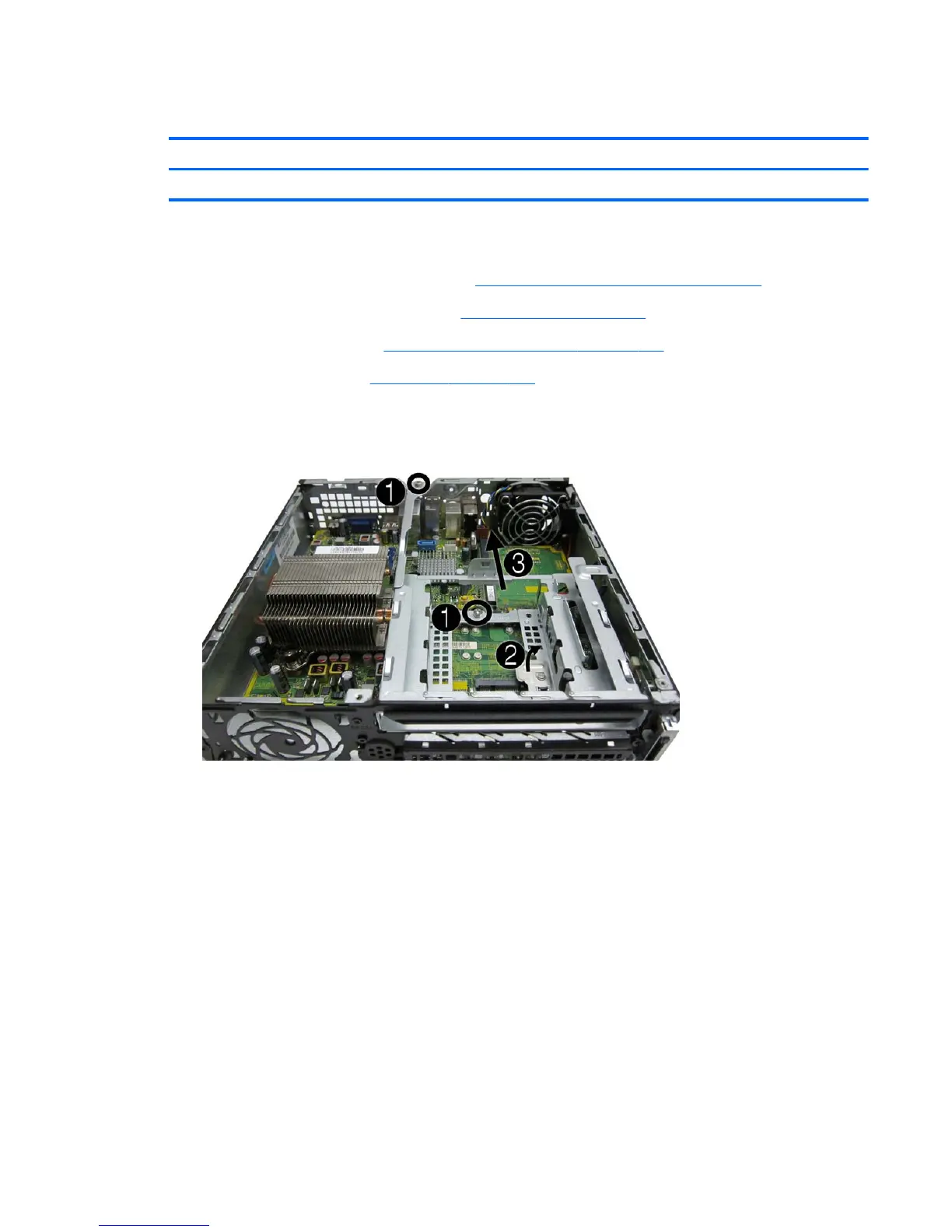

Figure 9-21 Removing the optical drive rail
To install the optical drive rail, reverse the removal procedures.
Optical Drive Rail 227
