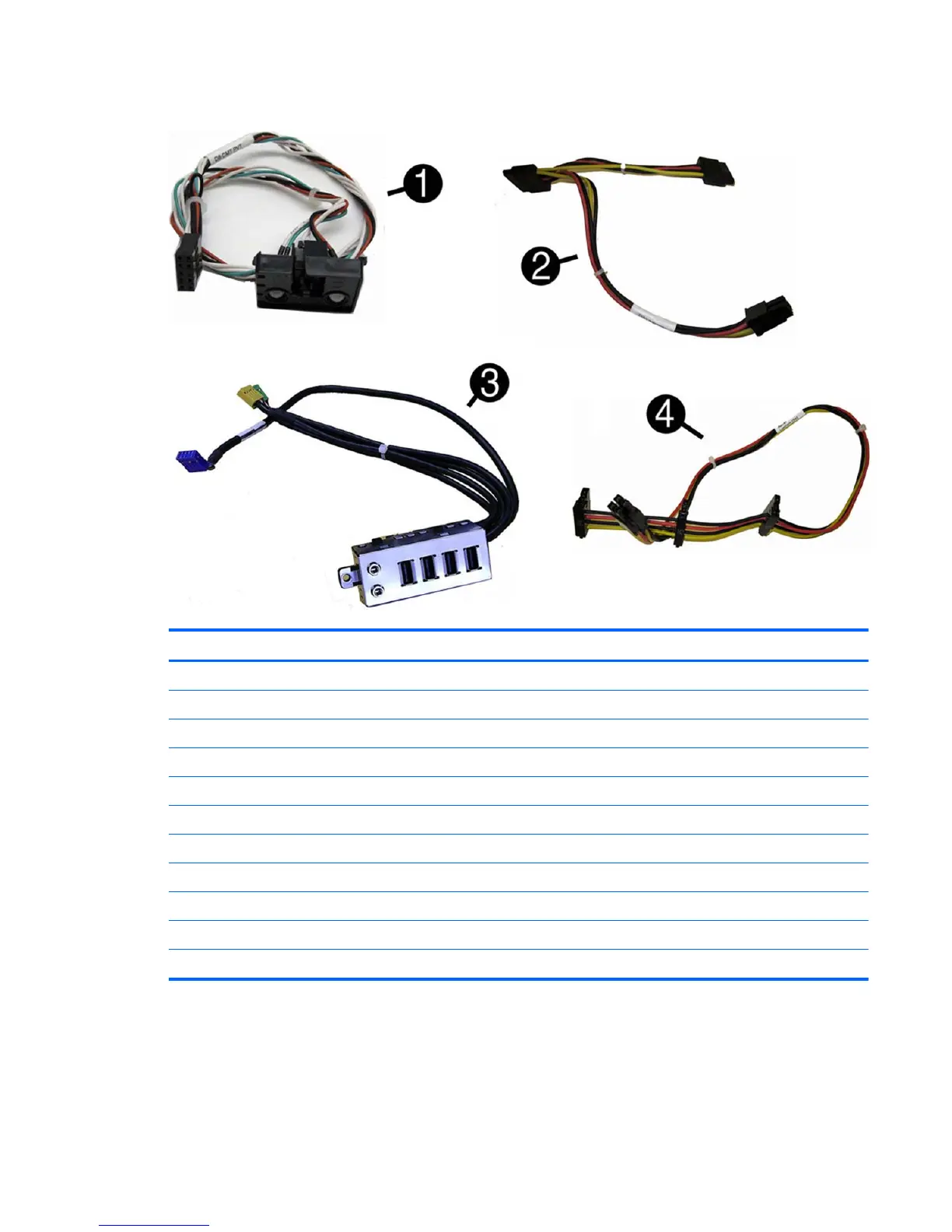

Cables

Item Description Spare part number

(1) Power switch/LED assembly 646820-001

(2) SATA optical drive power cable 646832-001

(3) Front I/O assembly 646821-001

(4) SATA hard drive power cable 646831-001

SATA cable, 18 inch, 1 straight end, 1 angled end (not illustrated) 639958-001

SATA cable, 17.7 inch, 2 straight ends (not illustrated) 639959-001

DMS-59 to dual VGA cable 463023-001

Adapter, DisplayPort to VGA 603250-001

Adapter, DisplayPort to DVI 484156-001

Adapter, DisplayPort to HDMI 617450-001

DisplayPort cable 487562-001

Convertible minitower (CMT) chassis spare parts 33
