Front Bezel

Description Spare part number

Front bezel 689383-001

1. Prepare the computer for disassembly (Preparation for Disassembly on page 207).

2. Remove the computer access panel (

Access Panel on page 208).

3. Lift up the three tabs on the side of the bezel (1), then rotate the bezel off the chassis (2).

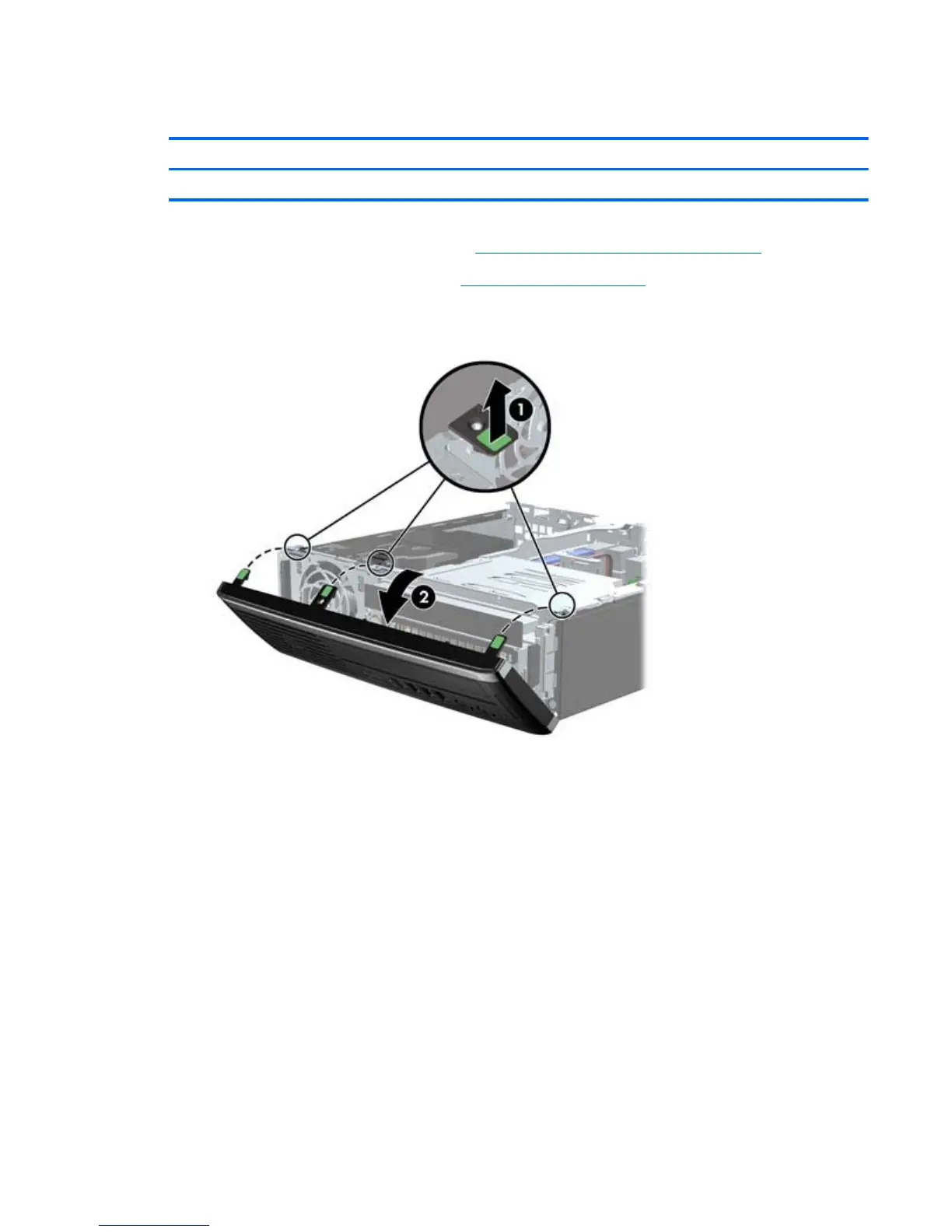

Figure 9-2 Removing the front bezel

To install the front bezel, reverse the removal procedure.

Front Bezel 209
