5. Lift the fan sink from the processor (2).

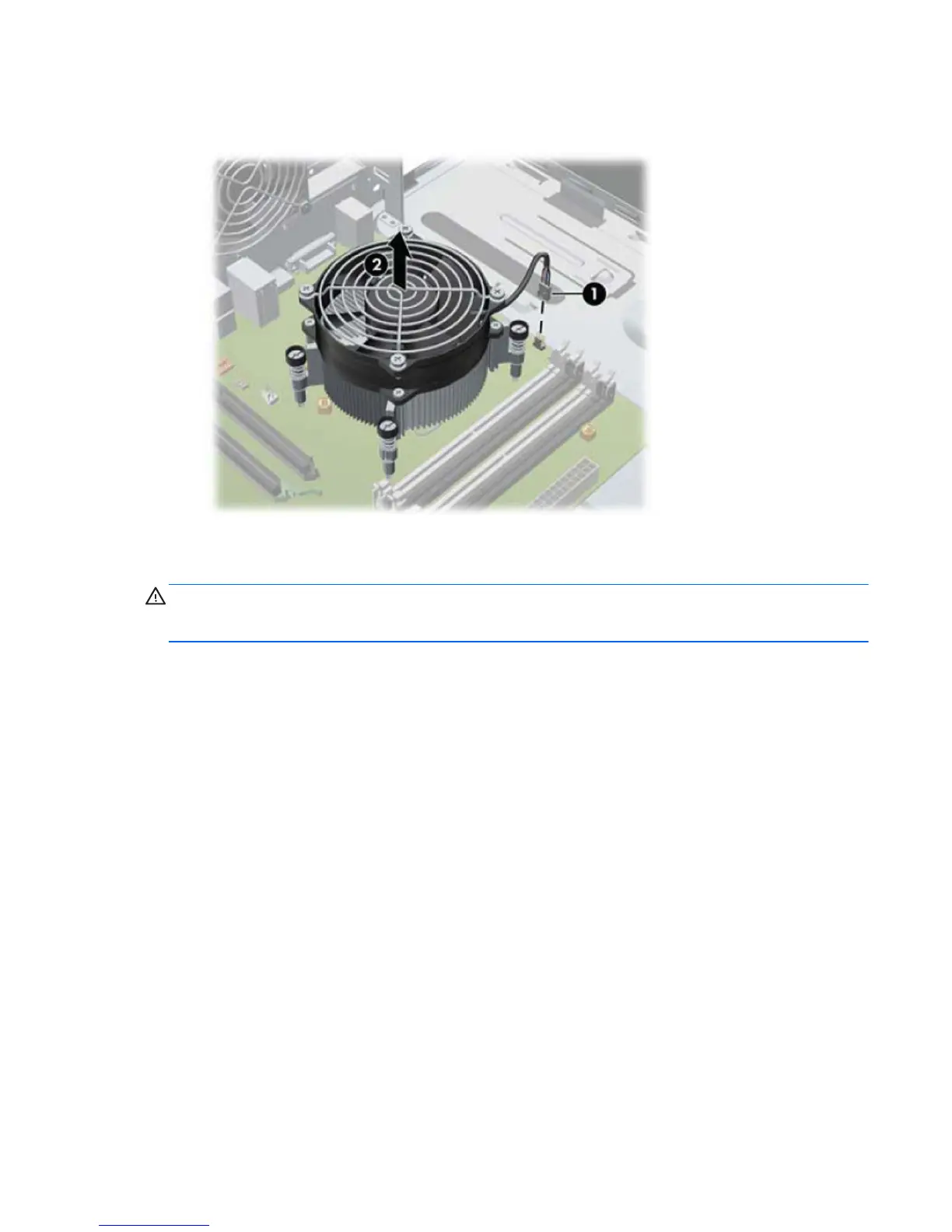

Figure 6-35 Removing the fan sink
When reinstalling the fan sink, make sure that its bottom has been cleaned with an alcohol wipe and
fresh thermal grease has been applied to the top of the processor.
CAUTION: Fan sink retaining screws should be tightened in diagonally opposite pairs (as in an X)
to evenly seat the fan sink on the processor. Failure to do so could result in damage that requires
replacing the system board.
Fan sink 111
