8. Route the cables through the slots beneath the drive cage, rotate the assembly into the chassis

(2), and then remove the assembly from the computer.

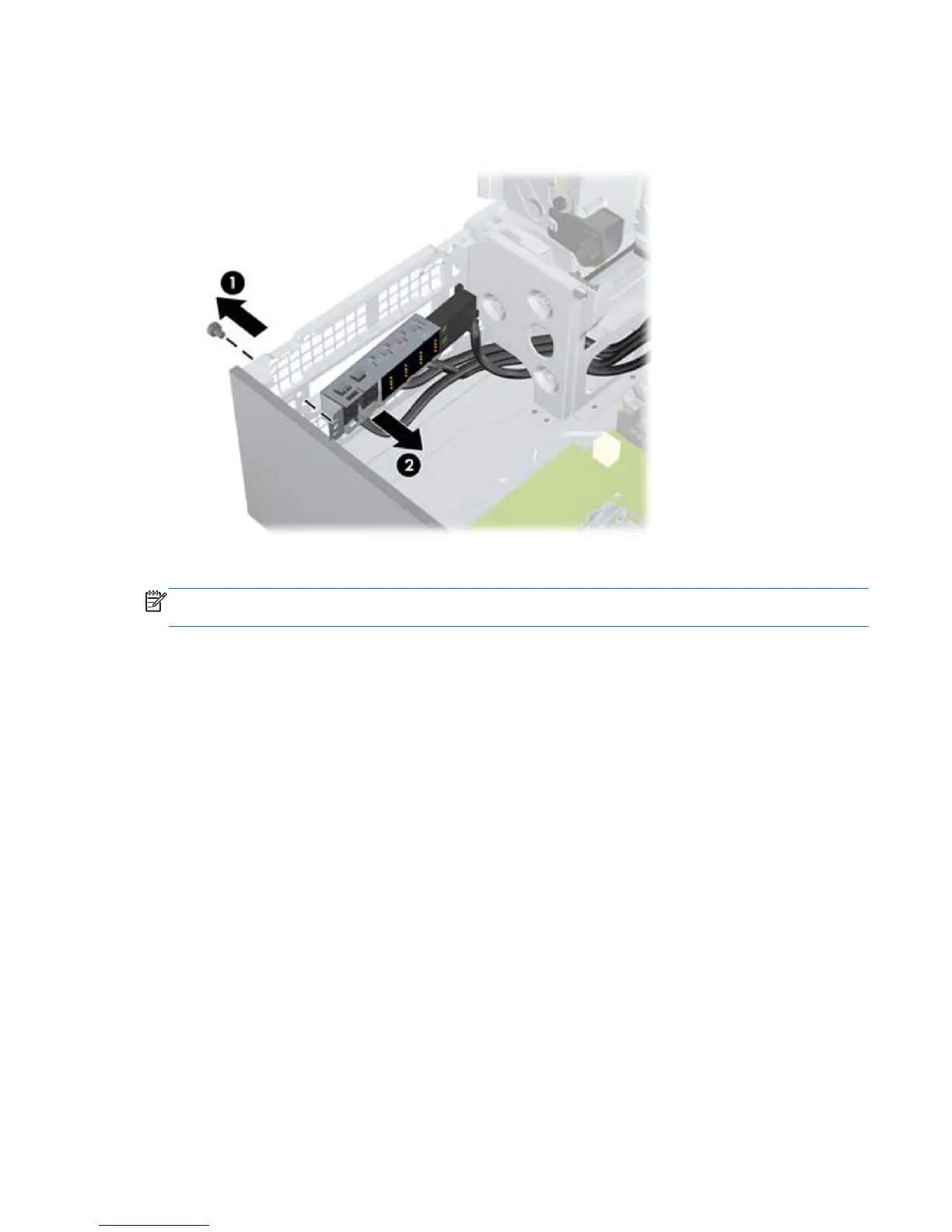

Figure 8-33 Removing the front I/O, power switch/LED assembly screw

To install the front I/O and power switch assembly, reverse the removal procedure.

NOTE: Be sure to correctly route the cables beneath the drive cage when reinstalling the assembly.

Proper cable routing prevents damage to the cables and allows the drive cage to close properly.

Front I/O, Power Switch Assembly 195
