10. To remove the front antenna, from the inside of the front of the chassis, remove the antenna
from the clips built into the base pan.

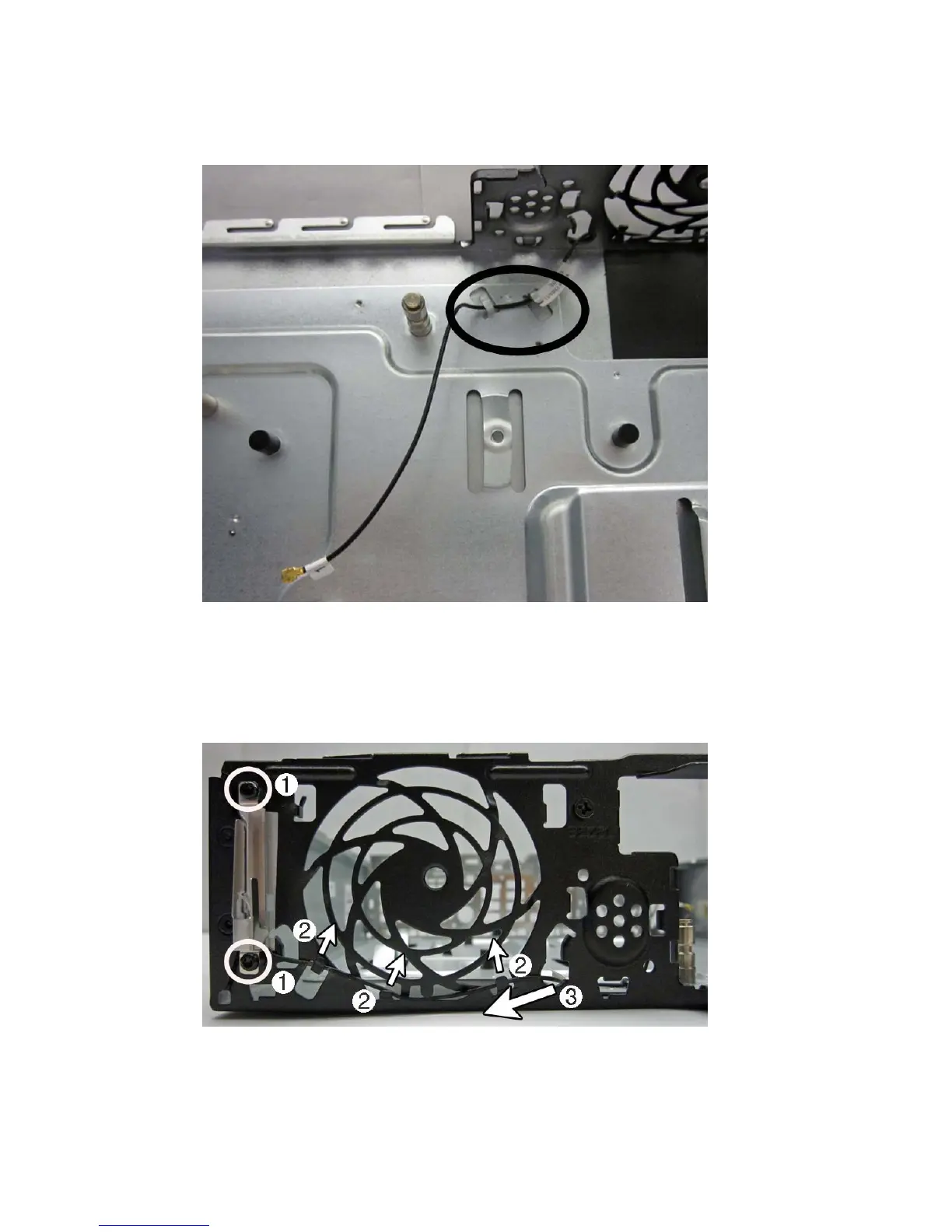

Figure 9-39 Removing the front antenna – inside
11. From the outside of the front of the chassis, remove the two Torx T8 screws (1) that secure the
antenna to the chassis.
12. Pull the antenna out of the clips on the front of the chassis (2), and then pull the antenna out of
the hole it routes through (3).
Figure 9-40 Removing the front antenna – outside
Antennas 245
