HP Elite 8300 Series Convertible Minitower

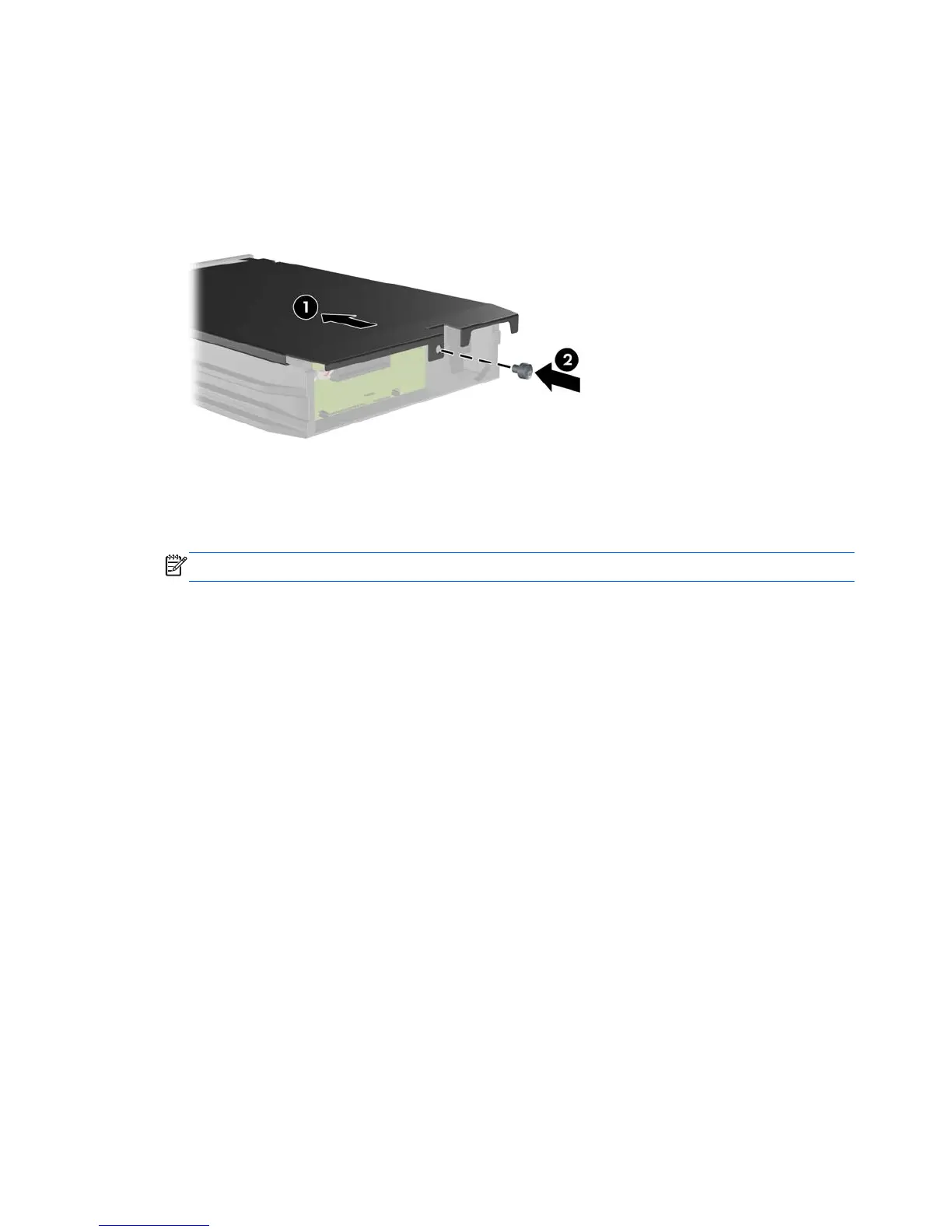

9. Slide the cover on the carrier (1) and replace the screw on the rear of the carrier to secure the
cover in place (2).
Figure B-8 Replacing the Carrier Cover
10. Slide the hard drive carrier into the enclosure on the computer and lock it with the key provided.
NOTE: The carrier must be locked for power to be supplied to the hard drive.
326 Appendix B Removing and Replacing a Removable 3.5-inch SATA Hard Drive
