Table 5-1 Bottom cover descriptions and part numbers (continued)
Description Spare part number
For use with system boards equipped with a 15 W processor N14777-001
Before removing the bottom cover, prepare the computer for disassembly (see Preparation for disassembly on
page 39).

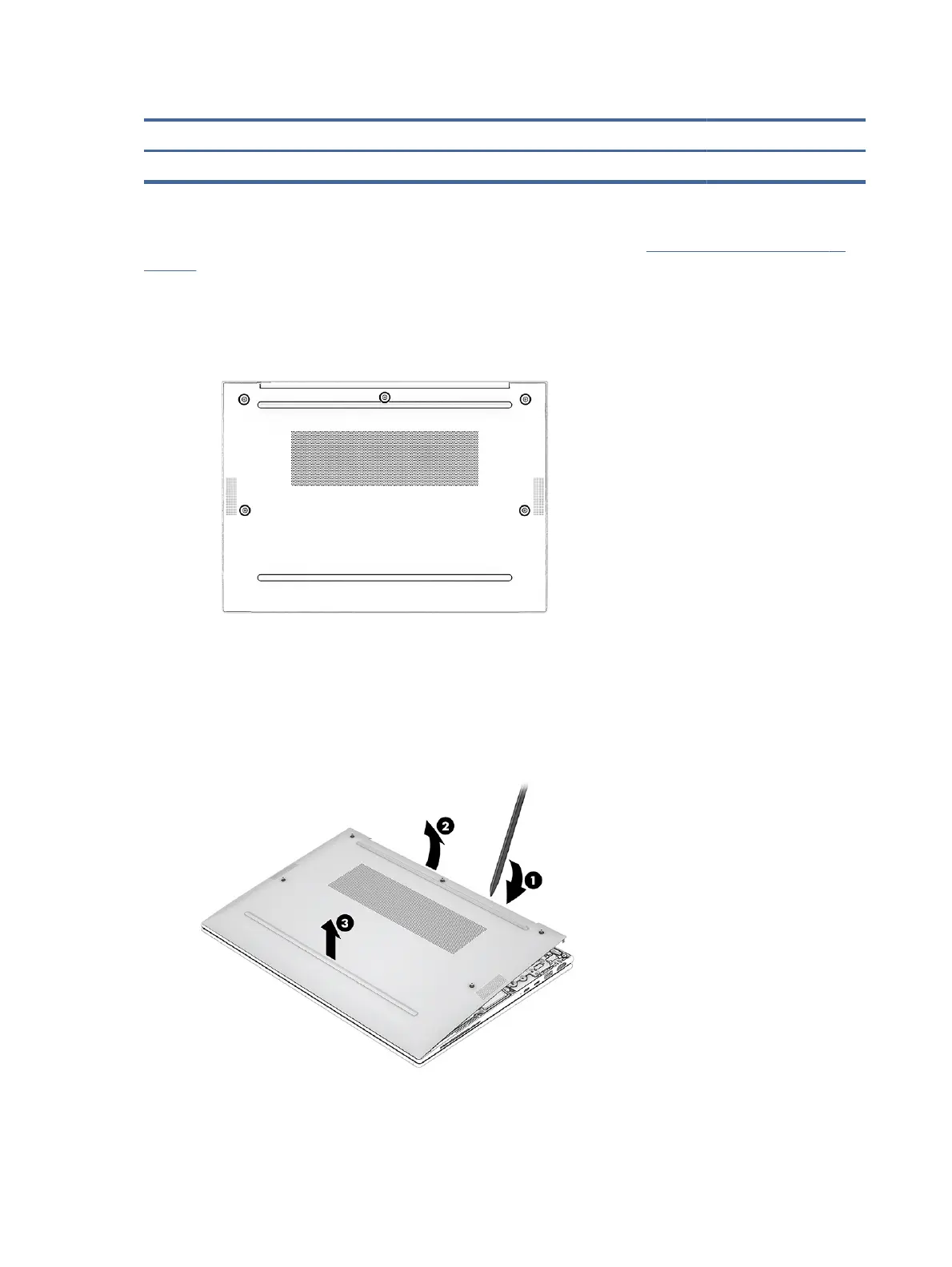

Remove the bottom cover:
1. Loosen the ve Phillips screws that secure the bottom cover to the computer.
2. Use a nonmarking, nonconductive tool (1) to separate the rear edge of the bottom cover (2) from the
computer.
3. Remove the bottom cover (3) from the computer.
40 Chapter 5Removal and replacement procedures for authorized service provider parts
