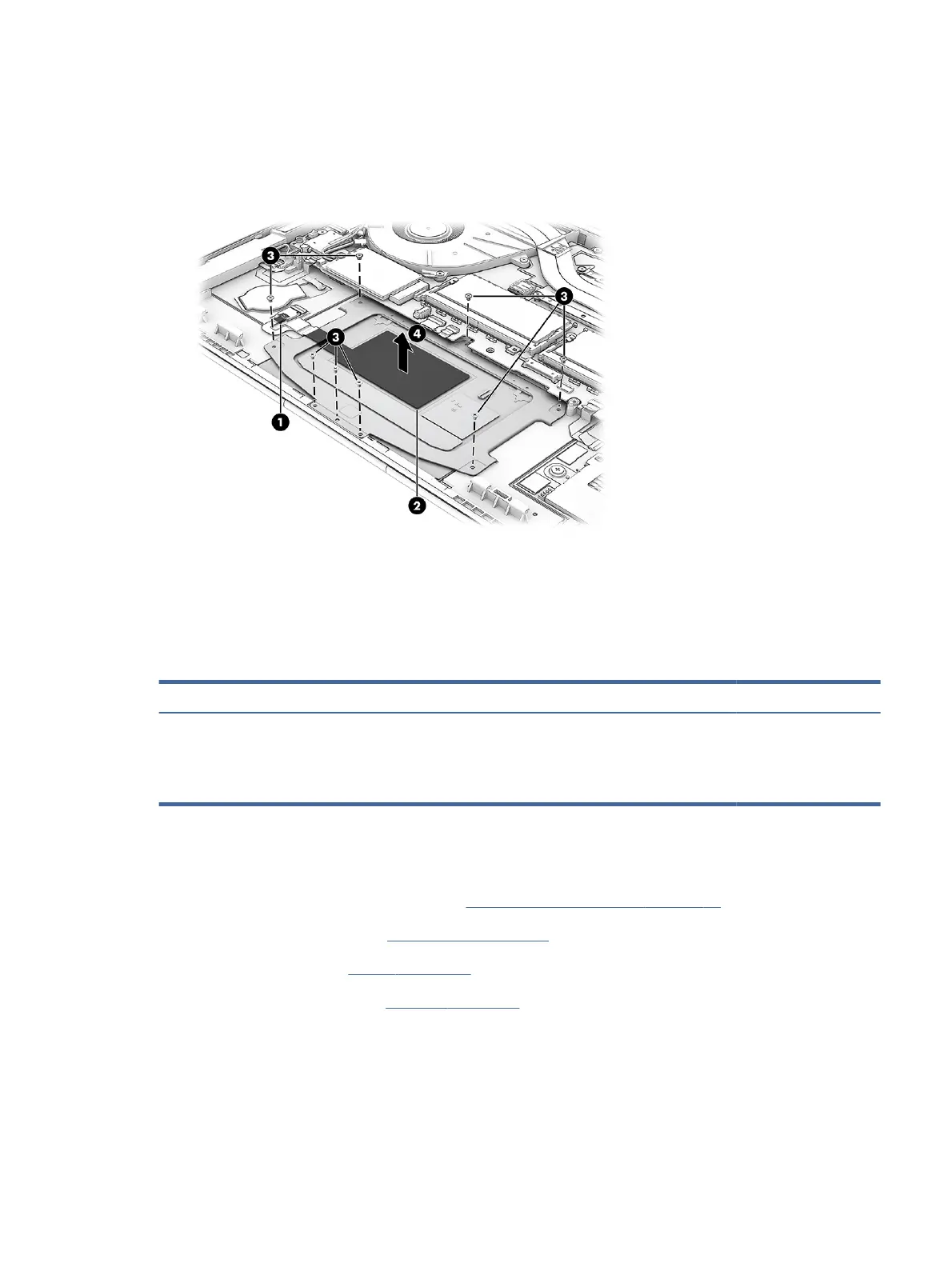

2. Detach the NFC module antenna (2) from the top cover/keyboard and touchpad. (The NFC module antenna
is attached to the top cover/keyboard and touchpad with double-sided adhesive.)
3. Remove the eight Phillips M1.5 × 2.2 screws (3) that secure the touchpad to the computer.
4. Remove the touchpad (4) from the computer.
To install the touchpad, reverse the removal procedure.
Fingerprint reader
To remove the ngerprint reader, use this procedure and illustration.
Table 5-13
Fingerprint reader description and part number
Description Spare part number
Fingerprint reader
NOTE: The ngerprint reader spare part kit does not include the ngerprint reader bracket or the ngerprint
reader cable. The ngerprint reader bracket is included in the Braclet Kit, spare part number N13682-001. The
ngerprint reader cable is included in the Cable Kit, spare part number N18760-001.
N02325-001
Before removing the ngerprint reader, follow these steps:
1. Prepare the computer for disassembly (see Preparation for disassembly on page 39).
2. Remove the bottom cover (see Bottom cover on page 39).
3. Remove the battery (see Battery on page 41).
4. Remove the right speaker (see Speakers on page 49).
Remove the ngerprint reader:
1. Release the ZIF connector (1) to which the ngerprint reader cable is connected, and then disconnect the
ngerprint reader cable from the system board.
2. Detach the ngerprint reader cable (2) from the top cover/keyboard. (The ngerprint reader cable is
attached to the top cover/keyboard with double-sided adhesive.)
Fingerprint reader
71
