a. Remove the display assembly.
b. Remove the display bezel.
c. Remove the hinge cover.
d. Remove the hinges.
e. Remove the display panel.
f. Remove the webcam module cable.
g. Remove the webcam module.

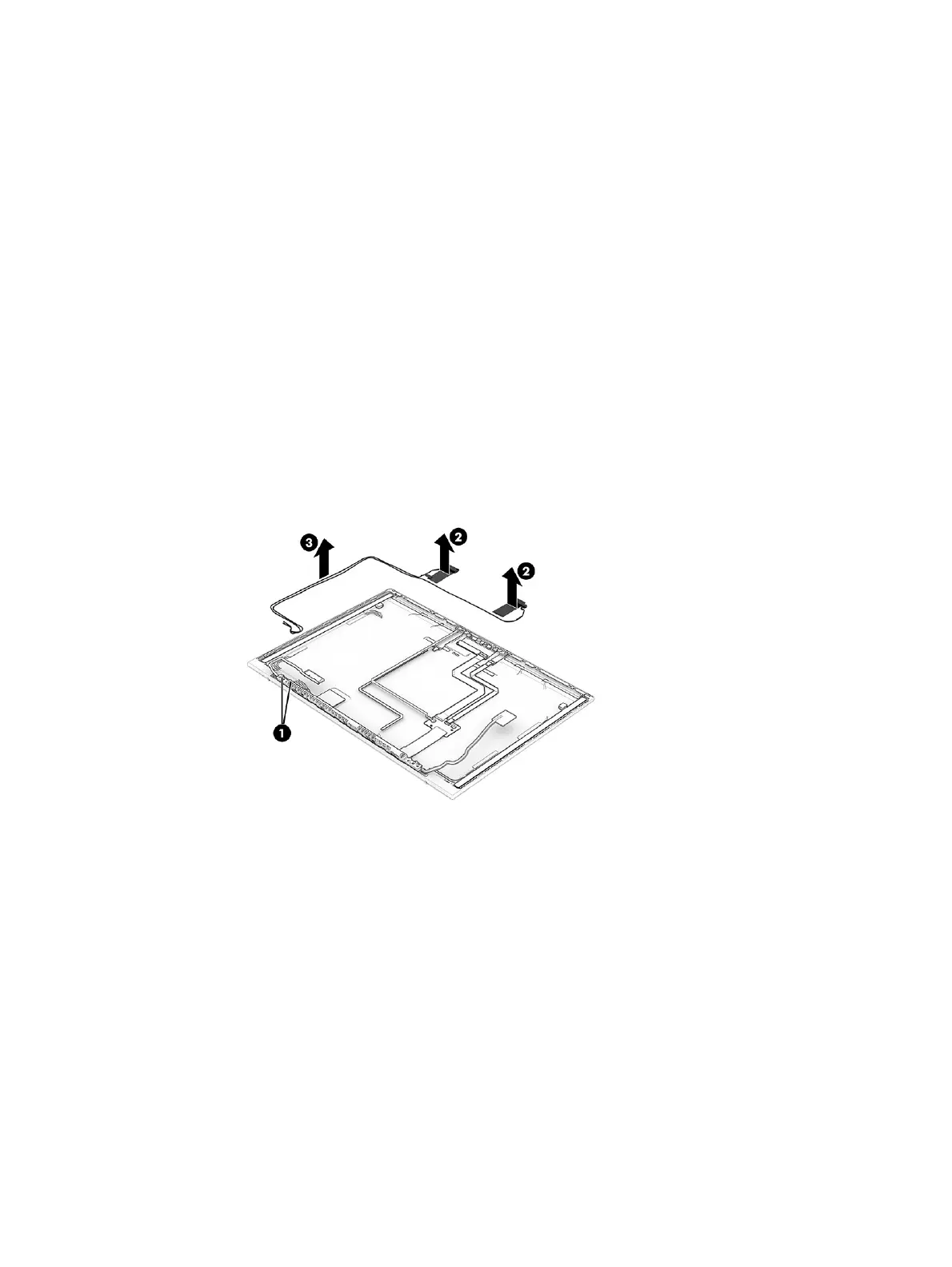

h. Release the WLAN antenna cables from the routing channels (1) that are built into the display back
cover.
i. Detach the WLAN antenna transceivers (2) from the display back cover. (The WLAN antenna
transceivers are attached to the display back cover with double-sided adhesive.)
j. Remove the WLAN antennas (3).
The WLAN antennas are included in the Display Antenna Kit, spare part number N16105-001.
19. If you need to remove the WWAN antennas:
a. Remove the display assembly.
b. Remove the display bezel.
c. Remove the hinge cover.
d. Remove the hinges.
e. Remove the display panel.
f. Remove the webcam module cable.
g. Remove the webcam module.
h. Release the WWAN antenna cables from the routing channels (1) that are built into the display back
cover.
