7. Remove the access panel.

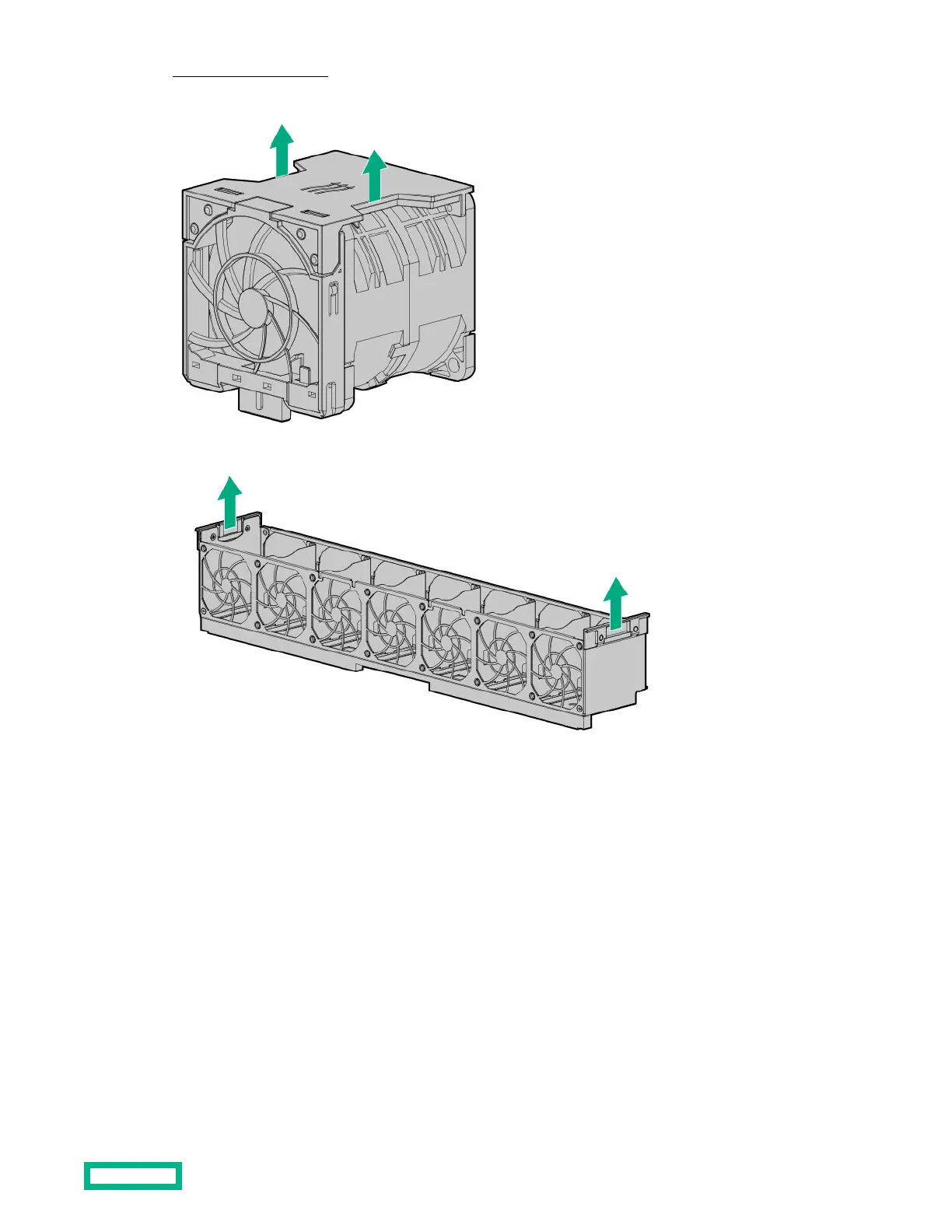

8. Remove all fans.
9.
Grip both sides of the fan cage, and then lift the cage from the chassis.
10.
Disconnect all cables from the drive backplane.
11.
Remove the drive backplane:
a.
Remove the drive backplane screws (callout 1).
b. Tilt the top side of the backplane away from the drive cage (callout 2).
c. Remove the drive backplane (callout 3).
• 4 SFF U.3 drive backplane
Removal and replacement procedures
45
