To replace the component, reverse the removal procedure.
Removing and replacing a drive backplane
Prerequisites
Before you perform this procedure, make sure that you have a T-15 Torx screwdriver available.
Procedure
1.
Power down the servers.
2.
Remove all power:
a.
Disconnect each power cord from the power source.
b.
Disconnect each power cord from the chassis.
3.
If installed, disconnect the tube set.
4.
Disconnect all peripheral cables from the servers and chassis.
5.

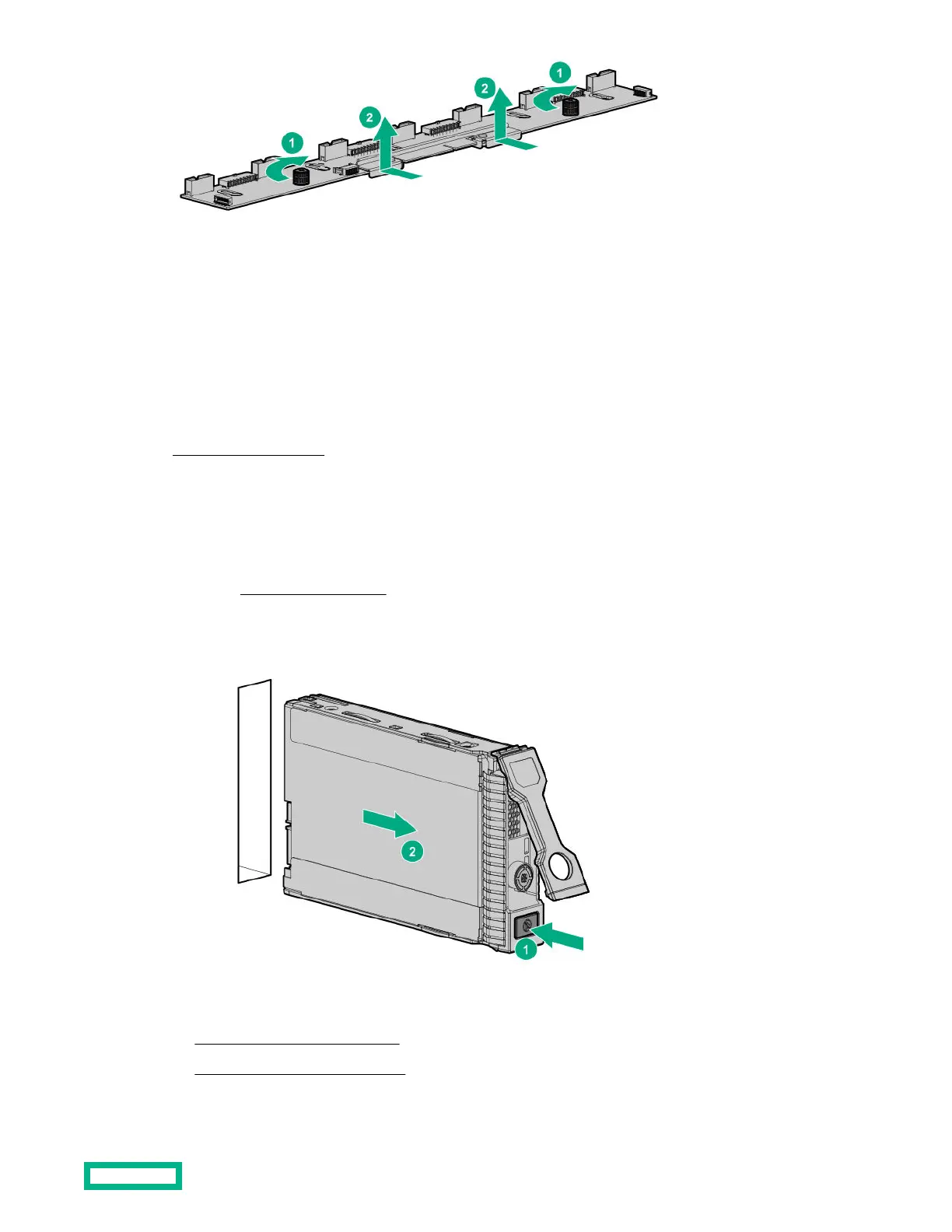

Remove the drives installed in the drive box where the failed drive backplane is located.
6. Do one of the following:
• Extend the chassis from the rack.
• Remove the chassis from the rack.
