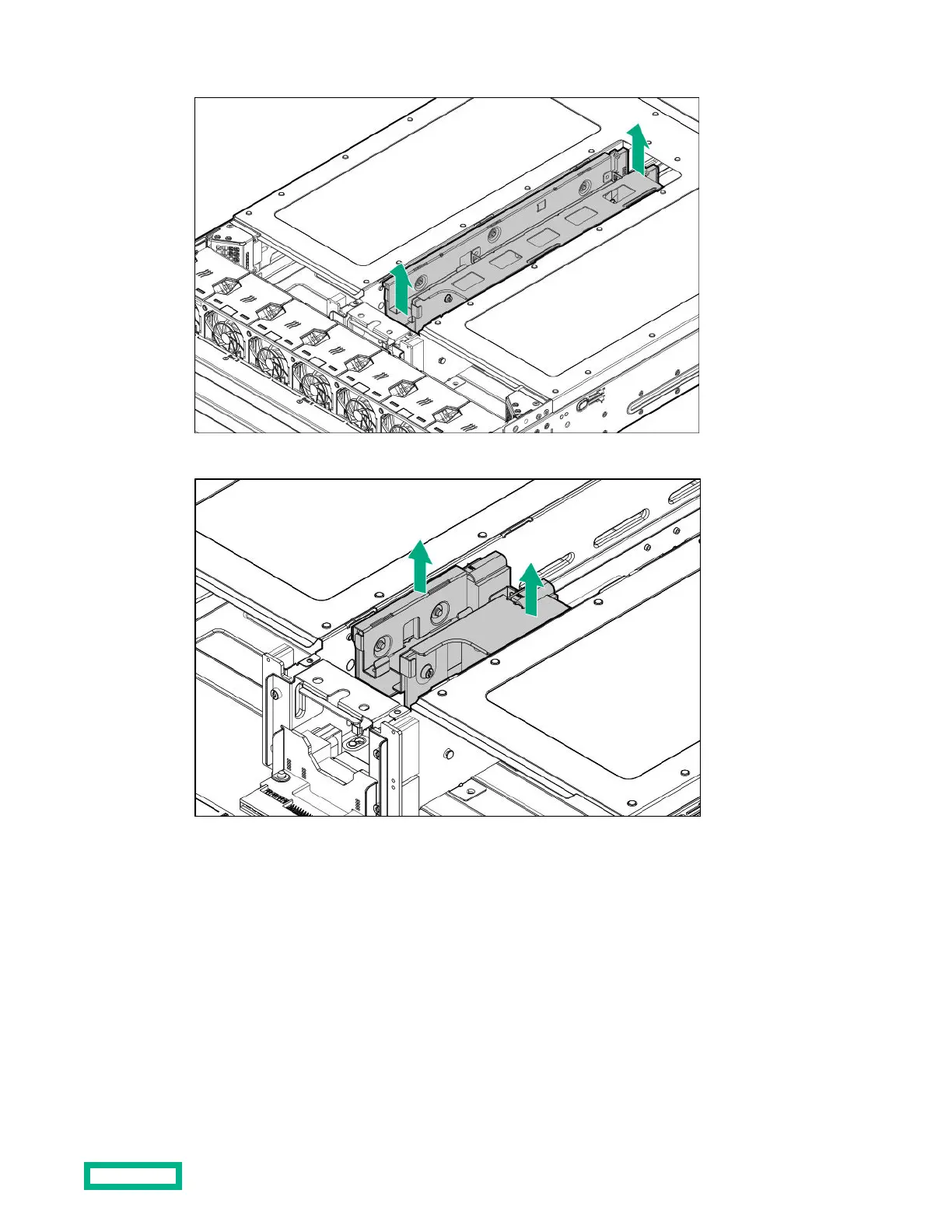

PIB assembly for Flexible Slot power supplies
•
PIB assembly for Performance power supplies
10.
Remove the PIB from the bracket.
•
PIB for Flexible Slot power supplies
Removal and replacement procedures
55
54
56
Table of Contents
Table of Contents
3
Illustrated Parts Catalog
6
Mechanical Components
6
Rack Rail Spare Kit
6
SFF Drive Blank Spare Part
6
System Components
6
Fan Board Spare Part
7
Power Backplane Spare Part
7
Power Distribution Board Spare Part
8
Power Interface Board Spare Parts
8
Power Supply Spare Parts
8
Fan Spare Part
8
System Interconnect Assembly Spare Part
8
Bezel Ear Assembly Spare Parts
9
System Cable Spare Kit
9
Chassis Options
9
Drive Backplane Spare Parts
10
Energy Pack Spare Part
10
RCM Board Spare Part
10
Customer Self Repair
11
Removal and Replacement Procedures
20
Safety Considerations
20
Electrostatic Discharge
20
Symbols on Equipment
20
Rack Warnings and Cautions
21
Server Warnings and Cautions
22
Preparation Procedures
24
Power down the Server
24
Remove the Hot-Plug Drive
24
Remove the Power Supply
25
Remove the Server Blank
26
Disconnect the Tube Set
27
Remove the Server
27
Extend the Chassis from the Rack
28
Remove the Chassis from the Rack
29
Remove the Access Panel
31
Install the Chassis into the Rack
32
Connect the Tube Set
34
Power up the Server
34
Removing and Replacing the Rack Rails
35
Removing and Replacing a Drive Blank
37
Removing and Replacing a Power Supply
38
Power Supply Warnings and Cautions
38
Remove and Replace an AC Power Supply
38
Removing and Replacing a Hot-Plug Drive
39
Removing and Replacing a Fan
40
Removing and Replacing a Drive Backplane Power Cable
41
Removing and Replacing the Fan Board
42
Removing and Replacing a Drive Backplane
44
Removing and Replacing the Bezel Ear Assembly
46
Removing and Replacing the System Interconnect Assembly
50
Removing and Replacing the Energy Pack
52
Removing and Replacing the PIB
54
Removing and Replacing the Power Backplane
56
Removing and Replacing the PDB
59
Removing the PDB
59
Replacing the PDB
62
Removing and Replacing the RCM Sideband Cable
65
Removing and Replacing the RCM Board
66
Removing and Replacing the APM Module Cable
68
Troubleshooting
71
NMI Functionality
71
Troubleshooting Resources
71
Diagnostic Tools
72
Product Quickspecs
72
UEFI System Utilities
72
Selecting the Boot Mode
72
Secure Boot
73
Launching the Embedded UEFI Shell
73
Ilo Service Port
74
Intelligent Provisioning
74
HPE Insight Remote Support
75
HPE Infosight for Servers
75
USB Support
76
External USB Functionality
76
HPE Smart Storage Administrator
76
Component Identification
77
System Components
77
Front Panel Components
77
Information Pull Tab
79
Front Panel Leds and Buttons
79
Front Panel LED Power Fault Codes
81
Chassis UID LED
81
UID Button Functionality
81
Rear Panel Components
82
Rear Panel Leds and Buttons
83
Server Node Numbering
83
Server Node Orientation
84
Drive Configurations
84
Node-To-Drive Association
84
Drive Numbering
85
HPE Smart Carrier Drive Leds and Components
85
Fan Numbering
87
Fan Board Connectors
88
Power Backplane-Distribution Board Components
88
Cabling
89
Cabling Guidelines
89
Front I/O Cabling
90
Drive Backplane Cabling
91
N2600 8 SFF U.3 Drive Backplane Cabling
91
N2600 24 SFF Basic Drive Backplane Cabling
92
Energy Pack Cabling
93
APM Module Cabling
93
RCM Sideband Cabling
94
Specifications
95
Environmental Specifications
95
Mechanical Specifications
95
Power Supply Specifications
96
HPE 1600 W Flex Slot Platinum Hot-Plug Low Halogen Power Supply
96
HPE 1800 W-2200 W Flex Slot Platinum Hot-Plug Power Supply
97
HPE 3000 W 200-277 VAC Platinum Hot-Plug Power Supply
97
Websites
99
Support and Other Resources
100
Accessing Hewlett Packard Enterprise Support
100
Accessing Updates
100
Remote Support
101
Warranty Information
101
Regulatory Information
101
Documentation Feedback
102
