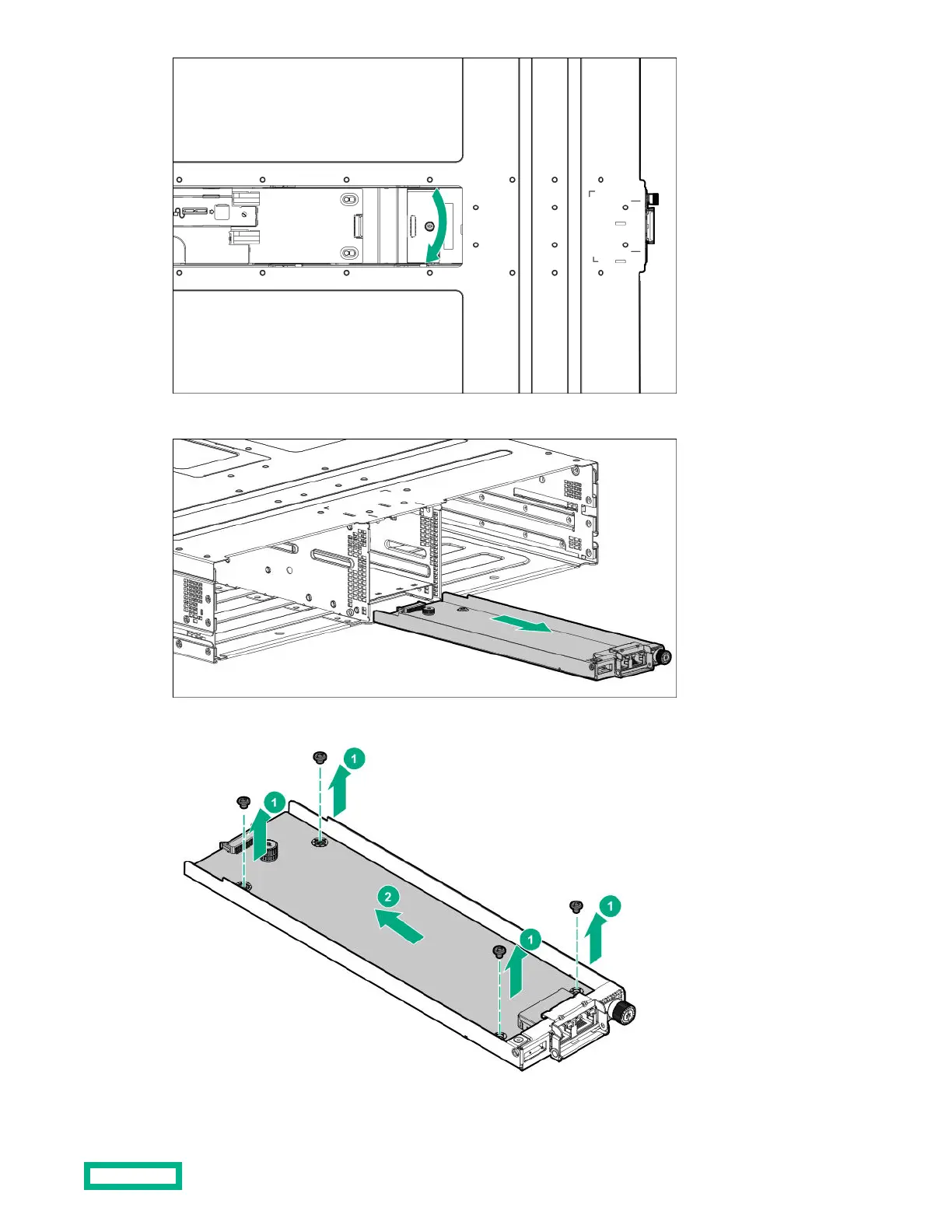

10. Slide the RCM module out of the bay.

11.

Remove the RCM board screws (callout 1), and then remove the board (callout 2).

Removal and replacement procedures
