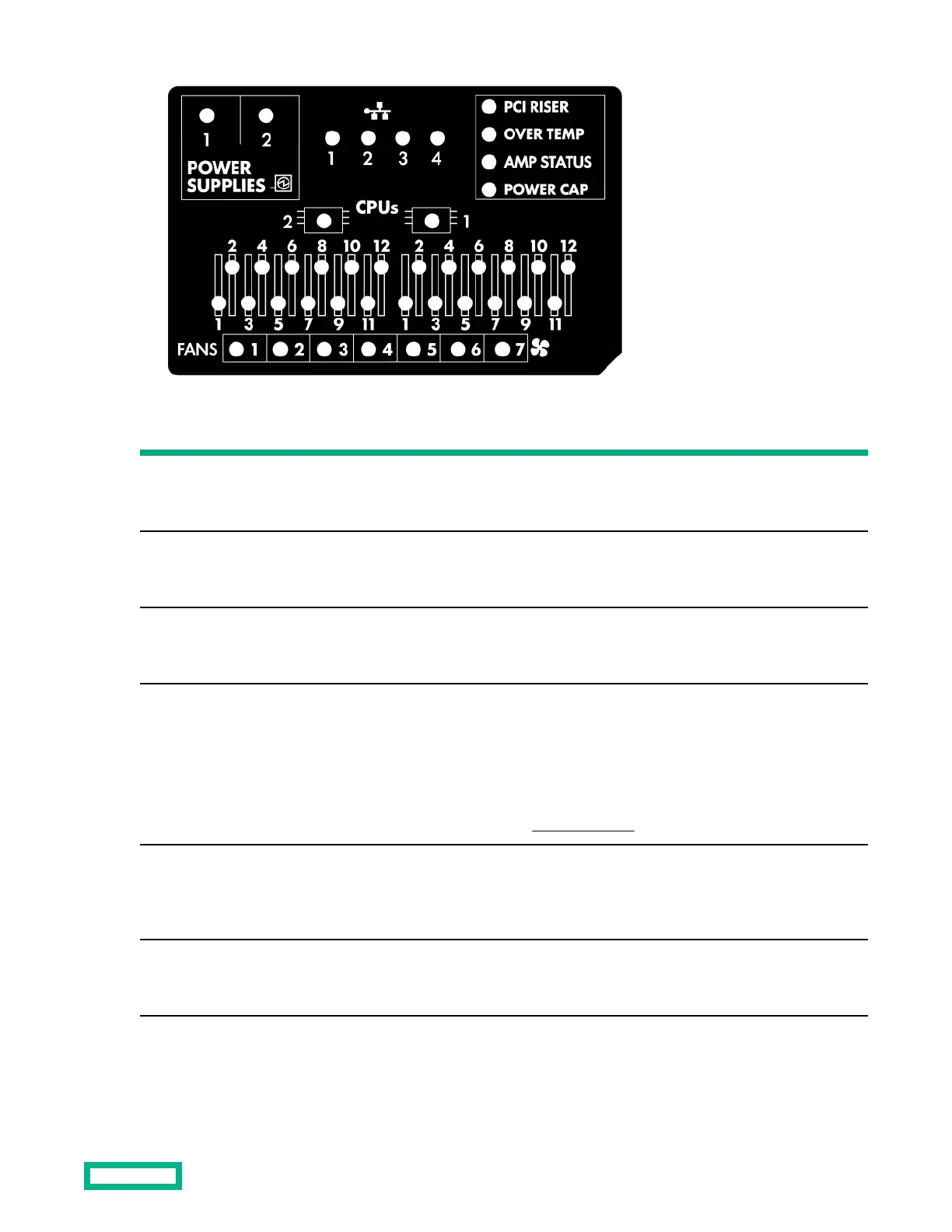

Description Status
Processor LEDs
O = Normal
Amber = Failed processor
DIMM LEDs
O = Normal
Amber = Failed DIMM or configuration issue
Fan LEDs
O = Normal
Amber = Failed fan or missing fan
NIC LEDs
1
O = No link to network
Solid green = Network link
Flashing green = Network link with activity
If power is o, the front panel LED is not active. For status,
see Rear panel LEDs.
Power supply LEDs
O = Normal
Solid amber = Power subsystem degraded, power supply
failure, or input power lost.
PCI riser LED
O = Normal
Amber = Incorrectly installed PCI riser cage
Table Continued
