Installing an energy pack in 8 SFF and 4 LFF configurations
Prerequisites
Before installing this option, be sure you that have the components included with the hardware option kit.
Procedure
1. Power down the server (
Power down the server).
2. Remove all power:
a. Disconnect each power cord from the power source.
b. Disconnect each power cord from the server.
3. Do one of the following:
a.
Extend the server from the rack.
b.
Remove the server from the rack.
4.
Remove the access panel.
5.

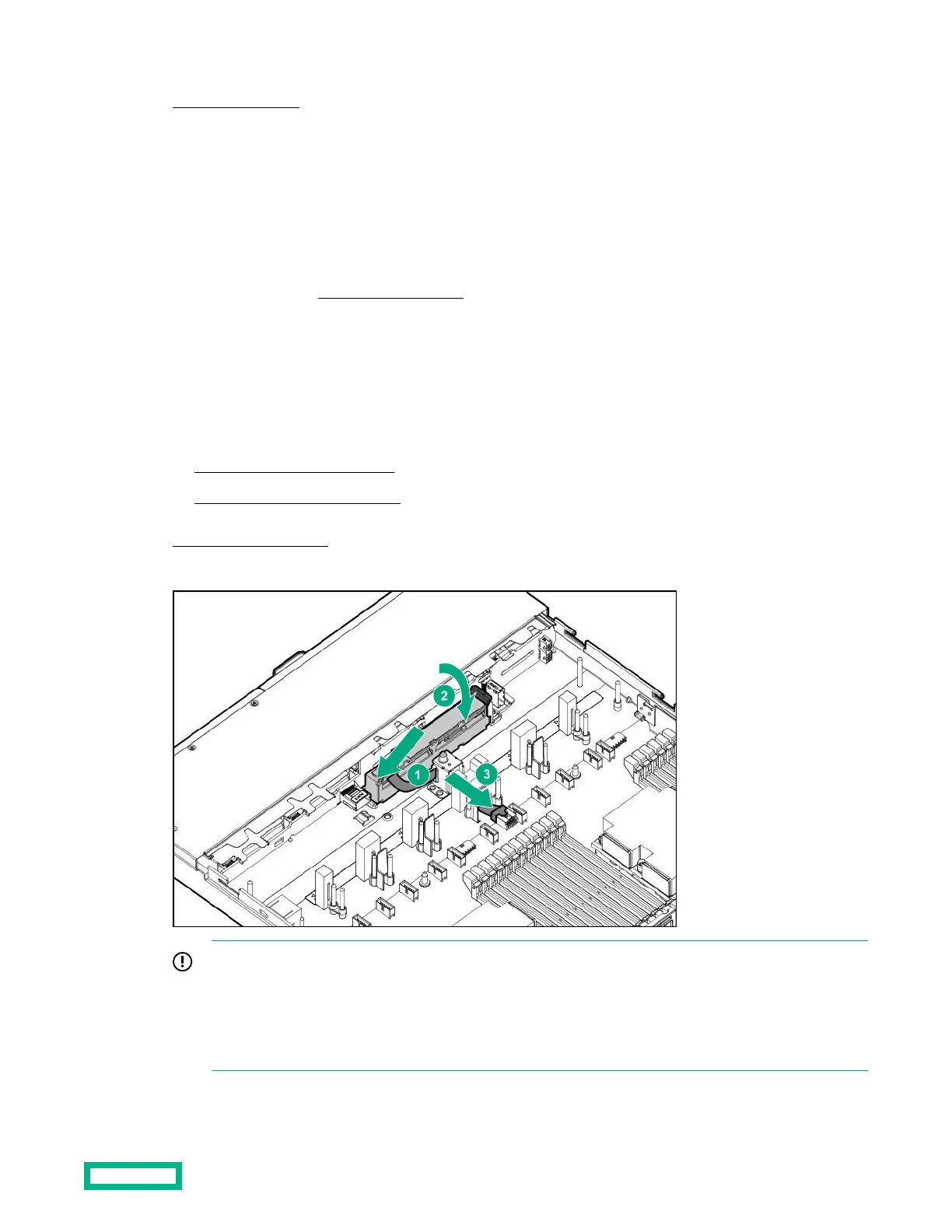

Install the energy pack and connect the energy pack cable.
IMPORTANT: To enable SmartCache or CacheCade in a P-class type-p Smart Array controller, you must:
• Connect the controller backup power cable to the controller backup power connector on the system or
riser board.
• Connect the energy pack cable to the energy pack connector on the system board.
Hardware options installation 140
