Hardware options installation 36
a.

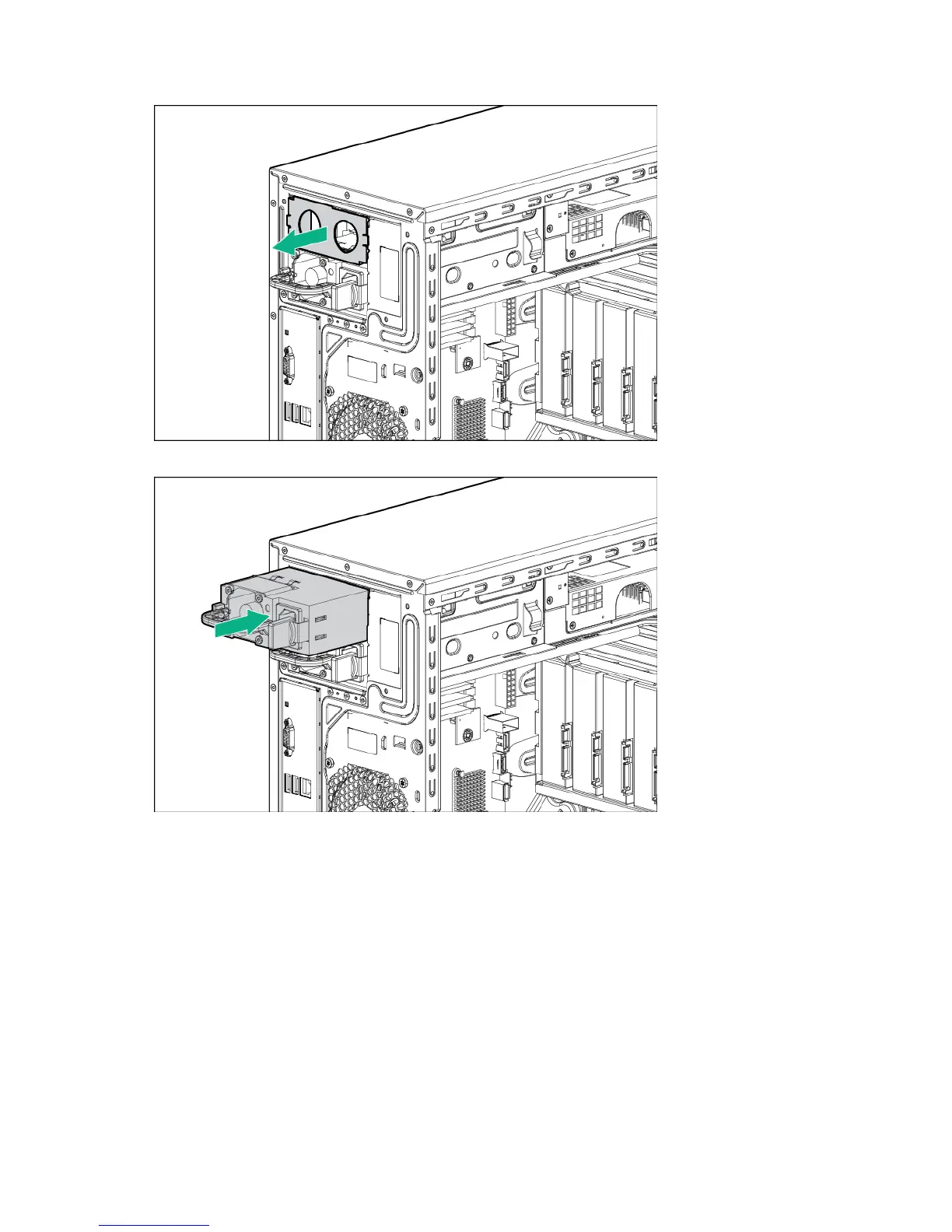

Remove the blank from the upper bay.
b. Install a second power input module into the upper bay.
14. Connect the power supply cables.
a. 24-pin power cable to the system board
b. 4-pin power cable to the system board
c. 10-pin to 8-pin power cable to the drive cage backplane or non-hot-plug drive cable
d. RPS cable to the system board
