USB port PCA
WARNING! ESD sensitive component.
1. Before proceeding, remove the following components:
●
DIMM cover. See
DIMM cover and DIMM on page 57.
●
Formatter cover. See
Formatter cover and formatter PCA on page 60.
●
Top-right cover. See
Top-right cover on page 73.
●
Control panel. See
Control panel on page 74.
●
Front-right and right-side cover assembly. See
Front-right and right-side cover assembly
on page 76.
2. Release the wire harness (callout 1) from the retainers (callout 2).

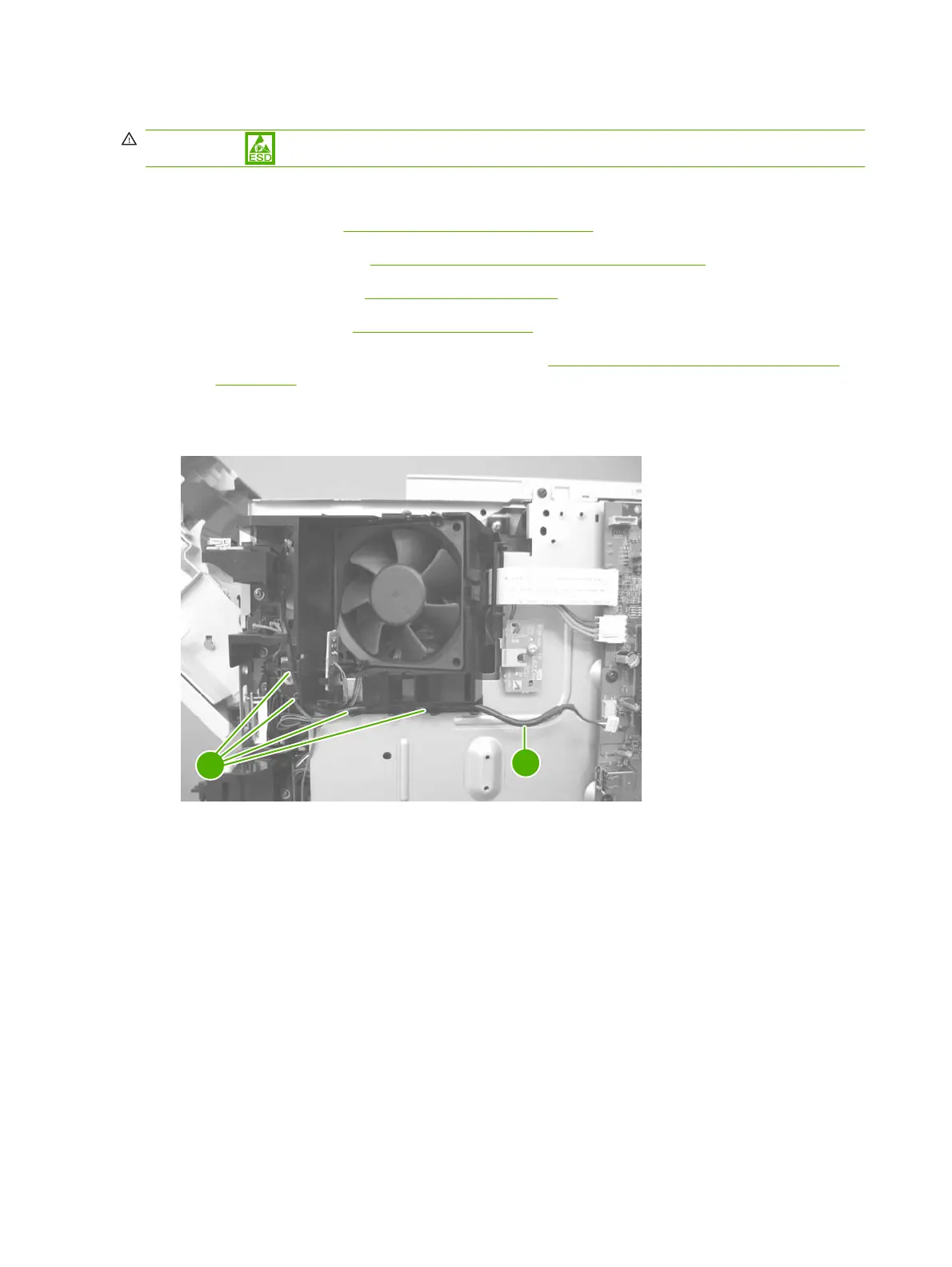

Figure 2-73 Remove the USB port PCA (1 of 3)
2
1
