Locations of major components

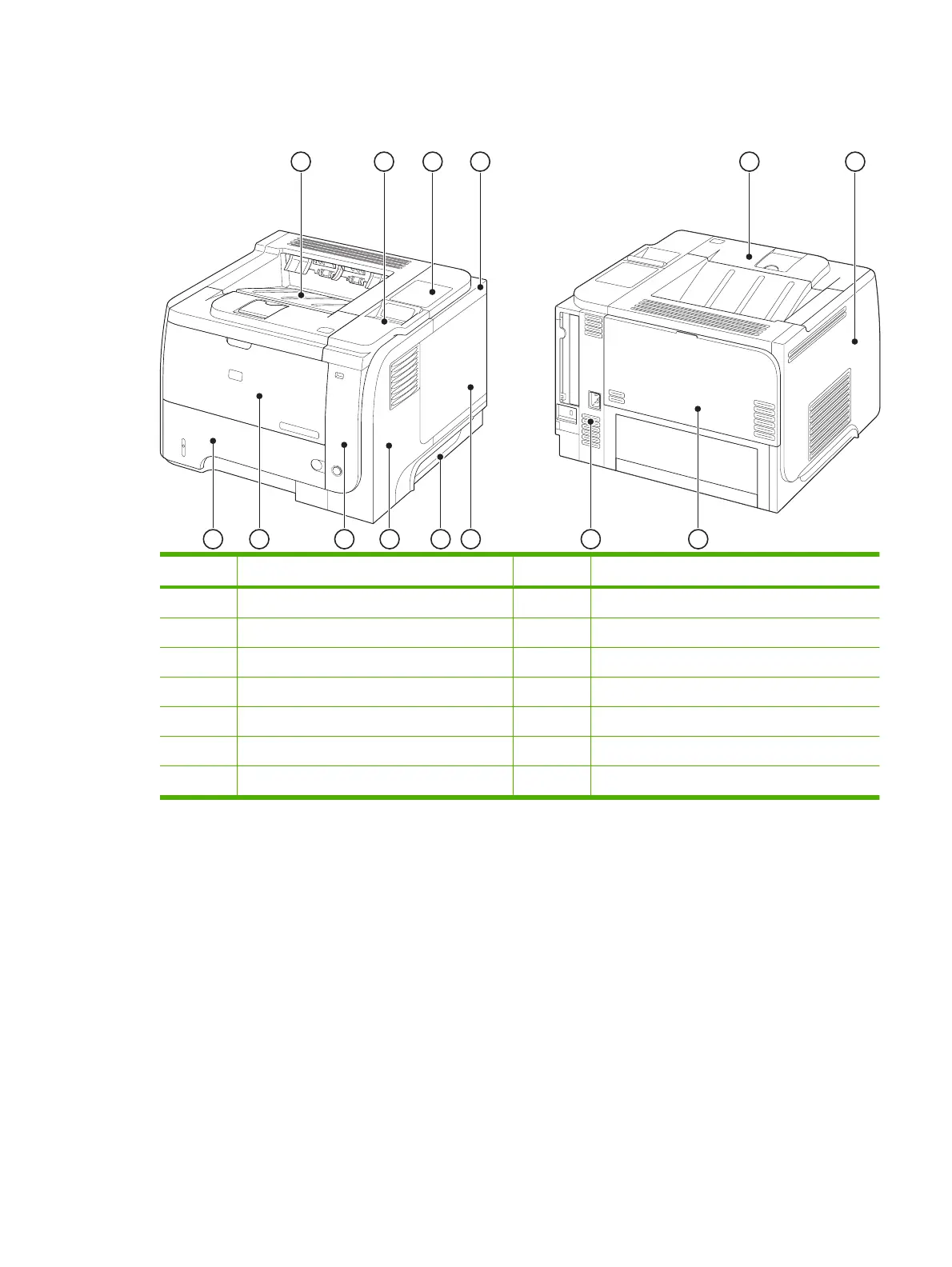

Figure 3-25 External component locations
11
12
13
14
1
2
3
4
5
6
7
8
9
10
Item Description Item Description
1 Top cover 8 Right-rear cover
2 Control panel 9 DIMM cover
3 Top-right cover 10 Lower-right cover
4 Formatter cover 11 Right cover
5 Cartridge-door assembly 12 Front-right and right-side cover assembly
6 Left cover 13 Tray 1 (multipurpose tray)
7 Rear-door assembly 14 Cassette (Tray 2)
